B. Supplementary summary of components
B−12
Festo P.BE−VTSA−44−EN en 0509NH
4. Insert the fastening screws in the appropriate holes.
Tighten the screws in the sequence 1, 3, 4, 2
(see following diagram) at first slightly and then with
3.0Nm.
2
1
3
4

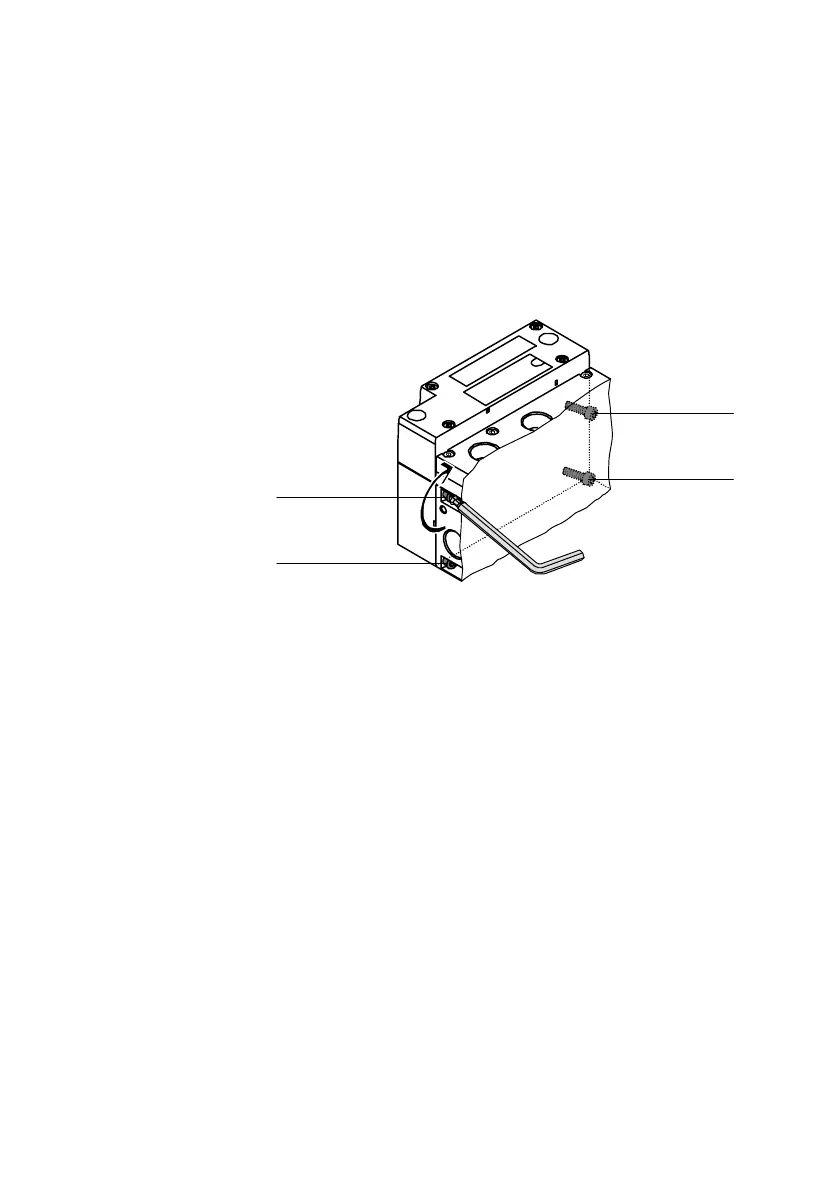

Fig.B/4: Fastening the VTSA valve terminal to the
pneumatic interface
5. Fasten the valve terminal onto the fastening surface
(see CPX system manual).
6. Complete the electrical and pneumatic connections of the
VTSA valve terminal with CPX terminal. Information on
this can be found
in the electrics section of the CPX system manual
in the pneumatics section
in chapter 3 of this manual.
