1. Summary of components
1−26
Festo P.BE−VTSA−44−EN en 0509NH
You will find the following electrical connecting and display
elements on the VTSA valve terminal with multipin node
cageclamp:
1
2
3
4
5
1 Cover
2 Yellow LEDs: signal status display of
the pilot solenoids
3 M23 round plug as per CNOMO
E03.62.530.N
4 External earth connection
5 Inscription field

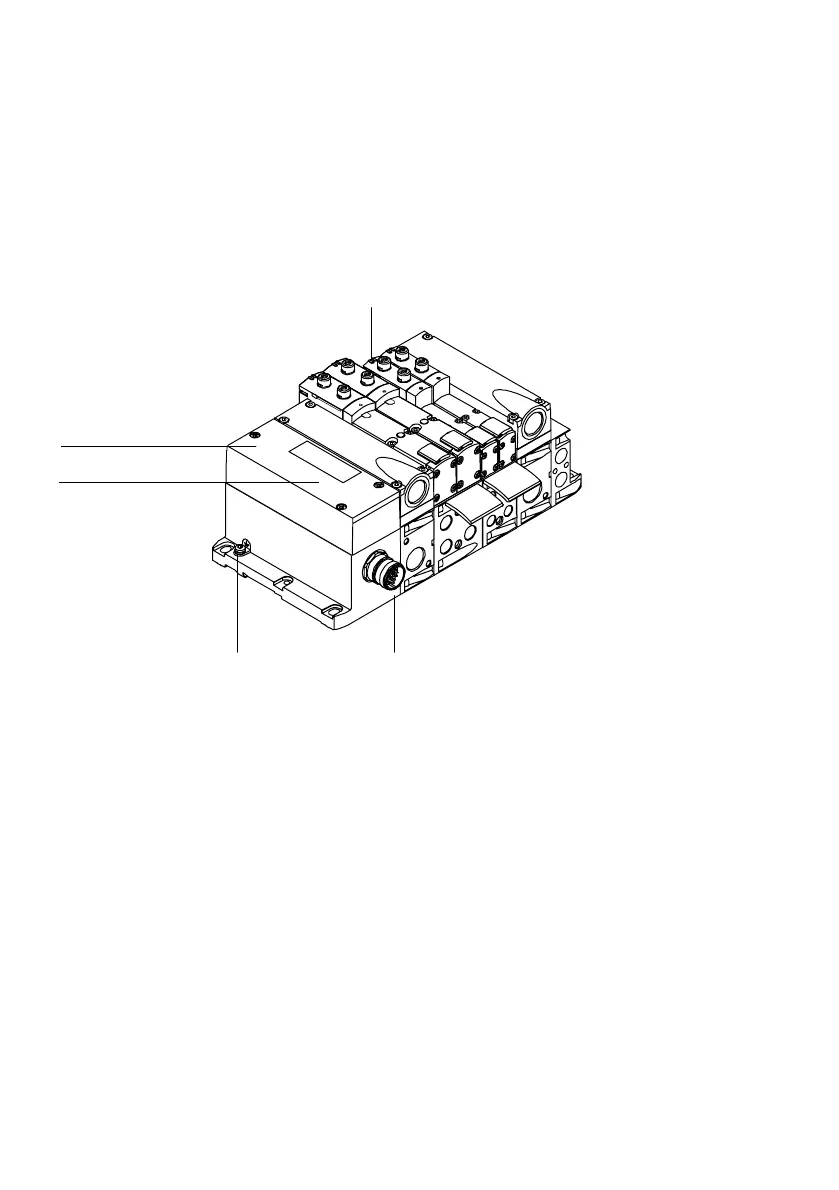

Fig.1/12: Electrical connecting and display elements of the VTSA valve terminal with
multipin node M23 round plug
