2. Fitting
2−14
Festo P.BE−VTSA−44−EN en 0509NH
2.4 Fitting/removing the manual override caps (optional)
You can modify the function of the manual overrides with
cover caps.
Cover cap, not visible With this cover cap you can protect the manual overrides
against unintentional operation.
Cover cap, non−locking The locking/non−locking function of the manual override can
be converted to an only non−locking function with this cover
cap.
Fitting Proceed as follows:
1. Make sure that
the relevant manual overrides are in a
non−actuated state. If necessary, set locking manual
overrides to the basic position (see chapter 4, Tab.4/5).

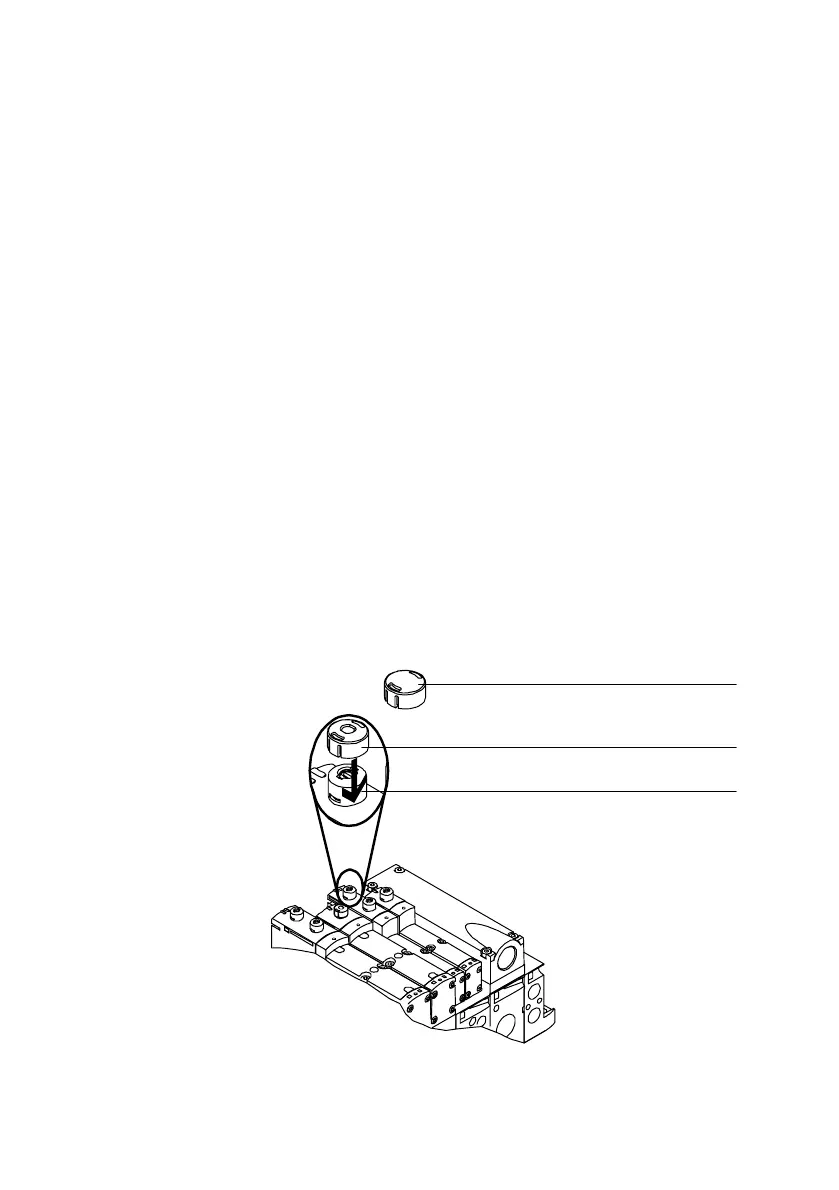

2. Clip the cover caps into the recesses of the manual
overrides (see fig.):
1 Manual override
cover cap
(manual override
without function)
2 Manual override
cover cap
(manual override
only non−locking
function)
3 Manual override
2
1
3
Fig.2/5: Fitting the manual override cover caps
