FIBOCOM SU806 Series Hardware Guide Page 16 of 91
2.4 Pin Definition
2.4.1 Pin Assignment

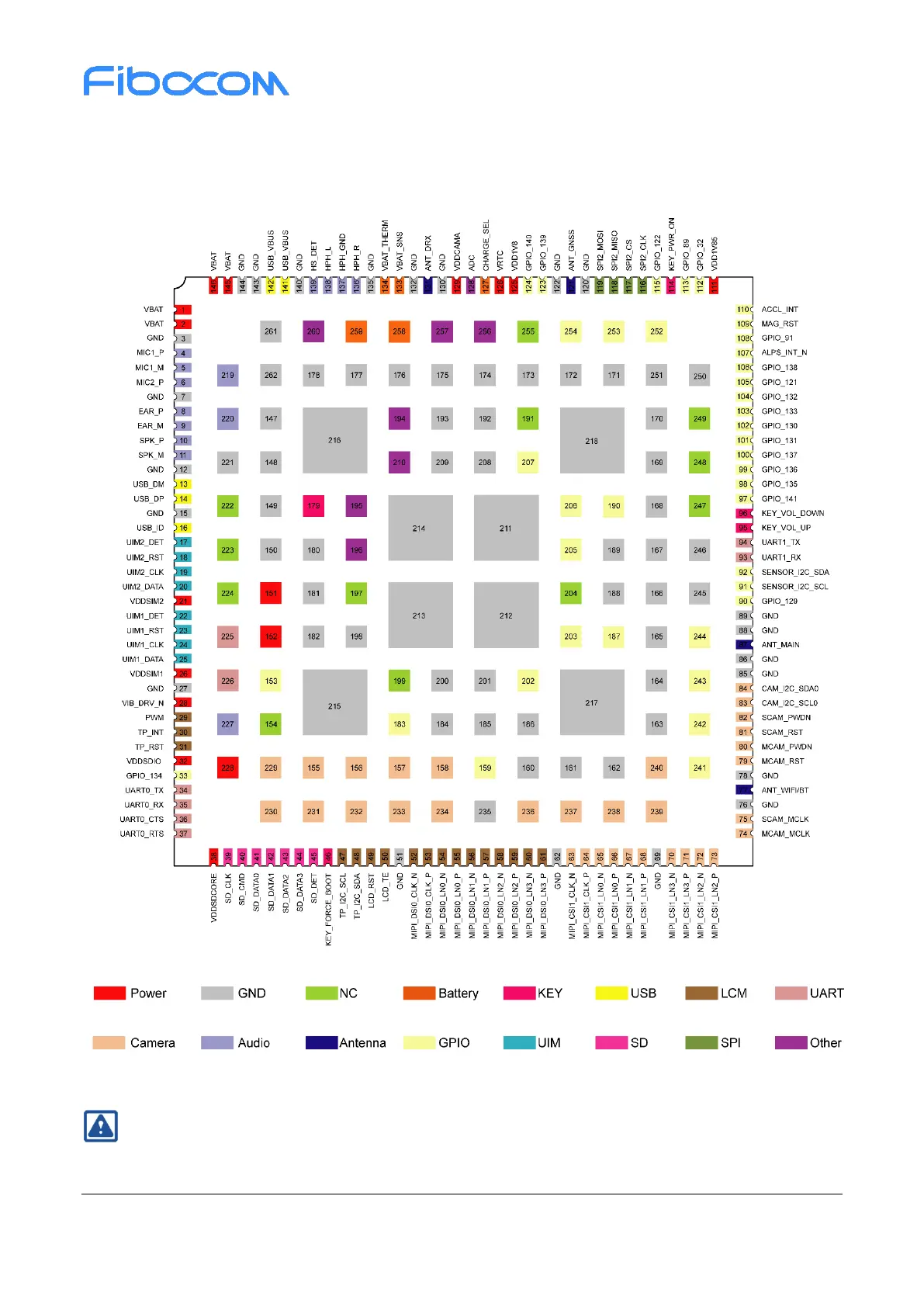

Figure 2-2 Pin assignment (top view)
Note:
“NC” represent No Connect, the pin of this position is reserved and does not need to be connected.
