3.12 Battery Power Supply Interface
SU806 series module just support circuit modes coulomb counter fuel gauge, if use coulomb counter IC
externally, please connect SENSE_P and SENSE_N pin to GND.
Table 3-16 Battery power supply pin definition
Pin Name
Pin Num
I/O
Description
Note
CHARGE_SEL
127
DI
Charge modes select
Reserved
VBAT_SNS
133
AI
Battery voltage sense
-
VBAT_THERM
134
AI
Battery thermal detect input
NTC resistor is 47K
SENSE_N
258
AI
Battery fuel gauge negative input
Reserved
SENSE_P
259
AI
Battery fuel gauge positive input
Reserved

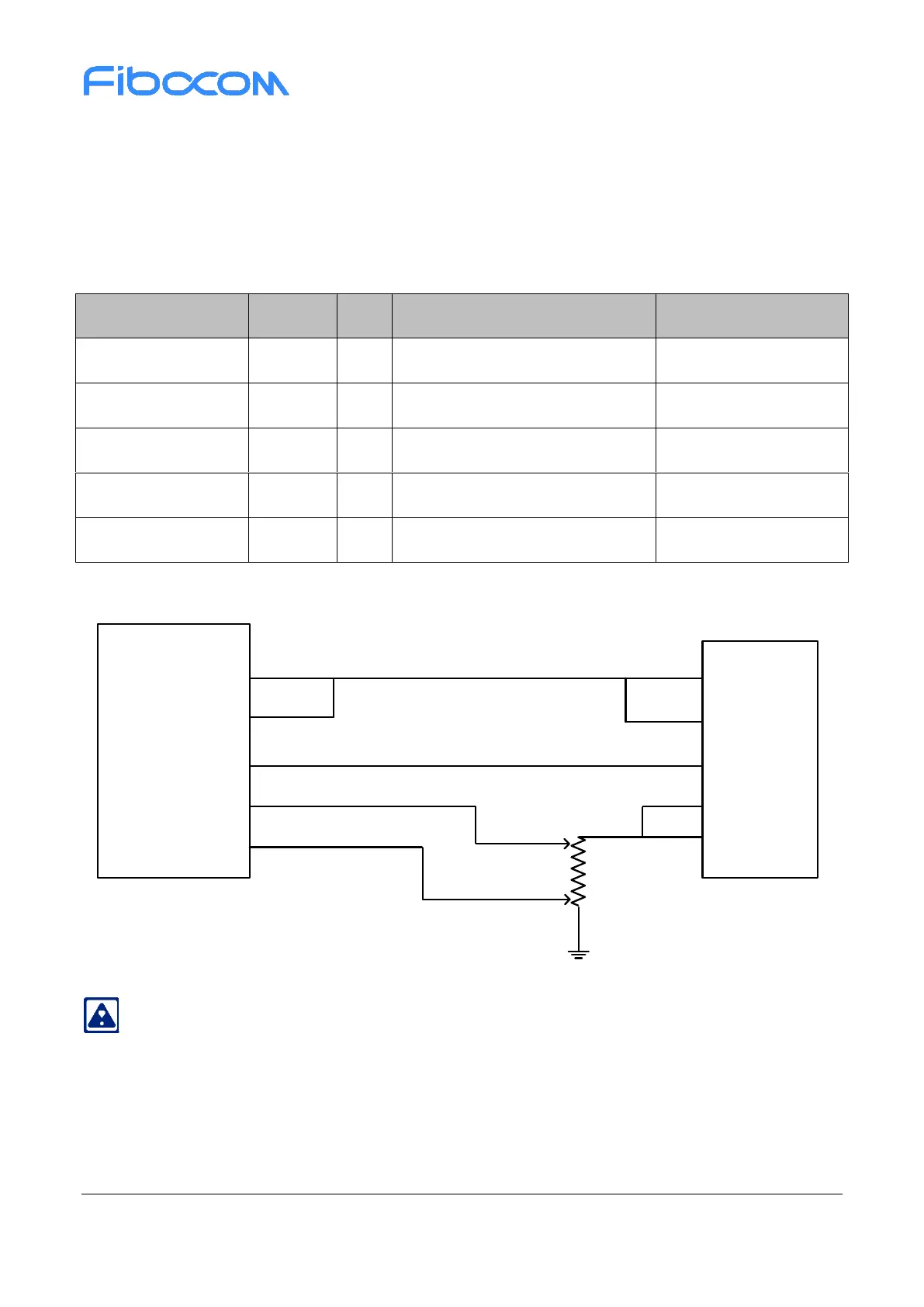

Fuel gauge reference design is shown in the following figure:
VBAT
VBAT_SNS
Module
VBAT_THERM
SENSE_P
SENSE_N
GND
Battery Connector
VBAT
THERM
GND
20mΩ±1%
Figure 3-14 Fuel gauge reference design
Trace routing of SENSE_P and SENSE_N should follow differential rule.
The impedance of VBAT_SNS pin varies with the use scenario, if VBAT_SNS not connect with
battery directly, recommend add isolators between VBAT_SNS pin and battery.
