FIBOCOM SU806 Series Hardware Guide Page 45 of 91
Pin Name
Pin
Number
I/O
Description
Note
MIPI_DSI0_LN1_P
57
AO
MIPI display serial interface Lane 1+
-
MIPI_DSI0_LN2_N
58
AO
MIPI display serial interface Lane 2-
-
MIPI_DSI0_LN2_P
59
AO
MIPI display serial interface Lane 2+
-
MIPI_DSI0_LN3_N
60
AO
MIPI display serial interface Lane 3 -
-
MIPI_DSI0_LN3_P
61
AO
MIPI display serial interface Lane 3 +
-
LCD_RST
49
DO
LCD reset
-
PWM
29
DO
LCD backlight PWM
-
LCD_TE
50
DI
LCD tearing effect
Keep floating if
unused
GPIO_25
190
DO
LCD backlight enable
-

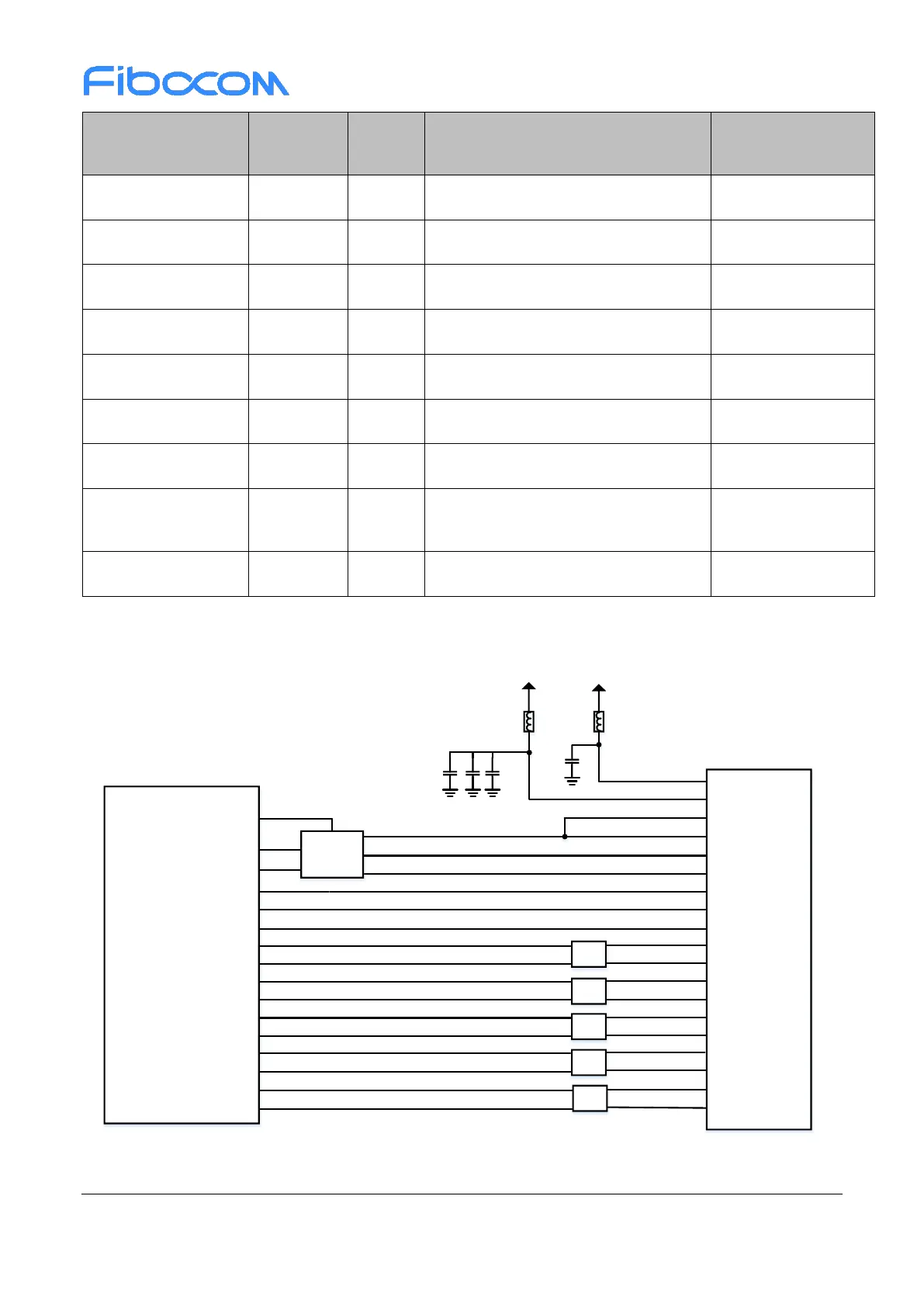

The reference design of LCD interface circuit is shown as follows:
Module
MIPI_DSI_LN3_P
LCD_RST
MIPI_DSI_LN3_N
MIPI_DSI_LN2_P
MIPI_DSI_LN2_N
MIPI_DSI_LN1_P
MIPI_DSI_LN1_N
MIPI_DSI_CLK_P
MIPI_DSI_CLK_N
MIPI_DSI_LN0_P
MIPI_DSI_LN0_N
CAM Connector
MIPI_D3P
LED_K1_N
MIPI_D3N
MIPI_D2P
MIPI_D2N
MIPI_D1P
MIPI_CLKP
MIPI_CLKN
LCM Connector
LED_K2_N
LCD_RST_N
LCDTE
MIPI_D1N
MIPI_D0P
MIPI_D0N
VDD2V8
LED_A2_P
LED_A1_P
PM_2V85
VDD1V85
PM_1V8
LCD_TE
DCDC
LCD_BL_EN
LCD_PWM
100nF
100nF
100nF
2.2uF
GPIO LCD_ID
VABT
EMI
EMI
EMI
EMI
EMI
Figure 3-15 LCM reference design
