Fiery E100 - FIGURE 8: Exploded View

COMPONENTS 23

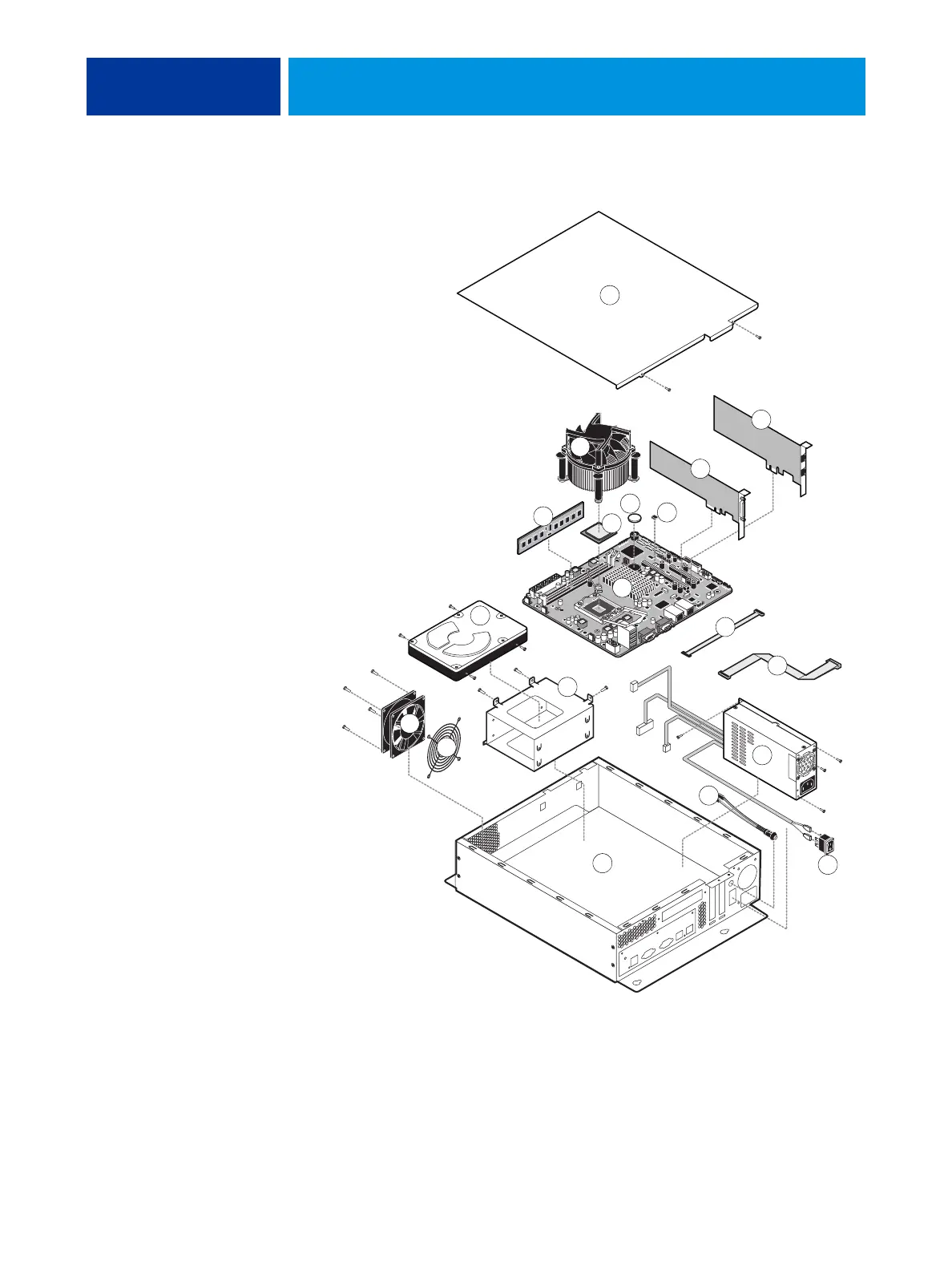

FIGURE 8: Exploded view
Key
1. Chassis cover
2. Network switch board
3. Copier interface board
4. CPU cooling assembly
5. DIMM (1 GB)
6. CPU (2.66 GHz)
7. Battery
8. Security chip
9. Motherboard
10. 160GB SATA HDD
(hard disk drive)
11. HDD bracket
12. Enclosed fan
13. Enclosed fan guard
14. HDD SATA data cable
15. Riser/LED board cable
16. Power supply
17. Power switch
18. Power button
19. Chassis
5
1
9
6
15
19
7
14
13
16
4
17
18
2
3
11
12
8
10
