3.0 SYSTEM COMPONENTS
UL S2203 Cheetah Xi 50 Installation Manual 3-1
FM P/N: 06-369 Rev 6, 09/2015
3.1 BASIC EQUIPMENT PACKAGES
The Cheetah Xi 50 system includes the equipment
enclosure, control board, power transformer, and
necessary mounting hardware. Components such as
the cabinet color, transformer power requirements, and
cabinet requirements are custom configured to suit your
specific project requirements. Exhibit 3-2 shows the
available ordering options for the Cheetah Xi 50
equipment packages.
Cheetah Xi 50
10-071-c-p-d
Enclosure Color c:
Transformer Power p:
Enclosure Options d:
R = Red, B = Black
1 = 120V, 2 = 240V
d = enclosure with dead-front
panel
Exhibit 3-2: System Ordering Formats
Additional system components such as batteries, detectors, modules, cards, peripheral devices, etc. must be
ordered separately to suit your specific project requirements.
3.2 CHEETAH Xi 50 CONTROLLER
The heart of the Cheetah Xi 50 system is the controller
(See Exhibit 3-3). The system controller consists of a
printed circuit board (PCB) that incorporates the system
primary power supply with battery charger, system
microprocessors, hardware interface terminals, system
display and operational switches. The controller is the
central hub for communication between the systems
intelligent, addressable field devices that are connected
to the panel’s signaling line circuits. The controller is
also used for system timing, user interface, power
delivery and system history archive.

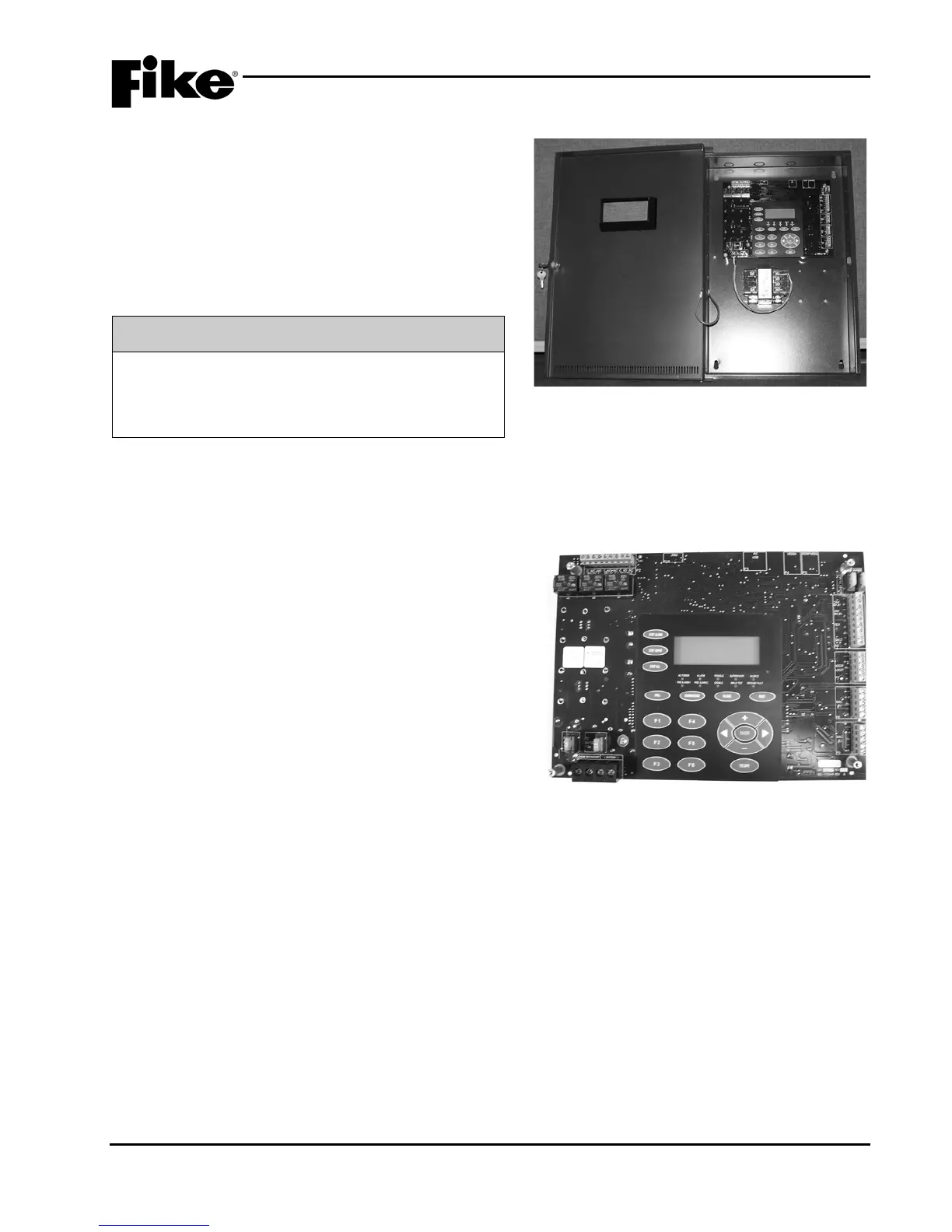

Exhibit 3-1: Cheetah Xi 50 System Package
Exhibit 3-3: Cheetah Xi 50 Controller
