3.0 SYSTEM COMPONENTS
3-22 Cheetah Xi 50 Installation Manual UL S2203
Rev 6, 09/2015 P/N: 06-369 FM
3.10 VESDA HIGH LEVEL INTERFACE, P/N 68-023

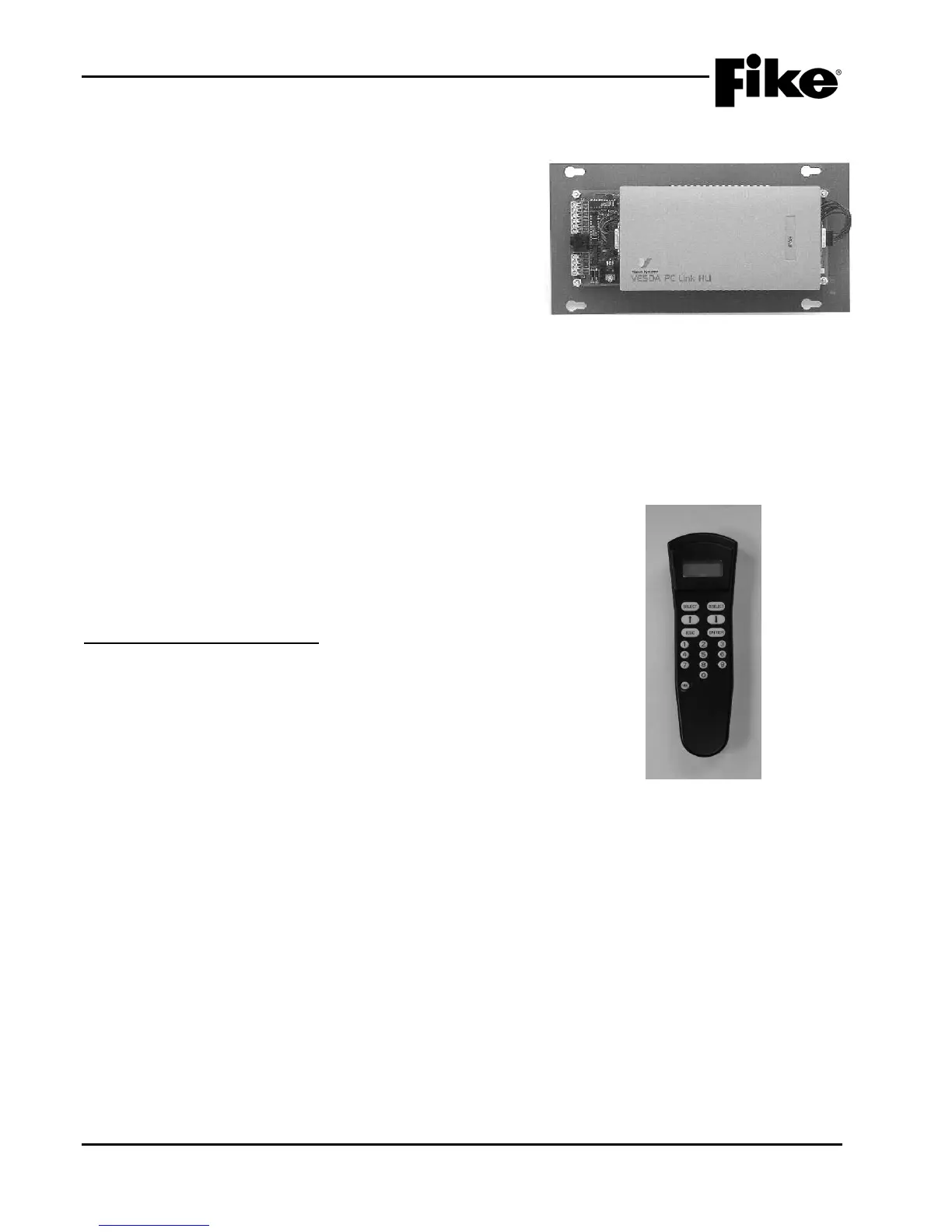

The VESDA HLI (See Exhibit 3-47) is a custom device that
provides an integrated interface between the CyberCat 50
panel and any VESDA detector(s) connected to the VESDA
net (40 detectors maximum), allowing bi-directional
communication. Communication between the control panel
and the HLI is made via the control panel’s RS232 peripheral
bus. It should be powered via the Cheetah Xi 50 panel’s
24VDC continuous auxiliary power.
Refer to Fike document 06-158 for more information.
3.11 PROGRAMMING AND CONFIGURATION EQUIPMENT
The items discussed in this section are not UL listed; however, one or more of these items can be used to
facilitate proper configuration of the Cheetah Xi 50 system.
3.11.1 IR REMOTE TOOL, P/N 55-051
The IR Remote tool (See Exhibit 3-48) is a hand-held remote control
that is designed to communicate with the panel and other devices
through any selected device on the loop. It can read device
information such as type, loop, address and sensitivity. It can also
write device information such as loop, address, branch and service
date and initiate device test. It features a 16-character liquid crystal
display and a 17-button keypad.
Features of the IR Remote Tool:
• Operates with 2 AA Batteries
• Communicates bi-directionally with any device
• Easily configure devices by setting the loop and address
• Quickly read sensitivity levels
• Easily test photo and ion detectors in the sub-floor, as well as duct
detectors
• Immediately record the date serviced
• Instantly perform a remote test of any detector or module, if
programmed for Walktest with IR
• Effortlessly complete a walk test as required
• Access and test hard-to-reach detector or module through any
device
Exhibit 3-48: IR Remote Tool
Exhibit 3-47: VESDA HLI
