3.0 SYSTEM COMPONENTS
3-2 Cheetah Xi 50 Installation Manual UL S2203
Rev 6, 09/2015 P/N: 06-369 FM

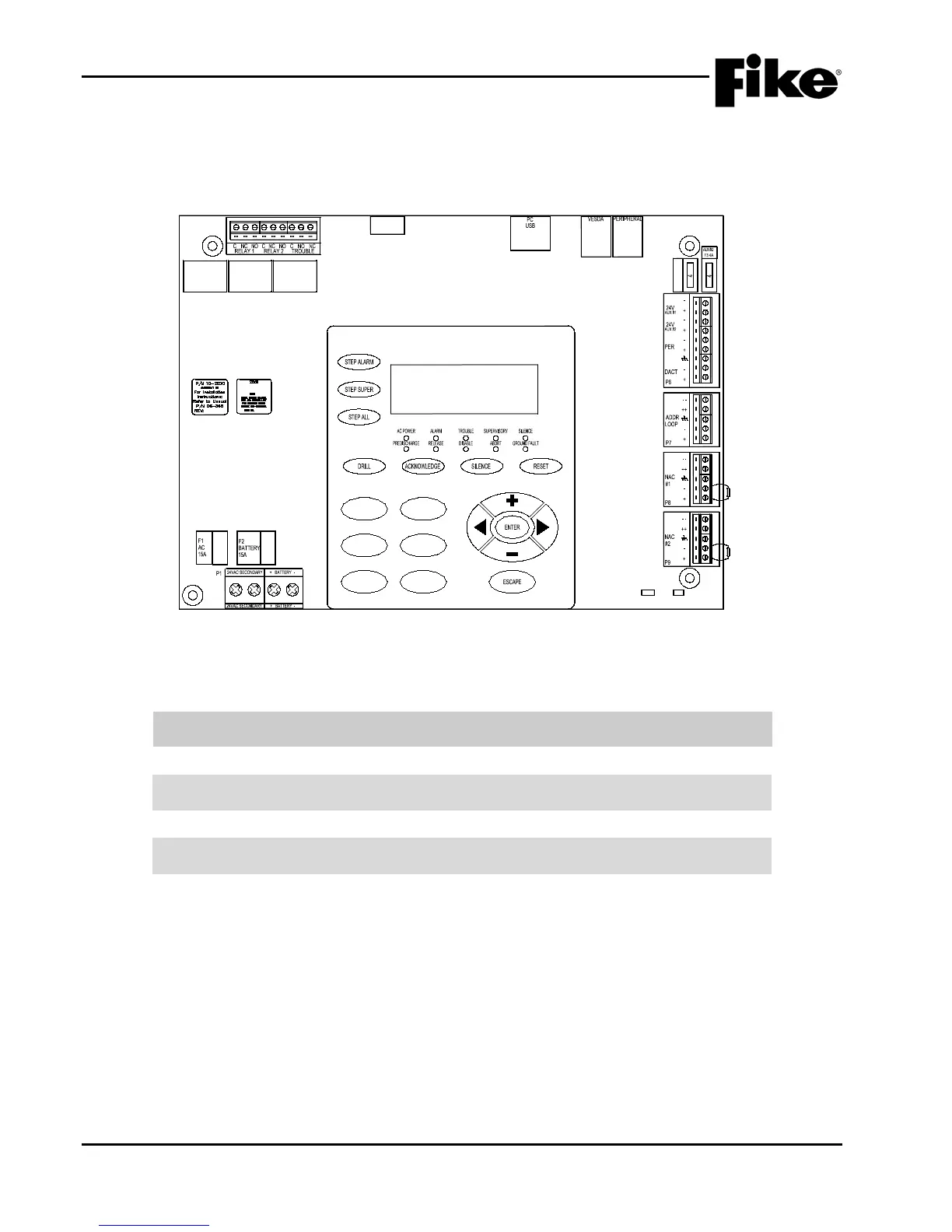

Exhibit 3-4 shows the location of the various connectors on the Cheetah Xi 50 controller board. The function
and specifications for each connection is listed in order of terminal block designation (P) on the following
pages.
Controller Specifications:
Controller Dimensions (HxWxD): 8 in. x 11 in. x 3 in.
(20.3 cm x 27.9 cm x 7.6 cm)
Weight: 1.0 lbs. (0.45 kg.)
Power Output: 2 Amps (Normal Standby)
5.25 Amps (Alarm)
Power Consumption: 116 mA (Normal Standby)
Operating Environment: +32°-120°F (0°-49°C)
93% relative humidity
K5 K6
K7
JTAG
P10
24V
P5
P4
AUX#1 F4 4A
P3
P2
10-2620 REV
02-11544 REV A
F1
F2
F3 F6
F5
F4
P10 P3 P4
P5
P2
P6
P7
P8
P9
P1
Exhibit 3-4: Cheetah Xi 50 Terminal Block Locations
