4.0 INSTALLATION
UL S2203 Cheetah Xi 50 Installation Manual 4-7
FM P/N: 06-369 Rev 6, 09/2015
4.9.3 INSTALL OPTIONAL DACT
If the optional DACT (P/N 10-2528) is to be installed within the Cheetah Xi 50 enclosure, it must be installed
prior to installing the control board (See Exhibits 4-6 and 4-7).
The following general steps shall be used to install the DACT into the back-box:
1. Locate the four threaded press studs provided in the enclosure back-box for mounting the DACT (See
Exhibit 4-6) and install the four hex stand-offs (.625, F/F #6-32) supplied with the DACT onto the
threaded press studs.
2. Align the mounting holes provided in the four corners of the DACT with the stand-offs and secure in
place using the four #6-32 screws supplied with the DACT (See Exhibit 4-7).
Refer to the installation instructions supplied with the DACT for specific installation instructions.
BACK-BOX
DACT
LINE 2
SYS TRBL
HEARTBEAT
LINE 1

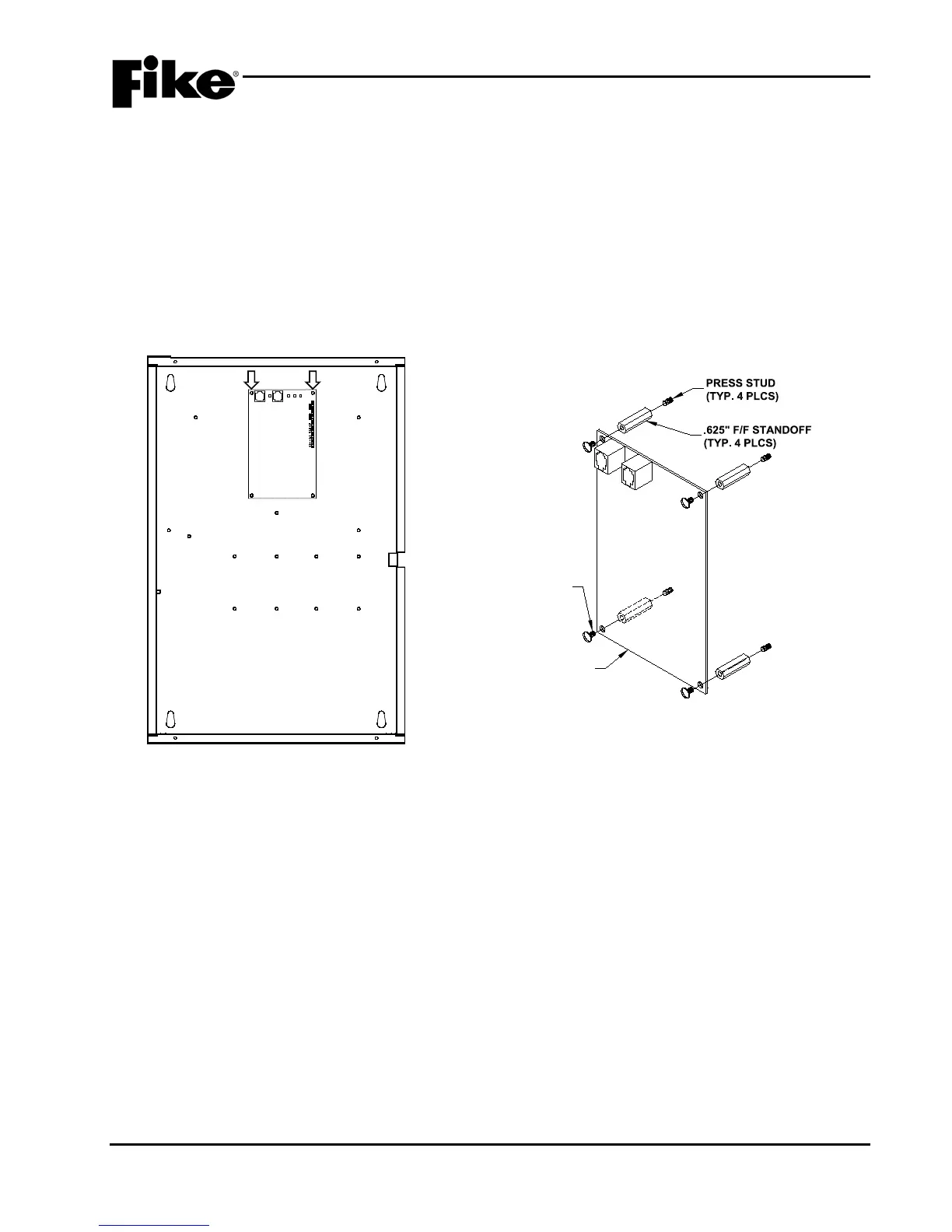

Exhibit 4-6: DACT Mounting Location
DACT CARD
6-32 SCREWS
(QTY. 4)
Exhibit 4-7: DACT Mounting
