3.0 SYSTEM COMPONENTS
3-12 Cheetah Xi 50 Installation Manual UL S2203
Rev 6, 09/2015 P/N: 06-369 FM
3.5.9 RELAY CARD, P/N 10-2785
The Relay Card (See Exhibit 3-22) provides twelve
(12) programmable relays integrated into a single
card. When added to the system, the relays can be
used to provide system status indication, control of
electrical loads, and general purpose switching.
Refer to Fike document 06-586 for more information.
3.5.10 CLASS A PERIPHERAL BUS CARD, P/N 10-2792
The Class A Peripheral Bus Card (See Exhibit 3-23)
provides a means of wiring the panel’s RS485 peripheral bus
and 24 VDC power output to the connected peripheral
devices in a Class A format.
The card can be mounted inside the Cheetah Xi 50
enclosure or it can be mounted remotely by ordering the
custom mounting enclosure.
Refer to Fike document 06-606 and 06-609 for more
information.

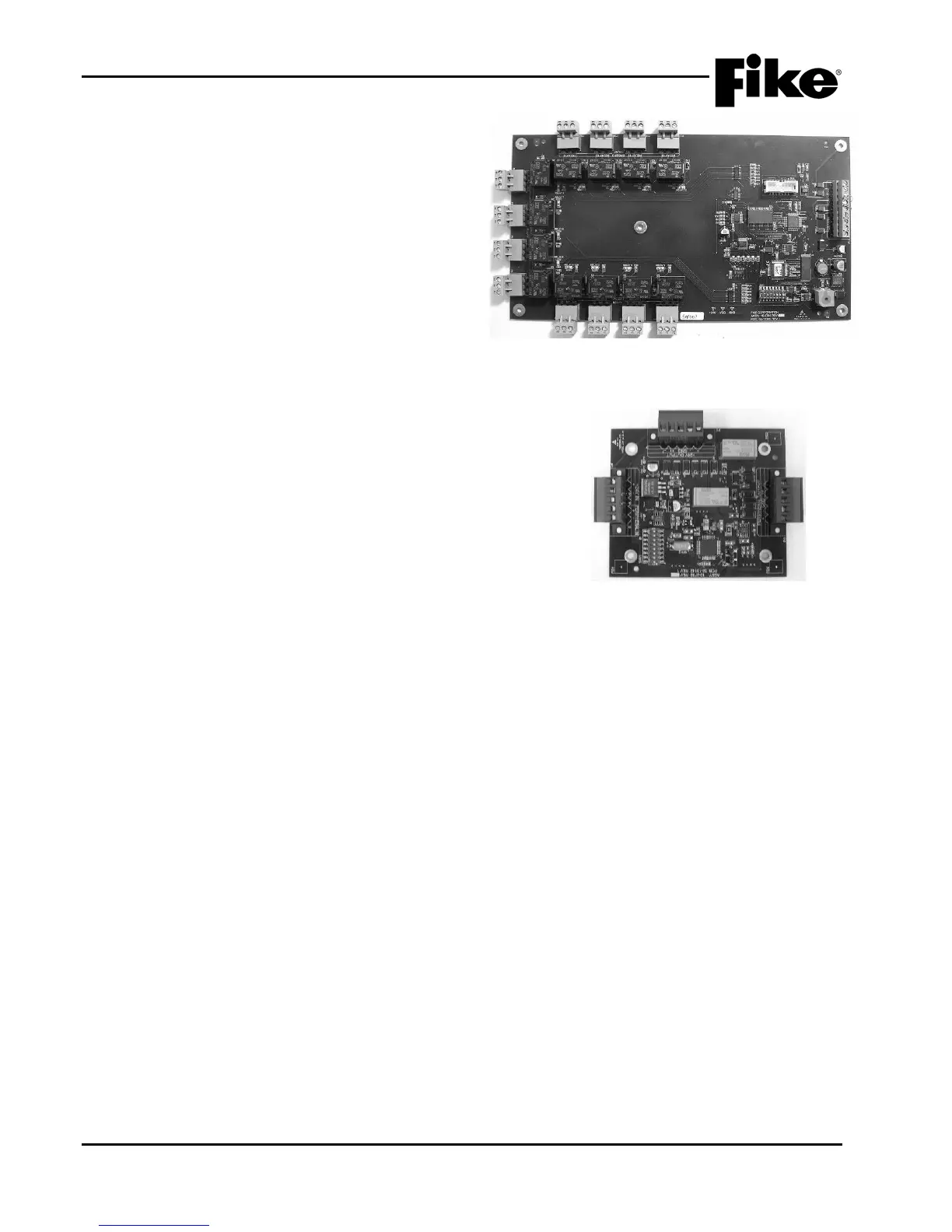

Exhibit 3-23: Class A Peripheral Bus Card
Exhibit 3-22: Relay Card
