Fisher & Paykel DD60DCHB7 Service Manual

15
2 SPECIFICATIONS
2.3 Plumbing Requirements
2.3.1 AA, GB, EU, DK, PF, SG Double Models
14
!5

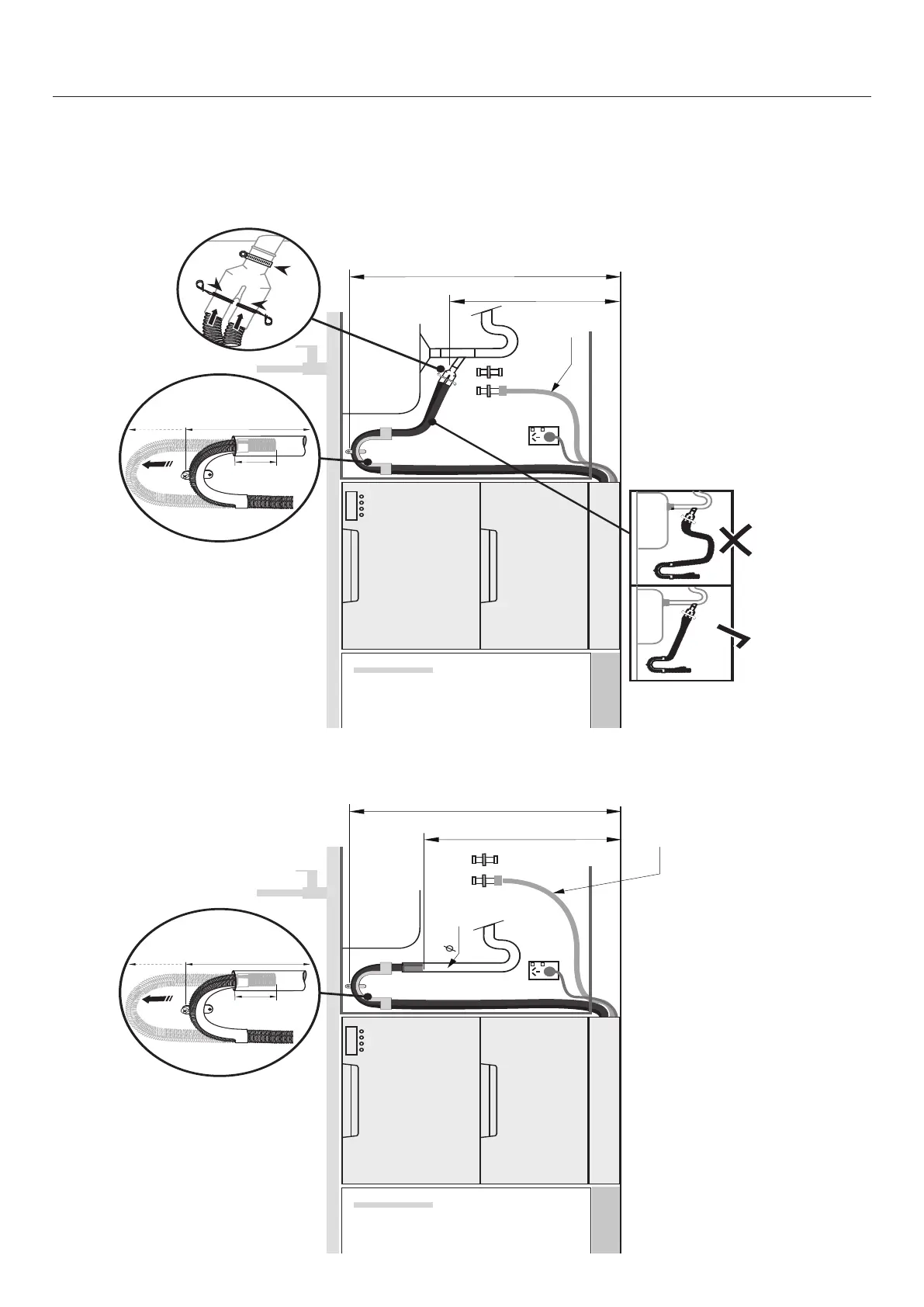

THERE ARE TWO DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE.
1
2
1
2
3
If space is limited
for fixing, push
hose through drain
hose support
to required height
If space is limited
for fixing, push
hose through drain
hose support
to required height
Dishwasher using drain hose joiner onto sink trap/waste tee
min. radius 200 mm
750 - 882.5 mm
750 - 882.5 mm
min. 500 mm
min. 500 mm
min. radius 200 mm
step 16
step 16
Supplied drain hose joiner to suit 19 mm waste tee
Ensure drain hose is routed straight to joiner. Remove excess drain hose material if necessary. Do not shorten the inlet hose.
Dishwasher and Ø 38 mm Standpipe
IMPORTANT! Do not connect the drain hoses to a Waste Disposal Unit, as this type of connection may lead to a blockage in the drain hoses.
750-882.5 mm
38mm
max.
120mm
