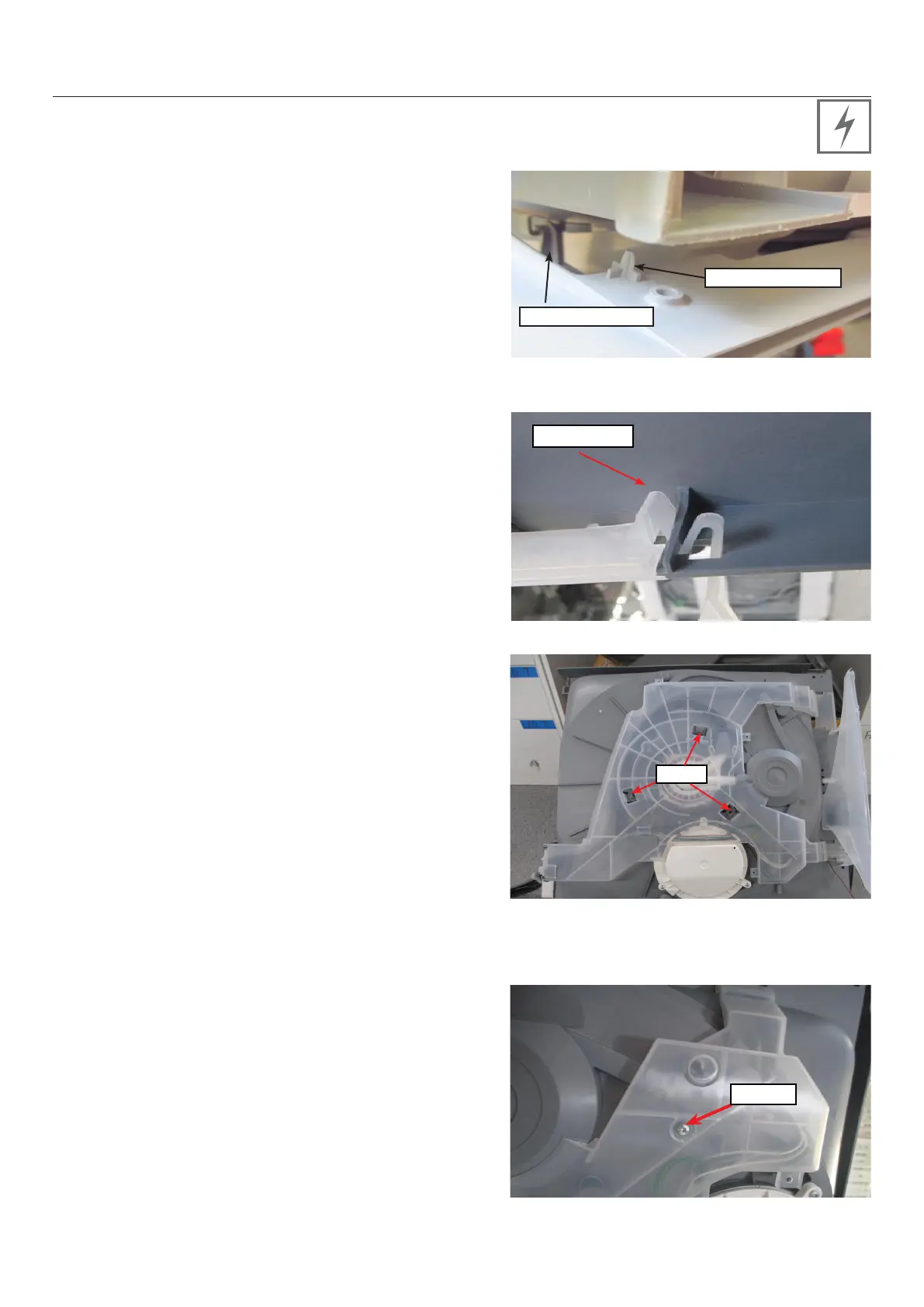

8 SERVICING PROCEDURES
8.16 Removing the wiring cover
1
Remove the tub as per instruction in section 8.13.
2
Remove the two torx screws retaining the wiring cover
to the tub.
3
Carefully release the four wiring cover front clips, two
on each side, from under the front lower section of
the tub. Take care not to damage them.
4
Release the three clips on the underside of the tub
that attaches the wiring cover to the motor assembly.
5
Lift the wiring cover up and pull forward to disengage
the rear locating pins.
6
To reassemble, first ensure that the wiring harness,
drain hoses and fill hose are located in their correct
positions
7
Refit cover in reverse manner.
Front Clip
clips
1
On the top tub, this can be done with the tub in place,
or with the tub removed.
2
The bottom tub will require to be removed from the
chassis to gain access to the securing screws and clips.
With the tub removed:
1
To remove the wiring cover with the tub in place, first
remove the drawer front.
2
Carefully release the four wiring cover front clips, two
on each side, from under the front lower section of
the tub. Take care not to damage them.
3
Release the three clips on the underside of the tub
that attaches the wiring cover to the motor assembly.
4
The wiring cover may now be carefully moved
forward and downward to release it from the rear of
the tub.
5
To reassemble, first ensure that the wiring harness,
drain hoses and fill hose are located in their correct
positions.
6
Then refit cover in reverse manner.
With the tub in place:
screws
locating hook
locating pin
5
https://vimeopro.com/fisherpaykeltechnical/training-
videos/video/121784817
7 Refit the torx screws and reassemble the drawer front.
