8 SERVICING PROCEDURES
8.5 Removing the Wash Controller
8.6 Removing the Dispenser
8.7 Removing the Drying Fan & Flap Valve
1

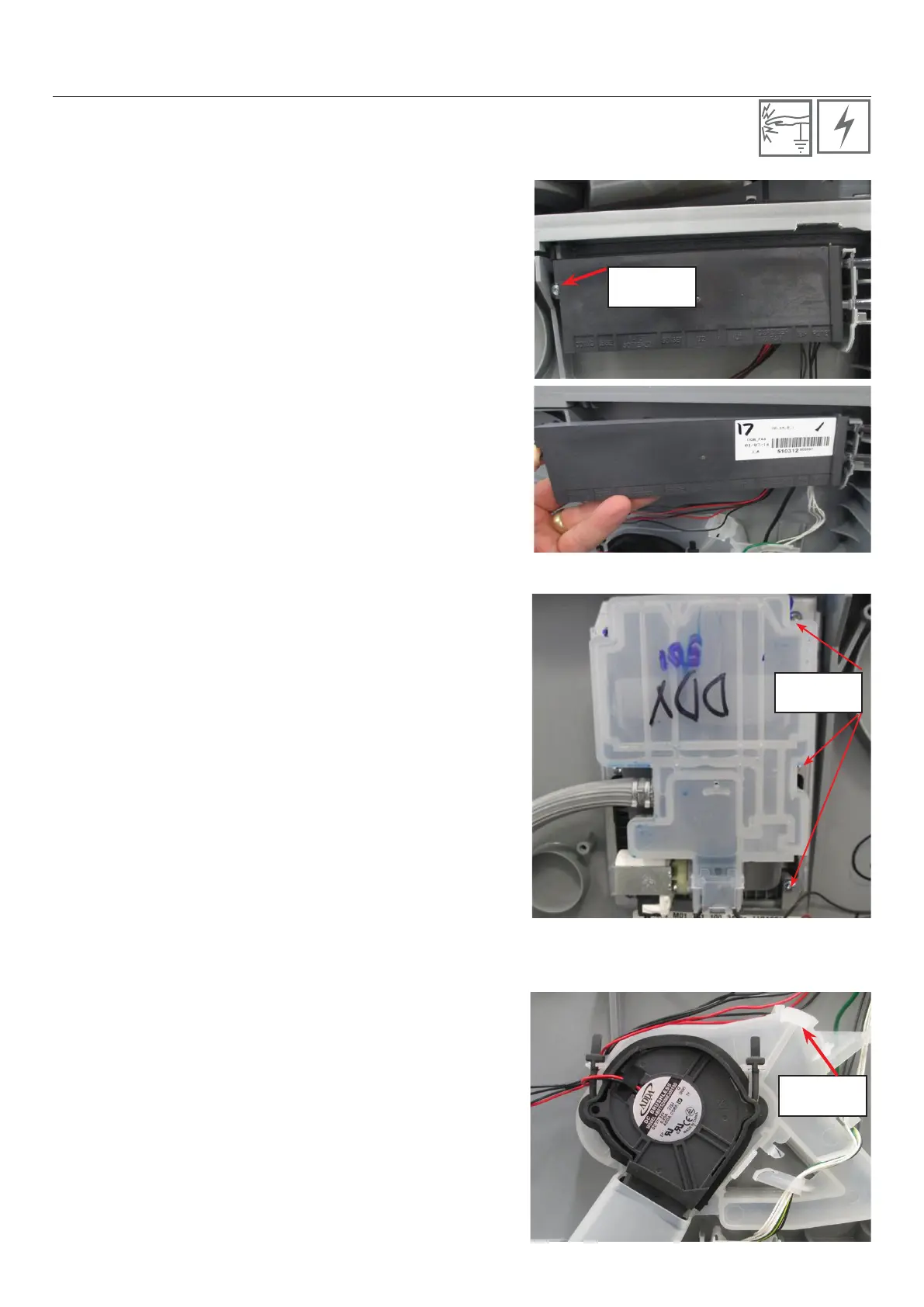

Remove the drawer front from the tub, refer 8.1.
2
Remove the torx head screw on the left hand side of
the wash controller.
3
Pull the module forward on the left hand side, and the
wash controller will release from the locating pin on
the tub.
4
When reassembling the wash controller into the tub,
angle the wash controller and slide the locating pin on
the right hand side into the tub , push the controller
forward and secure with the torx head screw.
torx head
screw
1
Remove the drawer front, refer to 8.1.
2
Remove the hose clamp and remove the hose from
dispenser.
3
Remove the wiring harness to the rinse aid coil, and
with a small flat blade screwdriver, carefully unclip
the rinse aid indicator LED cover.
4
Remove the LED and harness from the dispenser.
5
Remove the 6 torx head screws retaining the 2 side
brackets.
6
The dispenser can now be removed from the inside
of the tub.
7
Reassemble in reverse order.
1
Remove the drawer front, refer 8.1.
2
With a small flat blade screwdriver, carefully release
the small plastic clips holding the rinse aid indication
LED in the dispenser and remove the LED harness.
3
Disconnect the fan harness from the wash controller.
4
Release the rubber tabs holding the fan in place.
5
The fan will now come free.
Note: The fan housing flapper can be replaced by
removing the cover and lifting the flapper out of the
housing.
To remove the cover, use a small screwdriver to
depress the 2 clips at the rear, and slide it forward to
release.
apper
cover
torx head
screws
