60

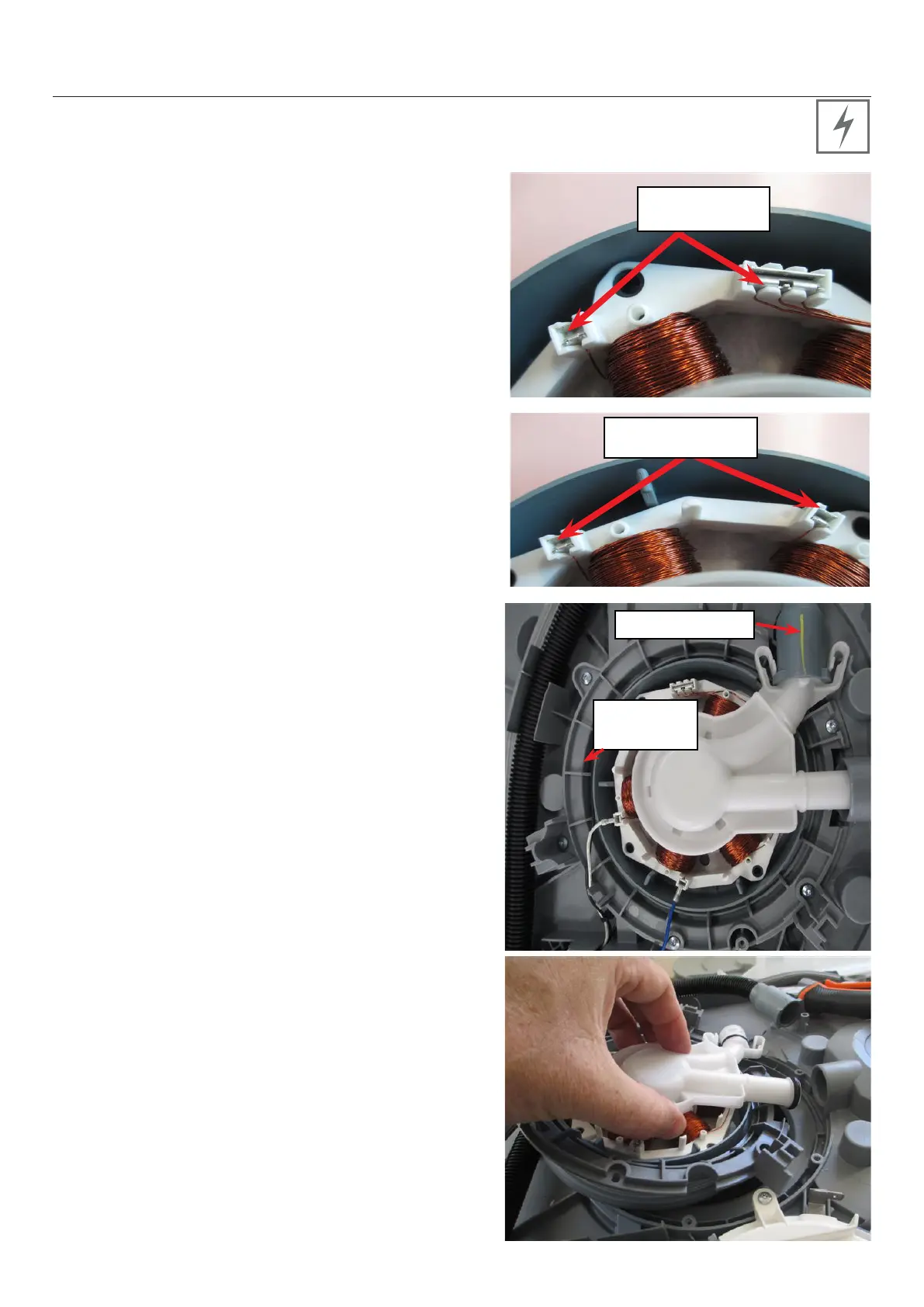

8 SERVICING PROCEDURES
phase to phase
16 ohms
phase to star
8 ohms
1
Remove the tub as per section 8.13
2
Remove the wiring cover as per 8.16
3
Remove the wiring harness to the stator, you will
need to depress the clips to remove the small spade
terminal.
4
First check the windings are OK, this can be done
from coil to star and should read approx 8 ohms.
Phase to phase connection should read approx 16
ohms.
5
To remove the motor assembly from the tub, unclip
the drain hose cuff.
6
Remove the 6 torx screws securing the motor
locking ring assembly to the tub.
7
Lift the assembly and pull it from the sump to
release the drain spigot outlet.
8
To reassemble, ensure the motor stator has the
gasket correctly fitted, fit the motor locking ring to
the upper side of the assembly, locate the spigot to
the sump and push forward to seat the o-ring.
9
Gently push the motor down into place and secure
with the locking ring, ensure all 6 torx screws are
fitted and tight, refit the drain hose and wiring and
reassemble the wiring cover.
8.18 Replacing the Motor
Drain hose cuff
motor
locking
ring
http://vimeopro.com/fisherpaykeltechnical/training-videos/
video/121782517#/video/121791087
