Fisher & Paykel DD60DCHB7 Service Manual

8
2.1.2 AA, GB, EU, DK, PF, SG Single Models
2 SPECIFICATIONS
4

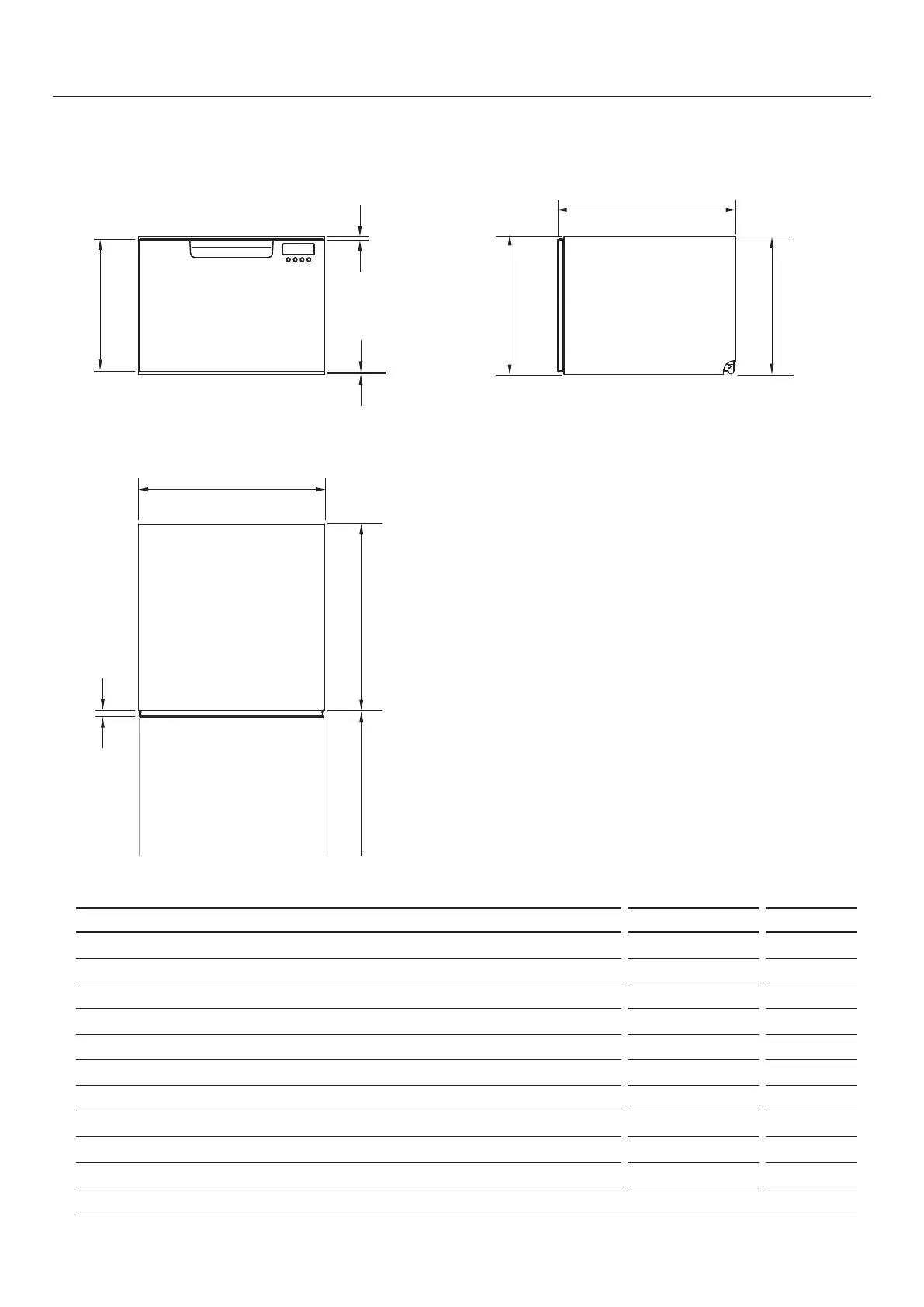

3 PRODUCT DIMENSIONS
D
J
G
H
I
E
B
F
C
A
PLAN
PROFILE
FRONT
DD60SA DD60SCT
PRODUCT DIMENSIONS MM MM
A
Overall height of product
1
410 454
B
Overall width of product 599 599
C
Overall depth of product 573 573
D
Depth of chassis (to back of front drawer panel) 553 553
E
Depth of drawer front panel 20 20
F
Height of drawer front panel 393 437
G
Height of chassis
1
410 454
H
Height from top of drawer front panel to top of chassis 88
I
Ventilation gap below drawer front panel 77
J
Maximum extension of drawer 547 547
1
includes 2mm high bracket slots
4
3 PRODUCT DIMENSIONS
D
J
G
H
I
E
B
F
C
A
PLAN
PROFILE
FRONT
DD60SA DD60SCT
PRODUCT DIMENSIONS MM MM
A
Overall height of product
1
410 454
B
Overall width of product 599 599
C
Overall depth of product 573 573
D
Depth of chassis (to back of front drawer panel) 553 553
E
Depth of drawer front panel 20 20
F
Height of drawer front panel 393 437
G
Height of chassis
1
410 454
H
Height from top of drawer front panel to top of chassis 88
I
Ventilation gap below drawer front panel 77
J
Maximum extension of drawer 547 547
1
includes 2mm high bracket slots

Fisher & Paykel DD60DCHB7 Specifications

General

Brand	Fisher & Paykel
Model	DD60DCHB7
Category	Dishwasher
Language	English
