2 SPECIFICATIONS
2.3.3 US, TW Double Models
14
1
2
!5 THERE ARE THREE DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE.

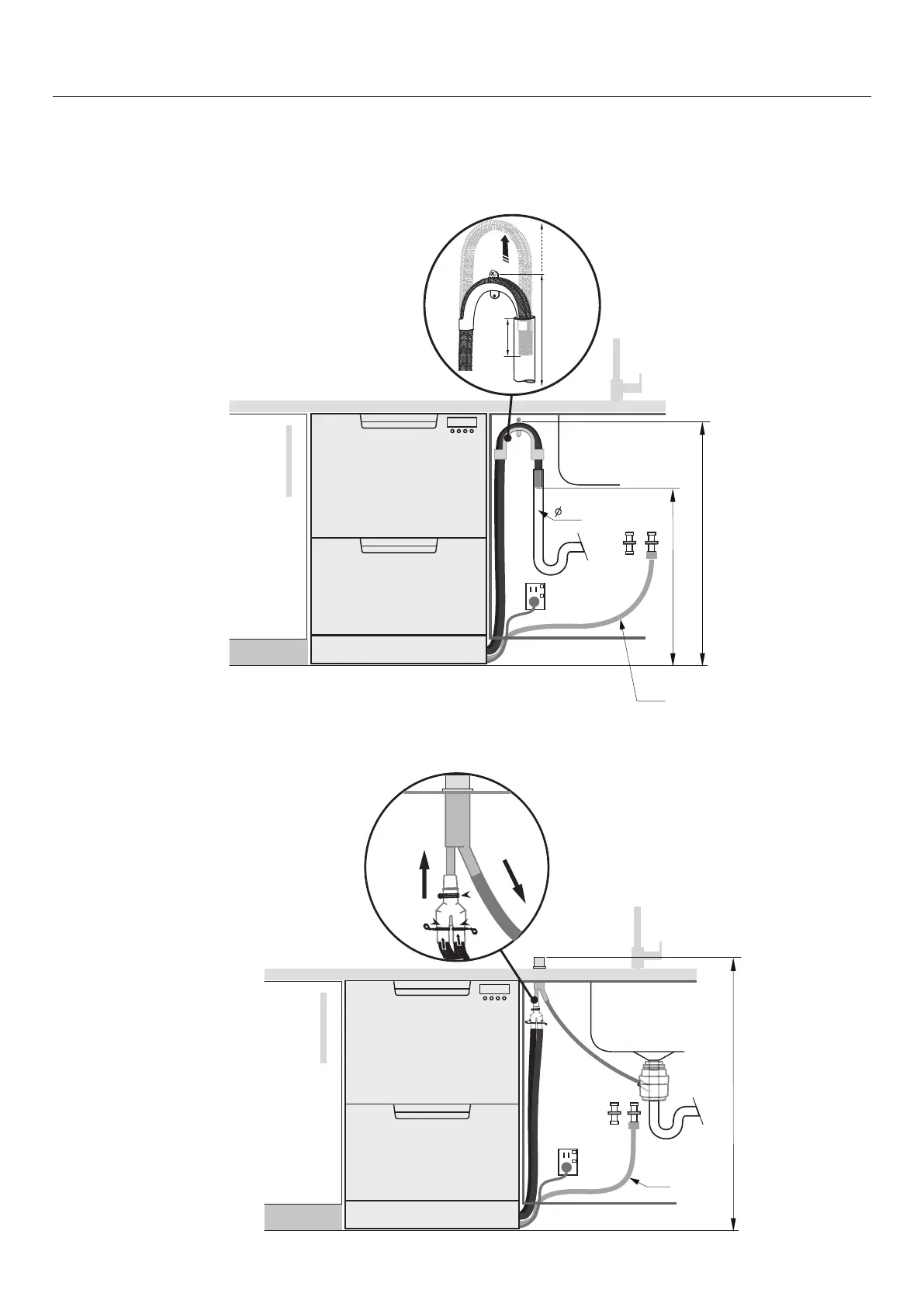

DRAINAGE OPTION 1
Dishwasher and Ø 1 1/2” (38 mm) Standpipe
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.
min. R 8”
(200 mm)
29 1/2”-34 3/4” (750-882.5 mm)
1 1/2po
(38mm)
29 1/2 - 34 3/4” (750-883 mm)
Screw Drain hose
support to back wall
at correct height
If space is limited
for fixing, push
hose through drain
hose support
to required height
max.
4 3/4po
(120mm)
step 16
min. 19 11/16” (500 mm)
15
min. R 8”
(200 mm)
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.
DRAINAGE OPTION 2
Dishwasher using Air Break with Drain Hose Joiner
37 3/8” (950 mm)
Max. height to top
of Air Break
(countertop or
wall mounted)
1
2
step 16
Secure both drain
hoses to drain hose
joiner and secure to
Air Break

Fisher & Paykel DD60DCHB7 Specifications

General

Brand	Fisher & Paykel
Model	DD60DCHB7
Category	Dishwasher
Language	English
