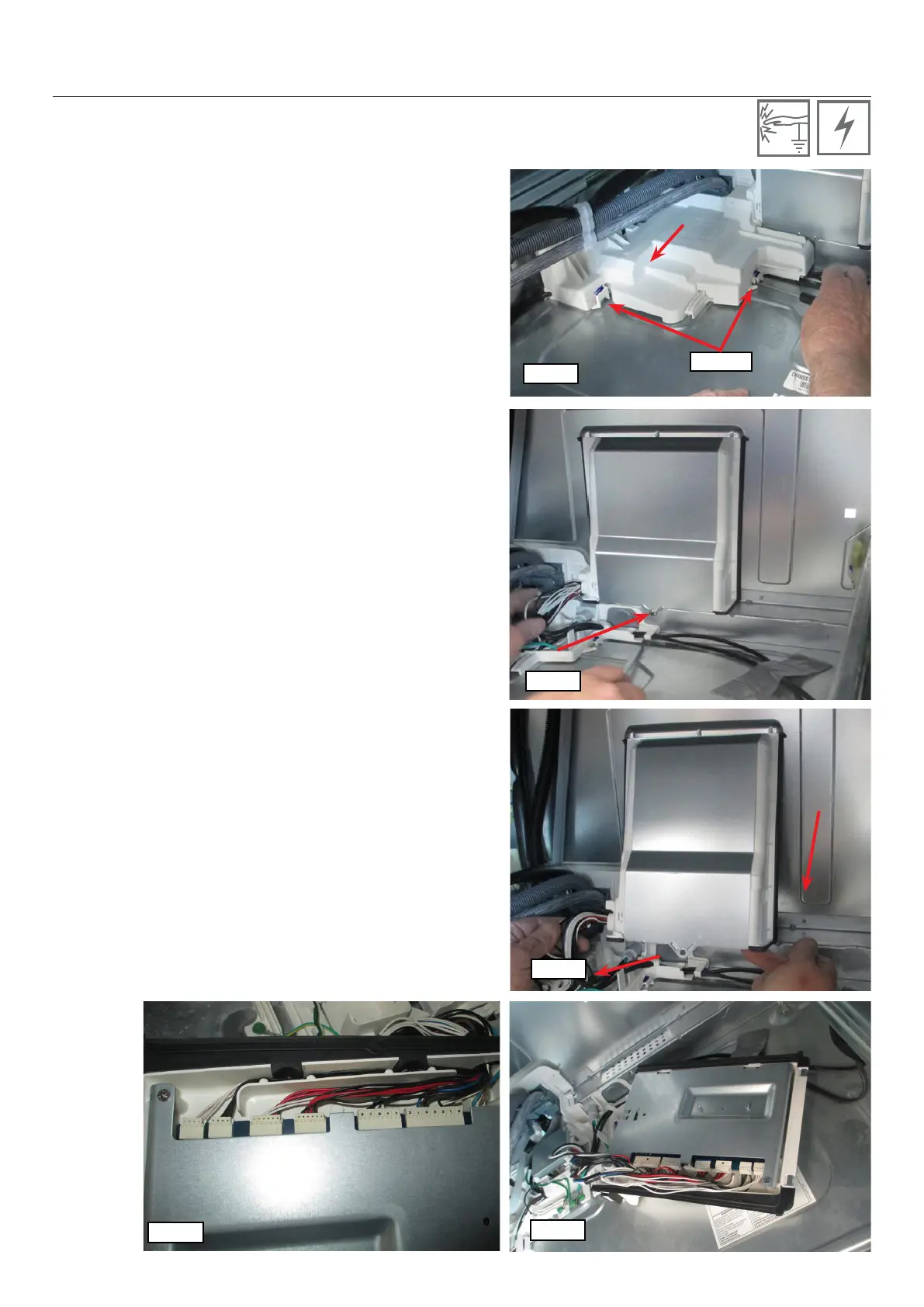

8.20 Replacing the Motor Controller
1 Remove the bottom tub, refer section 8.13.
2 Unclip the link support rod, as this allows the tub to
be moved slightly further to the left to gain access
to the controller housing.
3 Remove the chassis module cover to gain access to
the screw retaining the motor controller housing.
(Fig 1)
4 Remove the screw retaining the cover to the rear
chassis. Pull the module downwards to release the
top of the controller housing from the rear panel.
(Fig 2 & 3 )
5 When assembling the PCB harness into the motor
controller assembly, ensure the connector plugs are
the correct way round and the harness is correctly
located. Mains wires down the main channel, the LV
wires down the other. (Fig 4 & 5)
clips
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
http://vimeopro.com/fisherpaykeltechnical/training-videos/
video/121917258#/video/121921547
8 SERVICING PROCEDURES
