Fisher & Paykel DD60DCHB7 Service Manual

18
2 SPECIFICATIONS
2.3.4 US Single Models
16
1
2
3
min. R 8”
(200 mm)
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.

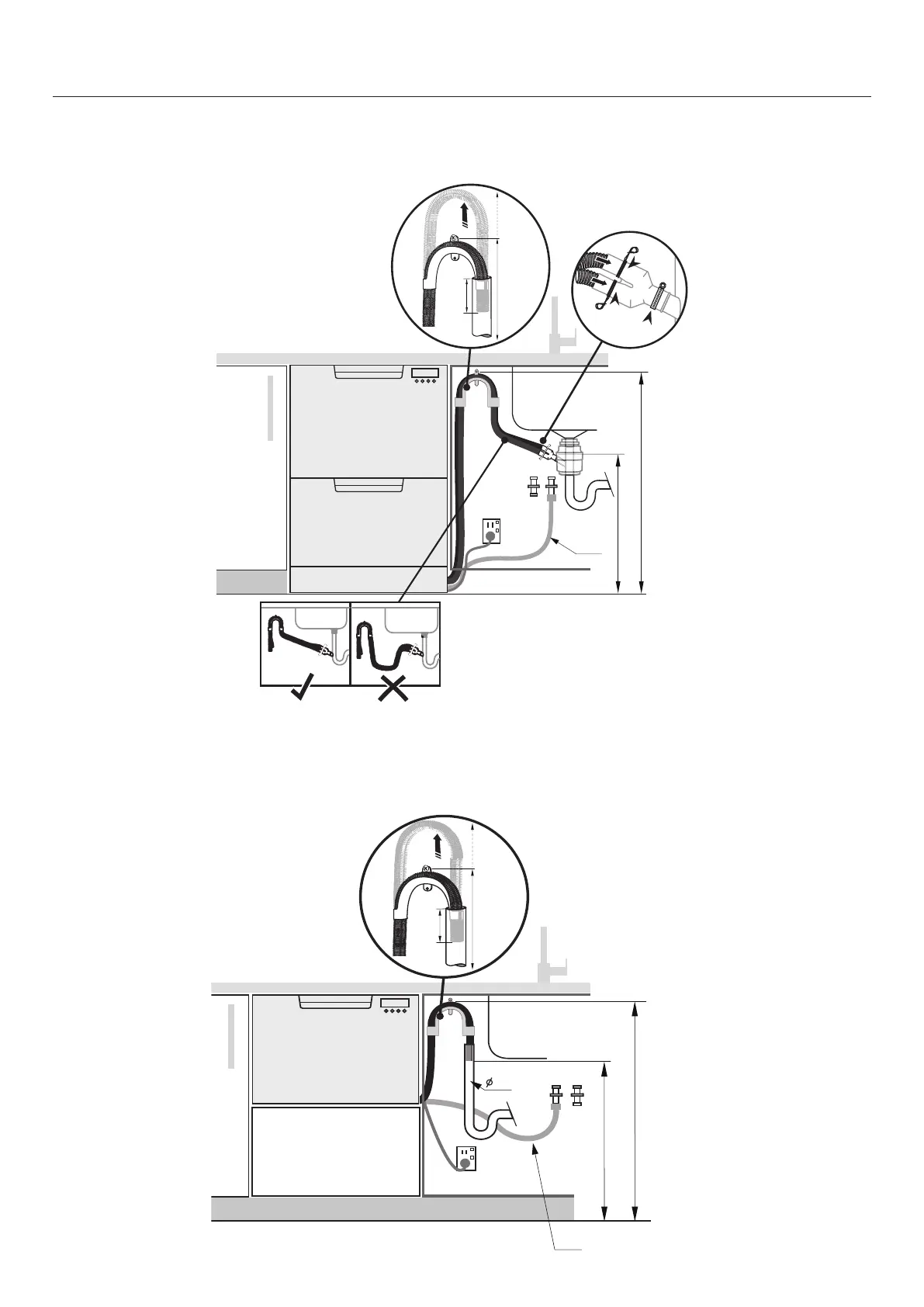

DRAINAGE OPTION 3
Dishwasher using drain hose joiner onto sink trap/waste tee
29 1/2 - 34 3/4” (750-883 mm)
step 16
Supplied drain
hose joiner to suit
Ø 3/4” (19 mm)
waste tee
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
29 1/2”-34 3/4” (750-882.5 mm)
Screw Drain hose
support to back wall
at correct height
If space is limited
for fixing, push
hose through drain
hose support
to required height
max.
4 3/4po
(120mm)
min. 19 11/16” (500 mm)
13
1
2
!3 THERE ARE THREE DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE.
DRAINAGE OPTION 1
Dishwasher and Ø 1 1/2” (38 mm) Standpipe
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.
min. R 8”
(200mm)
29 1/2” - 34 3/4” (750 - 882.5 mm)
1 1/2”
(38mm)
29 1/2 - 34 3/4” (750 - 883mm)
Screw Drain hose
support to back wall
at correct height
If space is limited
for fixing, push
hose through drain
hose support
to required height
max.
4 3/4“
(120mm)
step 14
min. 19 11/16” (500mm)
