68
8 SERVICING PROCEDURES

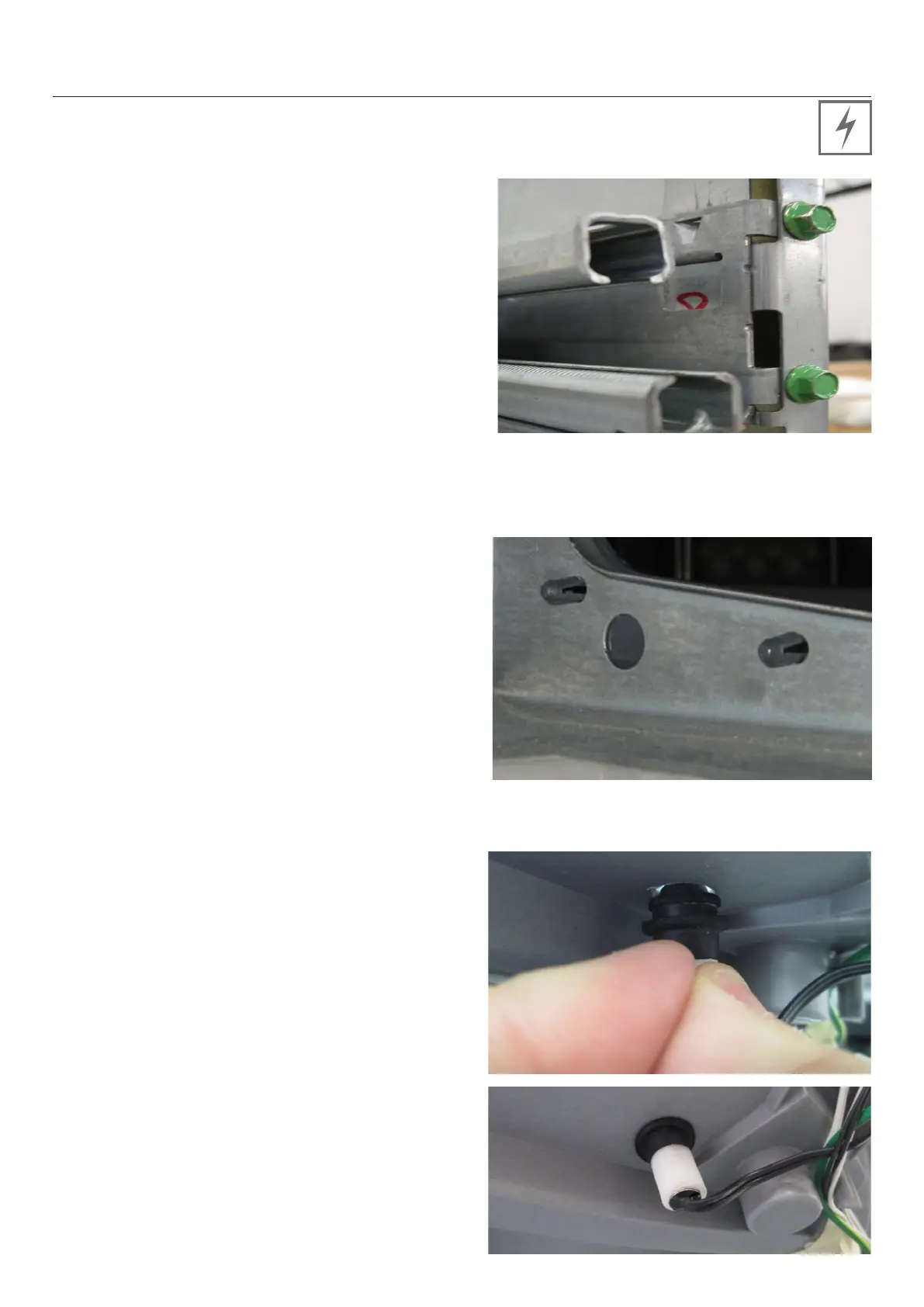

8.27 Replacing the Chassis Trim
1 Bottom tub only - Remove the kickstrip, refer
section 8.14, and the bottom cowling, refer section
8.15.
2 Remove the drawer front, refer section 8.1, and the
tub, refer section 8.13.
3 Remove both the left hand and right hand yokes,
refer section 8.25. This is to prevent damaging
the locating tab at the front of each yoke where it
slides up into the rear of the chassis trim.
4 Remove the trim by releasing the trim clips with
long nose pliers, and pull trim forward to release
from the chassis.
5 Refit in reverse manner.
1 Remove the tub, refer section 8.13
2 Remove the required lid actuator from the slide rail
being replaced, refer section 8.23.
3 Remove the appropriate chassis trim (refer section
8.27) to gain access to the screws of the rail being
replaced.
4 Remove the 2 hex drive screws securing the rail to
the chassis.
5 Tap the slide rails from underneath at the front to
free from it’s location in the chassis.
6 Pull forward to release the rear locating tabs.
7 Refit in reverse order, take care that the chassis is
square before tightening the screws.
8.26 Replacing the Side Rail
8.28 Replacing the Temperature Sensor
1 Remove the drawer front, refer section 8.1.
2 Remove the wiring cover, refer section 8.16.
3 The sensor is a push fit into the tub, so requires
some force to pull it out.
4 Remove the sensor wiring harness from the wash
controller.
5 When reassembling the new sensor, pays to
lubricate the rubber grommet which helps the
grommet locate into the tub.
6 You can use a flat blade screwdriver to help push
the grommet in, but care should be taken not to
damage it, otherwise it can leak.
7 Connect the harness to the wash controller.
8 Reassemble the wiring cover and drawer front.
