Fisher & Paykel DD60DCHB7 Service Manual

19
14
1
2
min. R 8”
(200mm)
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.

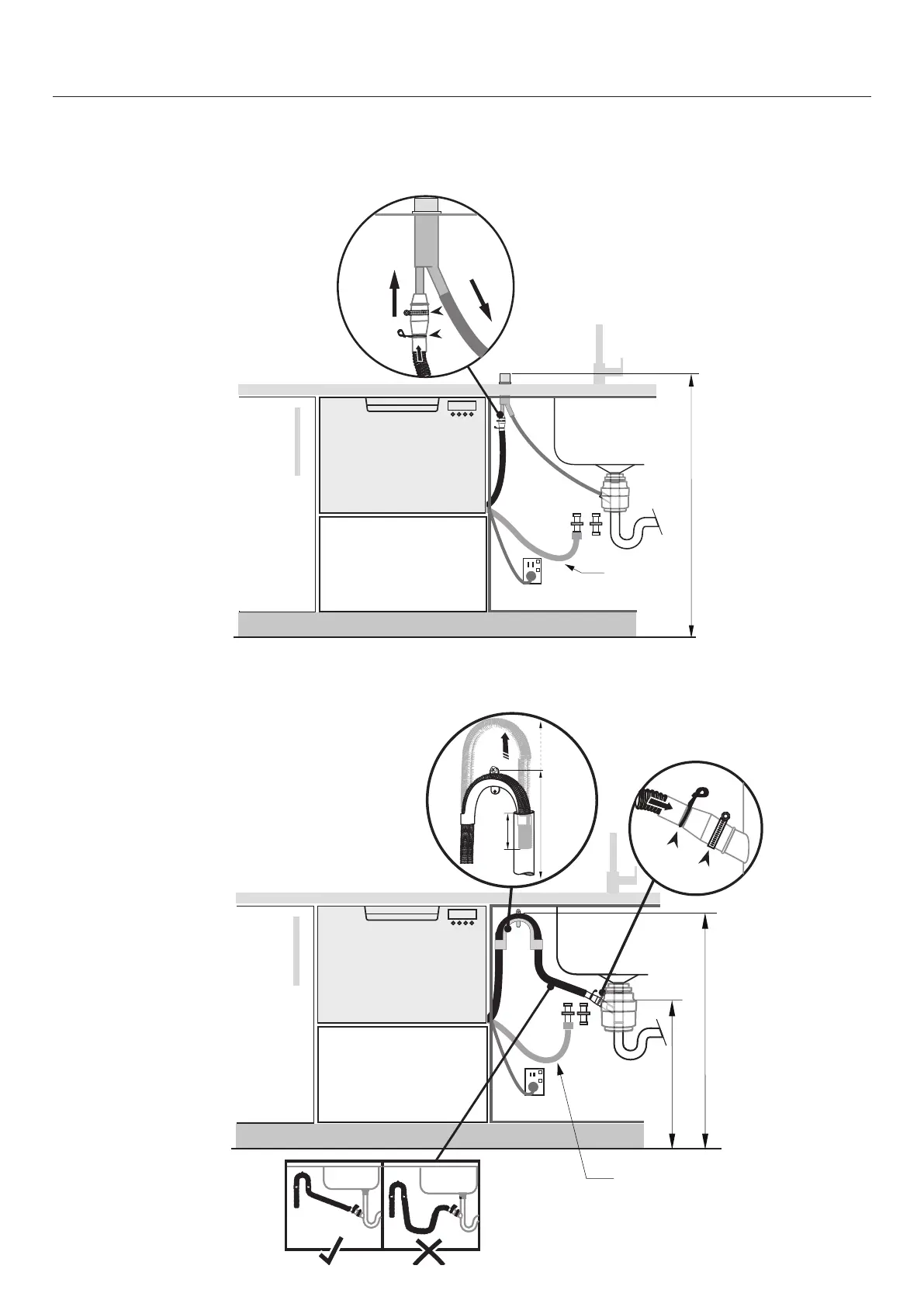

DRAINAGE OPTION 2
Dishwasher using Air Break with Drain Hose Joiner
37 3/8” (950mm)
Max. height to top
of Air Break
(countertop or
wall mounted)
step 14
Secure drain hose to
drain hose joiner and
secure to Air Break
15
3
1
2
min. R 8”
(200mm)
IMPORTANT!
Ensure that drain
connection will comply with
local plumbing regulations.
DRAINAGE OPTION 3
Dishwasher using drain hose joiner onto sink trap/waste tee
29 1/2 - 34 3/4” (750 - 883mm)
step 14
Supplied drain
hose joiner to suit
Ø 3/4” (19 mm)
waste tee
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
29 1/2”- 34 3/4” (750 - 882.5mm)
Screw Drain hose
support to back wall
at correct height
If space is limited
for fixing, push
hose through drain
hose support
to required height
max.
4 3/4”
(120mm)
min. 19 11/16” (500mm)
2 SPECIFICATIONS

Fisher & Paykel DD60DCHB7 Specifications

General

Brand	Fisher & Paykel
Model	DD60DCHB7
Category	Dishwasher
Language	English
