26

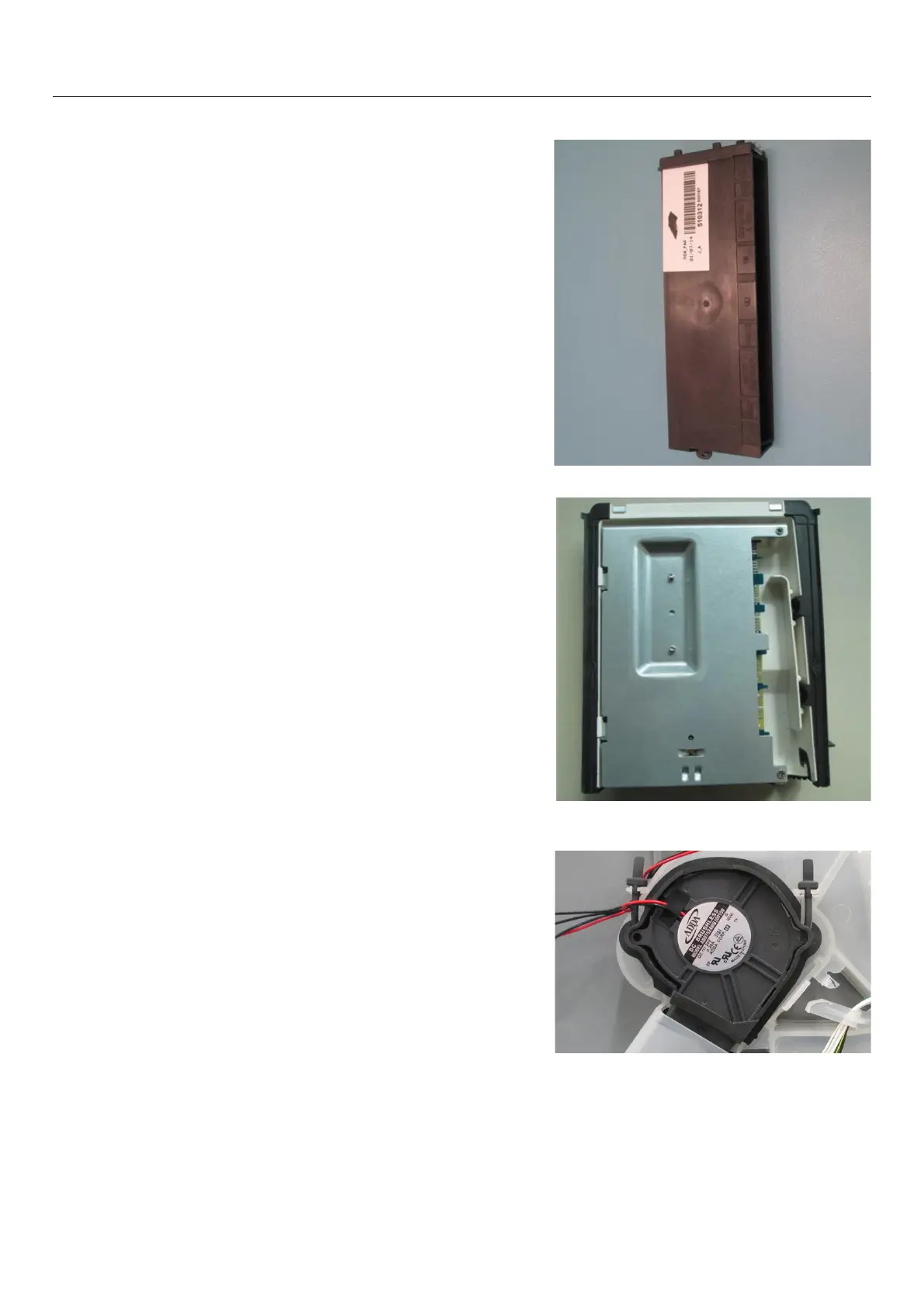

4.3.1 Wash Controller
Wash controller, one situated in each tub.
Outputs:
Drying fan
Rinse Dispenser coil
Motor controller
4.3.2 Motor Controller
Motor controller situated in the base panel area.
There are 2 types of motor controller:
NZ, AU, GB, EU, DK, SG 230V
US, CA, TW 110V
Outputs:
Lids
Wash motor
Fill valve
4.4 Drying Fan
Immediately after water from the final hot rinse has been
drained from the tub, the drying cycle begins.
The drying fan draws air through the vent in the rear into
the tub where it absorbs water from the dish load. The
moisture-laden air is then mixed with a larger quantity
of ambient air (drawn from the kitchen), to minimise the
amount of vapour visible when air is exiting from the
bottom of the drawer front.
A flap valve is located in the fan housing. This is closed to
prevent moist air from entering the space behind the door
panel during the wash. The fan runs continuously during
the drying cycle for various times depending on the program
selected, and will restart if the tub is opened and closed again.
After the wash program is complete, the lid drives up, and the
fan continues to run for anything up to 120 minutes depending
on the program.
4 TECHNICAL OVERVIEW
