Instruction Manual
D103412X012
Installation
July 2013
21
2. Verify that the appropriate cam is installed on the actuator as described in the instructions included with the
mounting kit.
3. Mount the DVC6215 on the actuator as follows:
If required, a mounting adaptor is included in the mounting kit. Attach the adaptor to the feedback unit, then
attach the feedback unit assembly to the actuator. The roller on the feedback arm will contact the actuator cam
as it is being attached.
If no mounting adaptor is required, attach the feedback unit and mounting kit assembly to the actuator. The
roller on the feedback arm will contact the actuator cam as it is being attached.

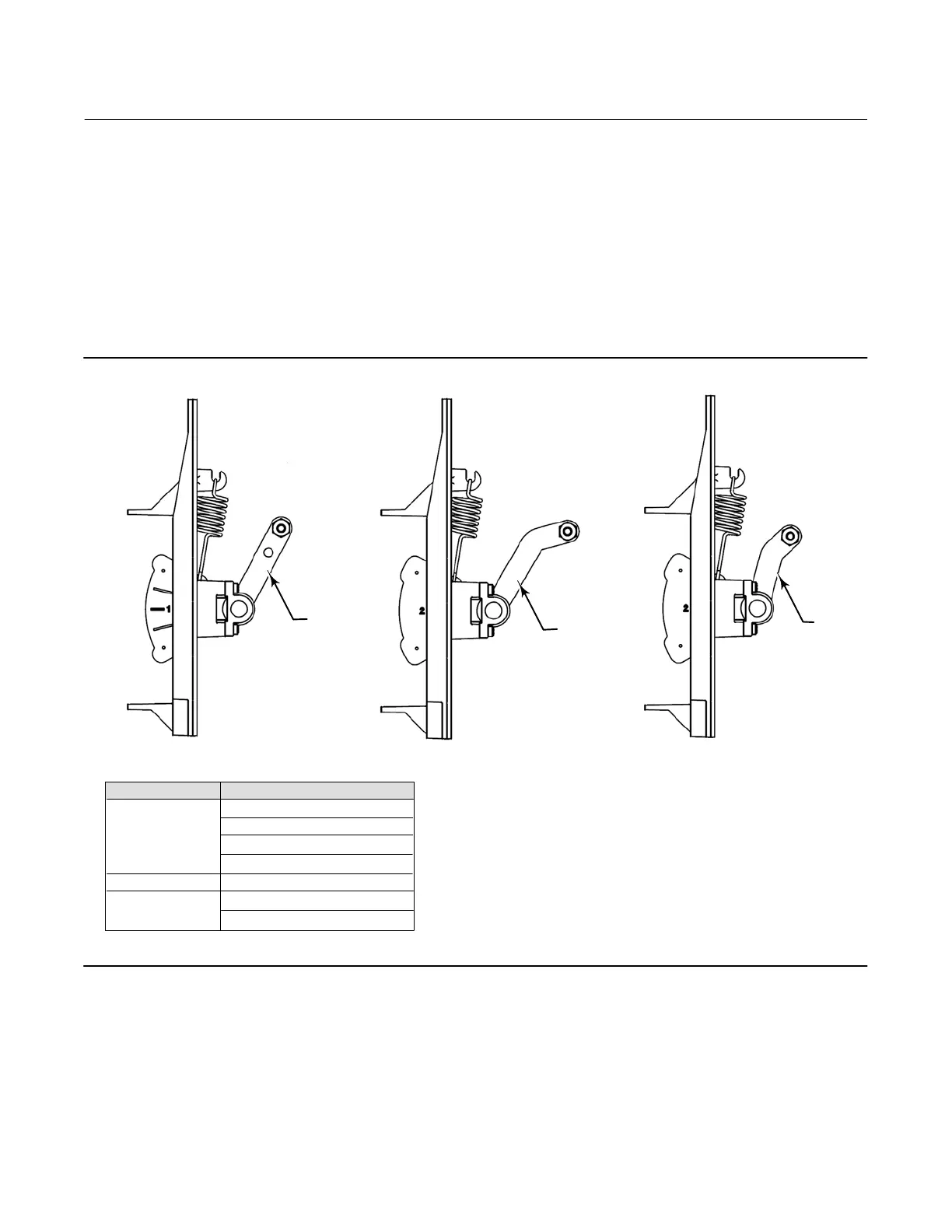

Figure 2‐14. Mounting Variations
E1229
VARIATION A
VARIATION B
VARIATION C
ACTUATORVARIATION
A
2052 Size 2 and 3
1051/1052 size 40-70
1061 Size 30-100
Sliding‐Stem > 210 mm (8.25 inches)
2052 Size 1
1052 Size 20-33
1051 Size 33
B
C
NOTE THE DIFFERENCE IN THE SHAPE AND LENGTH OF THE ROLLER ARM
ROLLER
ARM
ROLLER
ARM
ROLLER
ARM
