HyPower-Geko Mounting
FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications 33
Pos. 1: Threaded rod M8
Pos. 2: Assembly track
Pos. 3: Track adapter
Pos. 4: Screw M8x25, washer, nut
Pos. 5: Assembly mounting of the unit/accessories
• Use the fixing material (see fig. 4-8, Pos. 4) to fasten the rail adapt-
ers (see fig. 4-8, Pos. 3) to the assembly mountings on the side of
the unit/accessory (see fig. 4-8, Pos. 5), on which the suspension
rail (see fig. 4-8, Pos. 2) is installed.

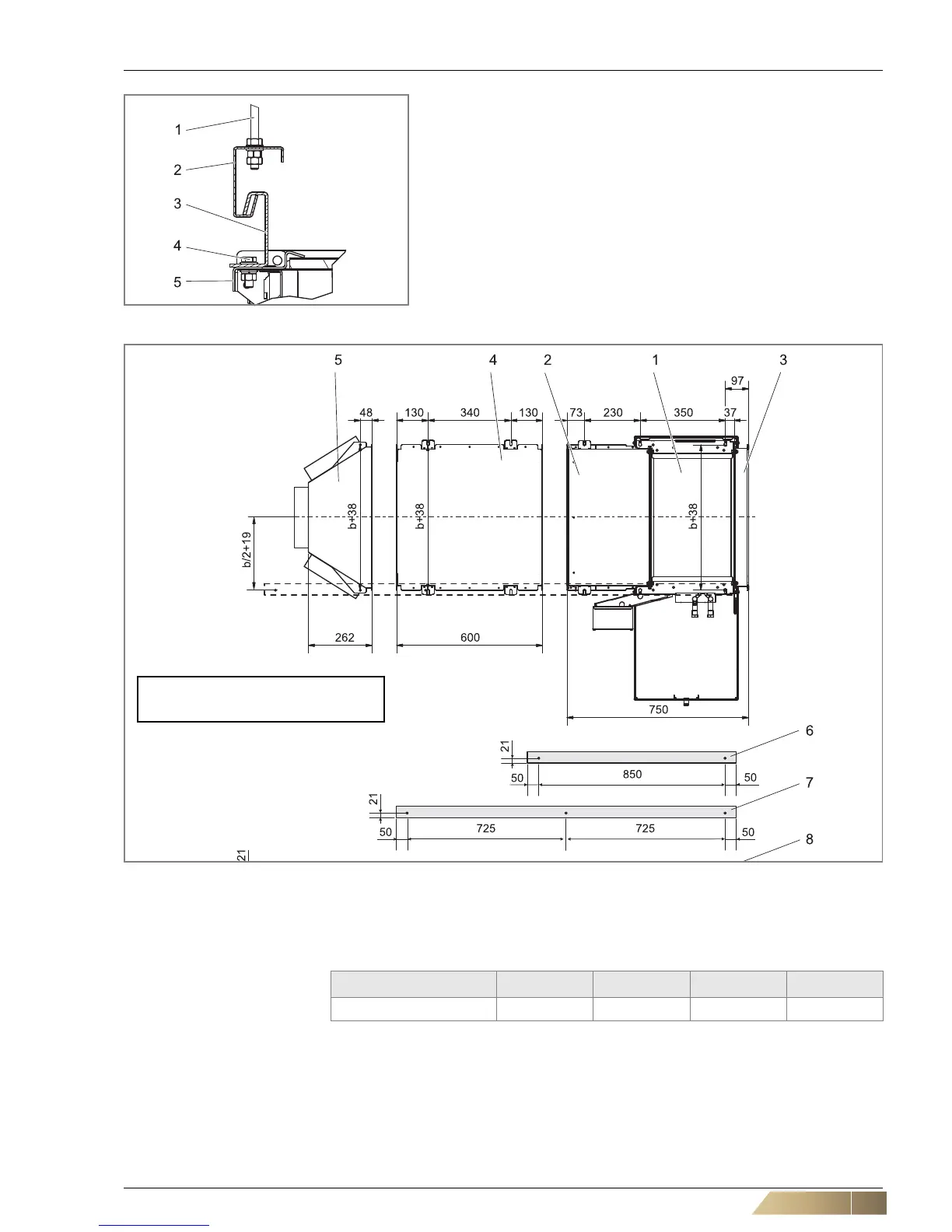

Fig. 4-8: Fixing rail adapter
Fig. 4-9: Keyholes for mounting suspension rail
All mounting slots/keyholes ∅= 9 mm
(provided for M8-threaded rods)
Pos. 1: Basic unit
Pos. 2: Fan chamber
Pos. 3: Discharge transition piece
Pos. 4: Intake/discharge sound attenuator
Pos. 5: Intake/discharge plenum
Poz. 6: Suspension rail length 950 mm (ZGH.0A613)
Pos. 7: Suspension rail length 1550 mm (ZGH.0A623)
Pos. 8: Suspension rail length 2150 mm (ZGH.0A633)
Model size 1 2 3 4
b [mm] 560 865 1170 1590
Tab. 4-5: Unit size dependent width of accessories
