Mounting HyPower-Geko
34 FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications
• Ensure that there is enough space available for valve installation.
• Fasten the threaded rods M8 with suitable tools below the ceiling.
• Secure the suspension rail below the room ceiling by using appropriate means.
• Refer to fig. 4-9 for the position of the mounting slots/keyholes for the suspension
rail and threaded rods.
• Hang the HyPower-Geko with rail adapters (see fig. 4-8) in the suspension track.
• Lift the opposite side of the HyPower-Geko unit so that the threaded rods go
through the holes of the assembly mountings.
• Connect the HyPower-Geko using supplied fixing material.
• Use a spirit level to exactly align the MPower-Geko in longitudinal and lateral direc-
tion (refer to fig. 4-6).
• Tighten the fixing bolts.

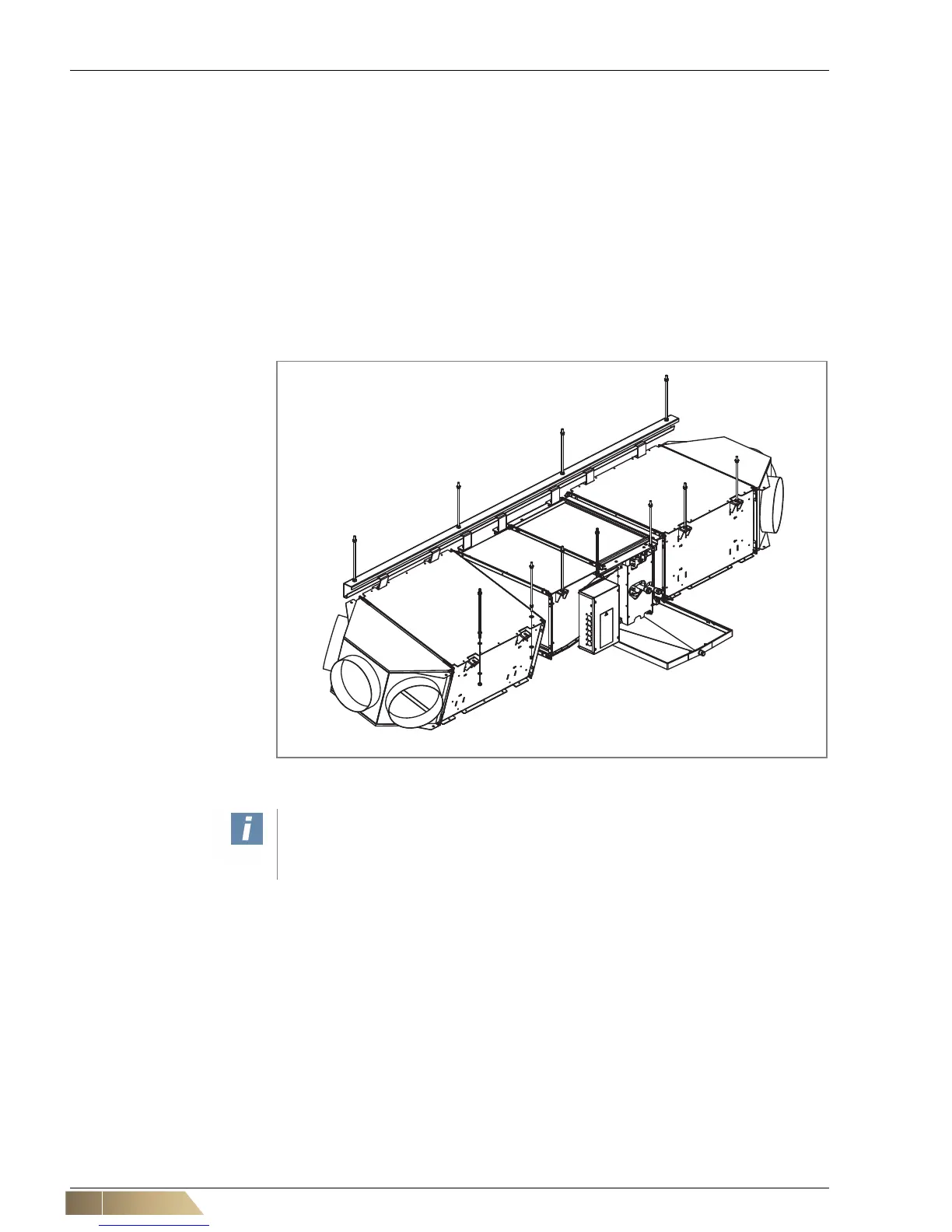

Fig. 4-10: Mounting with suspension rail
User instructions!
Unobstructed condensate drainage is ensured only in horizontally mounted cooling
units.
