7.2.3 Shut-off valve for control valves up to 1.6 kvs (1/2") value for fan coil units

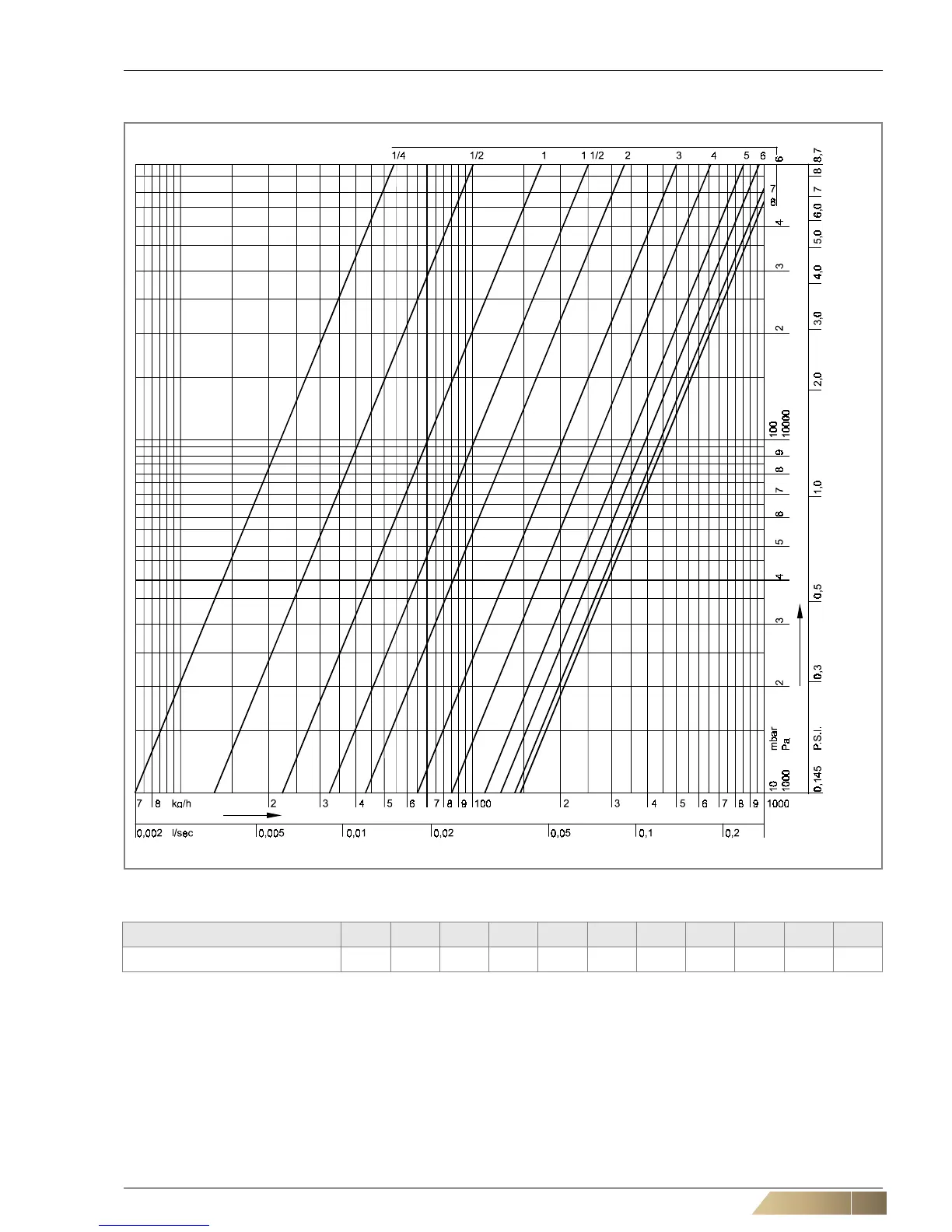

Fig. 7-3: Flow rate diagram V9400
Pre-setting 1/4 1/2 1 1 1/2 2 3 4 5 6 7 8
k
vs
values 0.07 0.13 0.22 0.32 0.43 0.65 0.85 1.10 1.25 1.40 1.45
Tab. 7-2: Pre-setting = turns of the pre-setting screw from the right stop position
