Multi-DENCO Installation

FläktGroup DC-2013-0101-GB • Subject to modifications • R5-08/2020 55

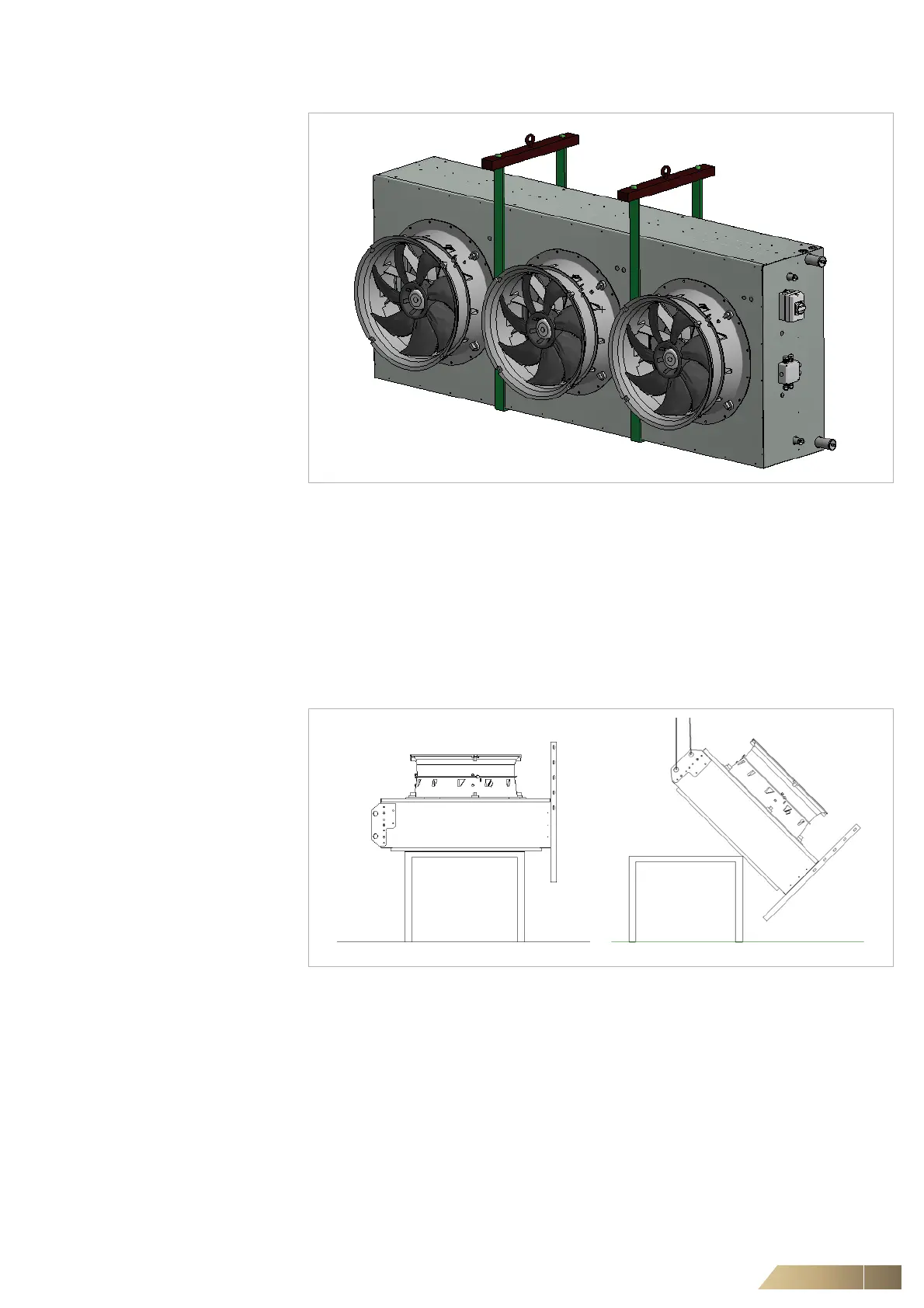

Fig. 5-25

5.6.4 Legs Installation

Supplied legs must be mounted on the casing box of the unit by the provided screws

and tighten them by 46 Nm to prevent any vibration in the unit during operation.

For horizontal operation, install legs on the opposite side to the hanging lugs and start

lifting the unit again by the same way (Fig. 5-26), and take care to maneuver it and

place it in the specified location. Finally, remove the wooden board from the bottom of

the unit.

Fig. 5-26

For the vertical operation, dismantle the hanging lugs by unscrewing all screws and

then start with installation of all provided legs with the unit from both sides. To manip-

ulate the unit, connect the chain with the lugs of the legs as in the Fig. 5-27 below and

start lifting gradually and place the unit in the specified location. Finally, remove the

wooden board from the bottom of the unit.

(4) (3)

FläktGroup Multi-DENCO - Page 55
