Multi-DENCO Medium Connections
FläktGroup DC-2013-0101-GB • Subject to modifications • R5-08/2020 69

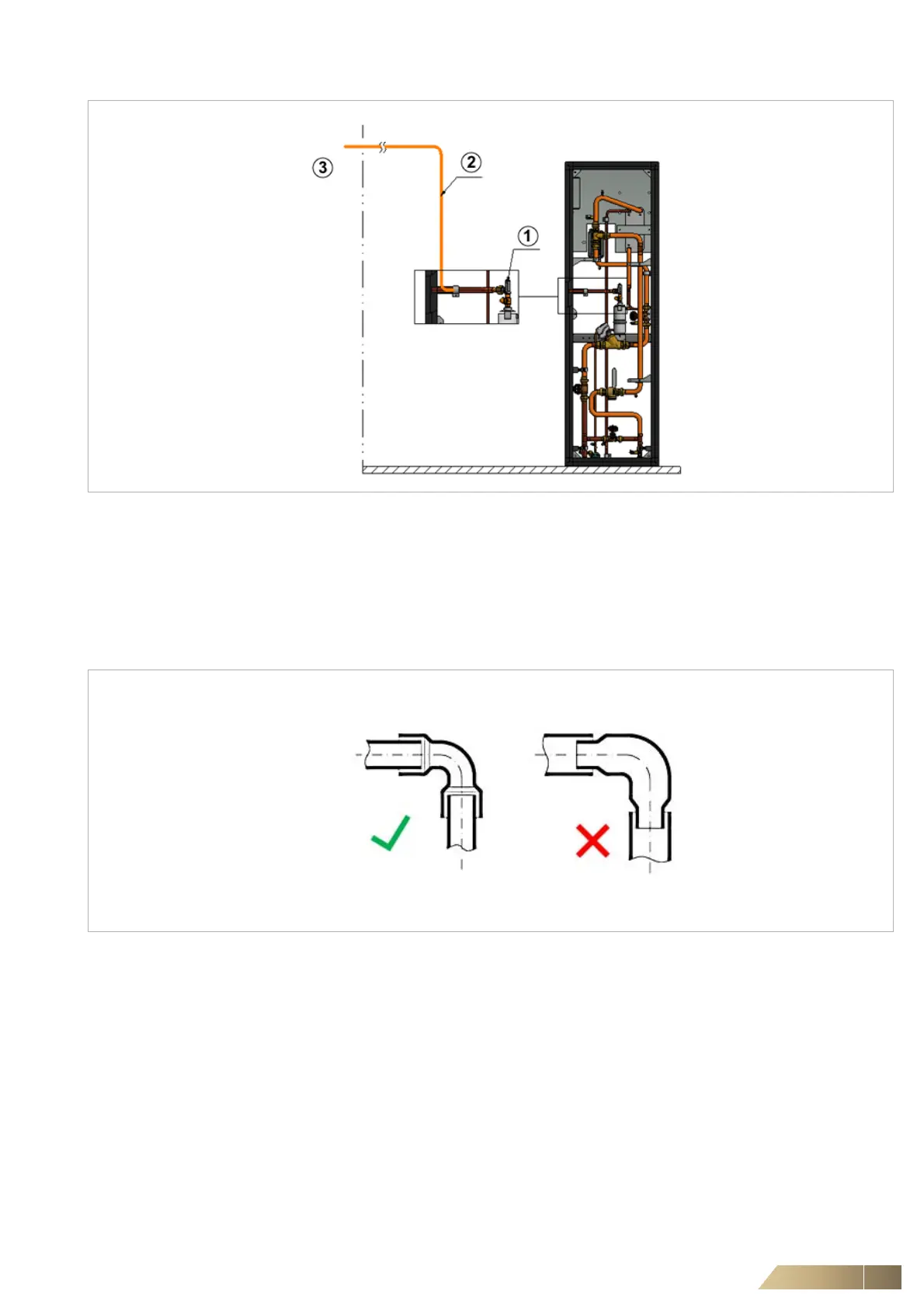

Fig. 6-7
The following requirements are for a factory fitted PRV only (Castel 3060/24C). If the
PRV is replaced with another brand, then this must be assessed and corrected by a
competent persons.
The maximum pressure drop allowed within the exhaust line is 10 bar.
All elbows and joints used, must be sized to be brazed OUTSIDE the pipework, as per
Fig. 6-8.
Fig. 6-8
