14

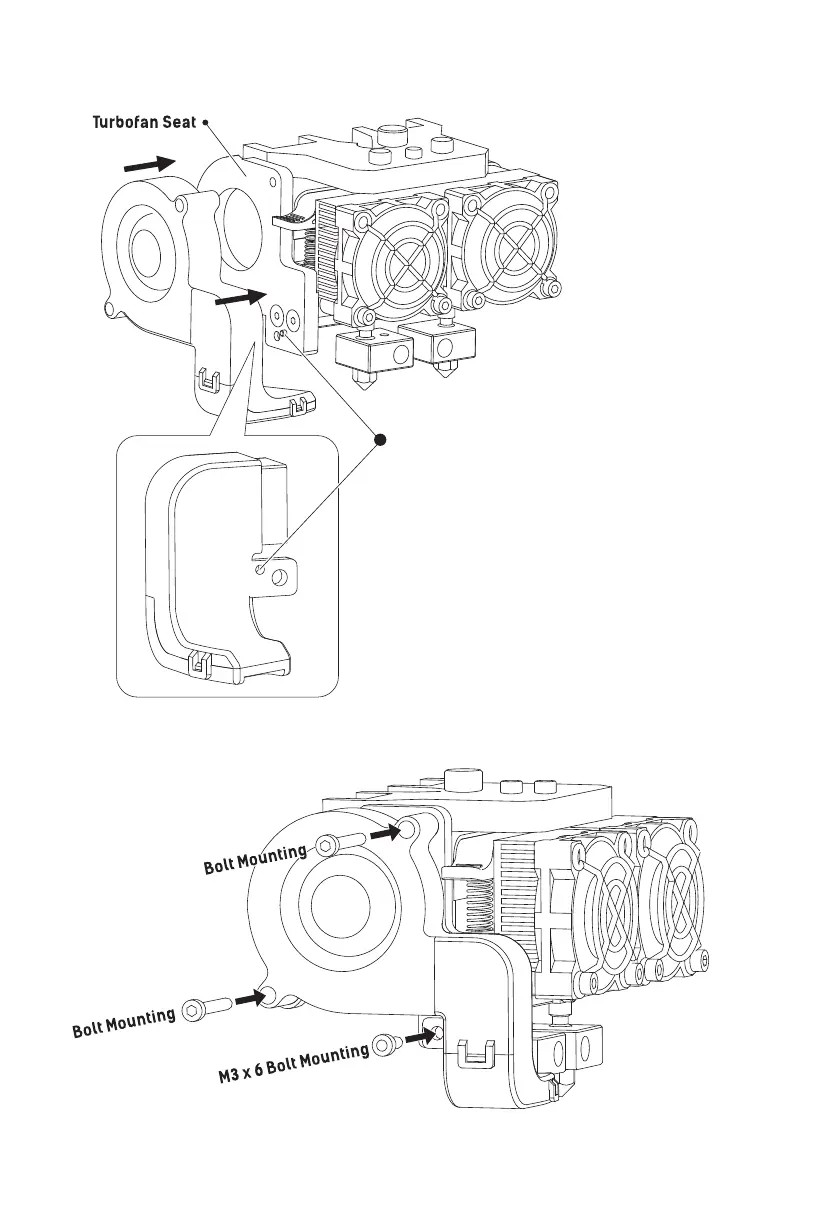

5. Align the bump on the turbofan seat to the hole in
the turbofan sub-assembly. Place the turbofan
sub-assembly beside the turbofan seat. Insert the
bump on the turbofan seat to the turbofan
sub-assembly. Screw in the two bolts.
6. Take an M3x6 bolt from the extruder's accessory kit
and complete the installation.
