Flexim FLUXUS F705**-NN Series User Manual

7 Connection FLUXUS F70x
UMFLUXUS_F7V4-6-2EN, 2017-10-01 65
• Fix the cable gland by screwing the cap nut onto the basic part.
• Connect the transducer cable to the terminals of the junction box (see Fig. 7.20 or Fig. 7.21 and Tab. 7.9).

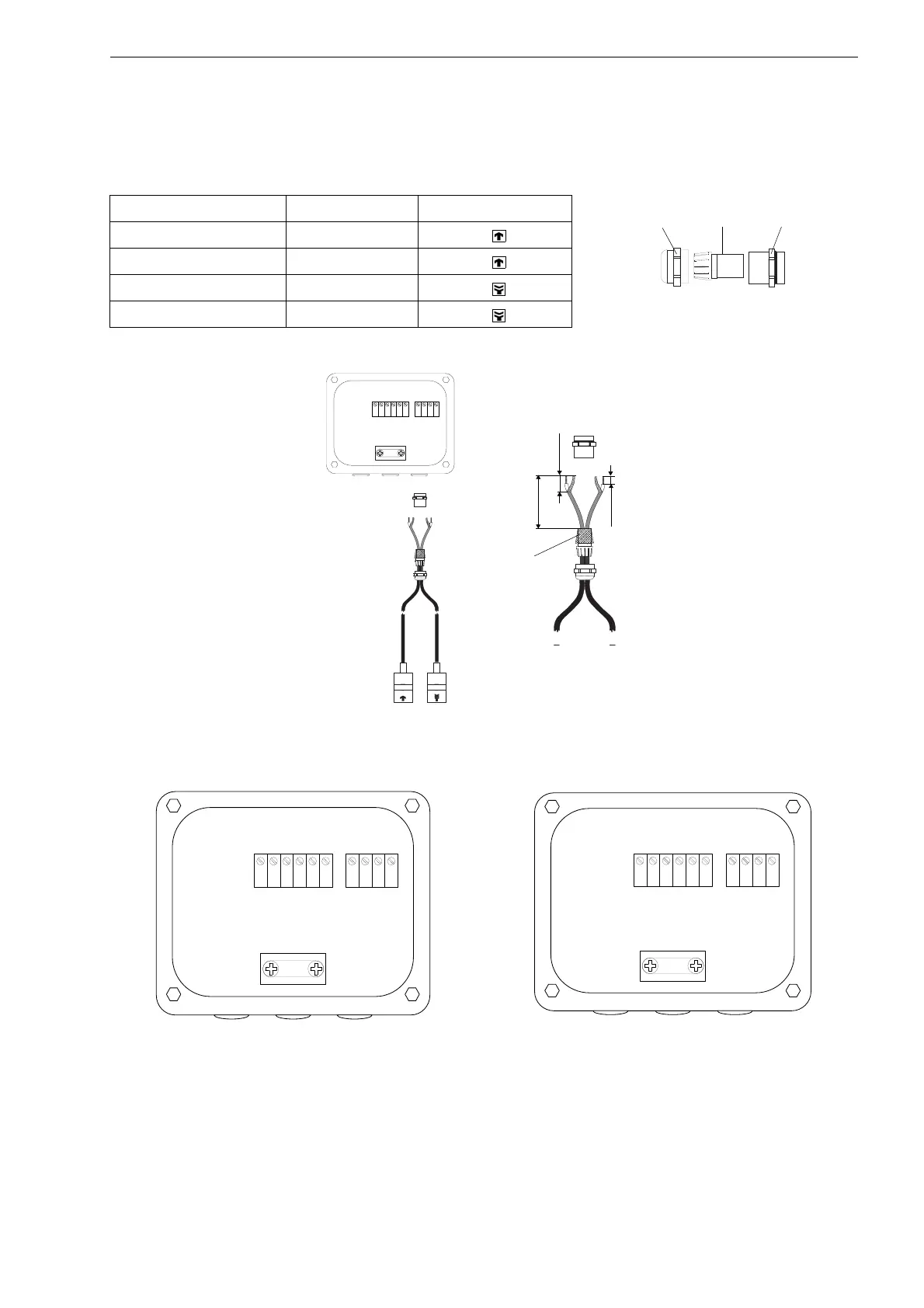

Tab. 7.9: Terminal assignment (KL1)
terminal (JBP2, JBP3) terminal (JB01) connection
TV V transducer (core)
TVS VS transducer (shield)
TRS RS transducer (shield)
TR R transducer (core)
Fig. 7.18: Cable gland
Fig. 7.19: Connection of the transducer cable
with plastic cable jacket and stripped cable ends
Fig. 7.20: Terminal designation (junction box JBP2, JBP3) Fig. 7.21: Terminal designation (junction box JB01)
cap nut
compression part basic part
100 mm
20 mm
10 mm
T V
T V S
T G
T G
T R S
T R
K L 2 K L 1
T V
T V S
T R S
T R
external shield,
brushed back
T V T V S
T G T G
T R S
T R
T V T V S
T R S
T R
K L 2 K L 1
T V T V S
T G
T G
T R S T R
V V S
R S R
K L 2 K L 1
