19.8 Deactivation of the Outputs
If the programmed outputs are no longer required, they can be deactivated. The configuration of a deactivated output is
stored and will be available if the output is activated again.

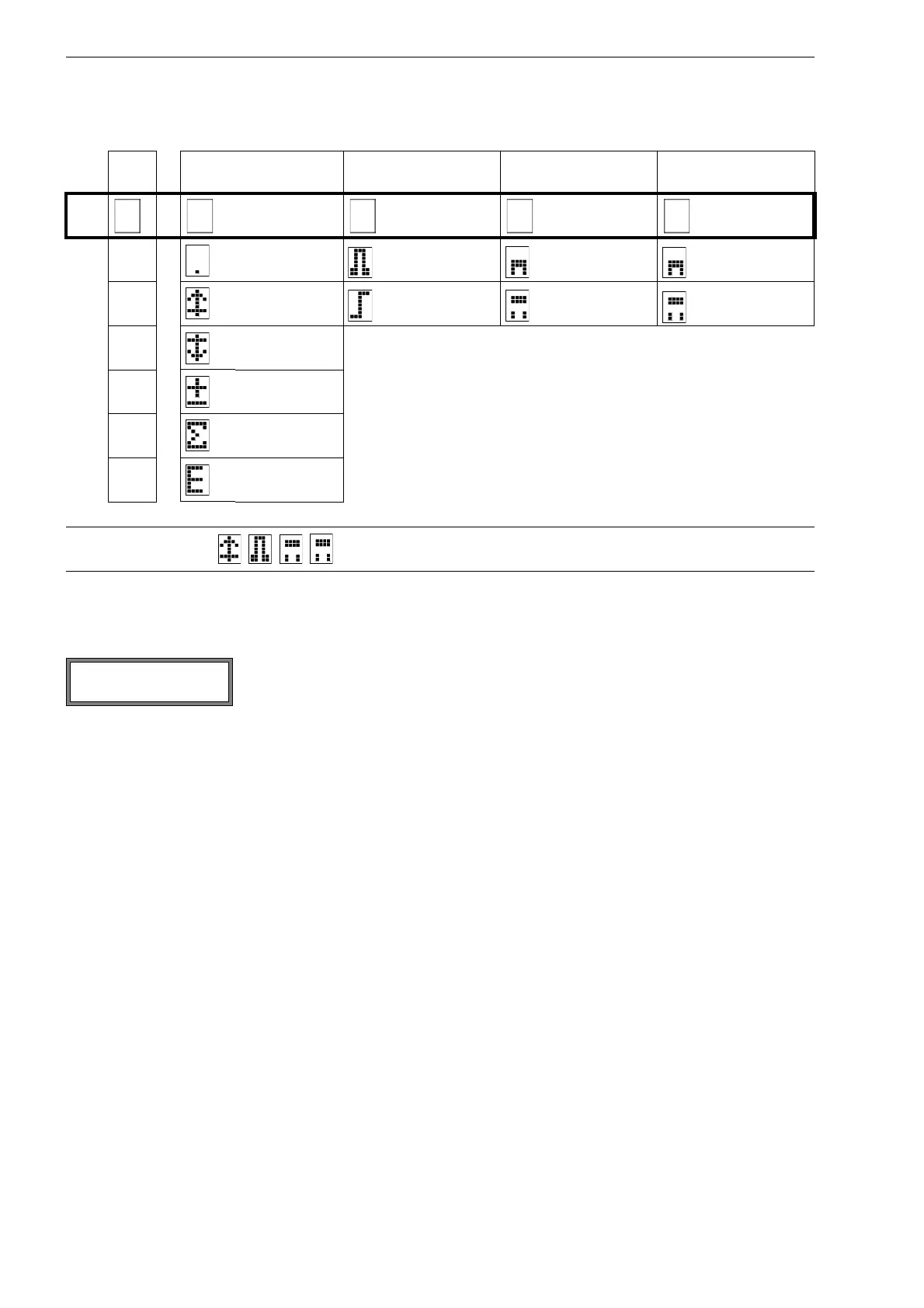

Tab. 19.6: Pictograms for the alarm state indication
Nr. func
(switching condition)
typ
(holding behavior)
mode
(switching function)
current state
R=
1 OFF NON-HOLD NO Cont. closed
2 MAX HOLD NC Cont. open
3 MIN
+→- -→+
QUANT.
ERROR
Example: R1 =
Select no in Output Options\Alarm Output to deactivate an output. Press ENTER.
Alarm Output
>NO< yes
