PIOX S70x 7 Connection
66 UMPIOX_S7V4-6-3EN, 2018-10-10
7.2 Temperature Probe
Temperature probes Pt100/Pt1000 (4-wire) can be connected to the inputs of the transmitter (optional).
For the direct connection of the temperature probe, see section 7.2.1 and Tab. 7.12.
For the connection with an extension cable, see section 7.2.2 and Tab. 7.12.
For the connection with a junction box, see section 7.2.3 and Tab. 7.12.
1
PIOX S709: Connection to the transmitter without cable gland
For the assignment and the activation of the temperature inputs see chapter 18.
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).

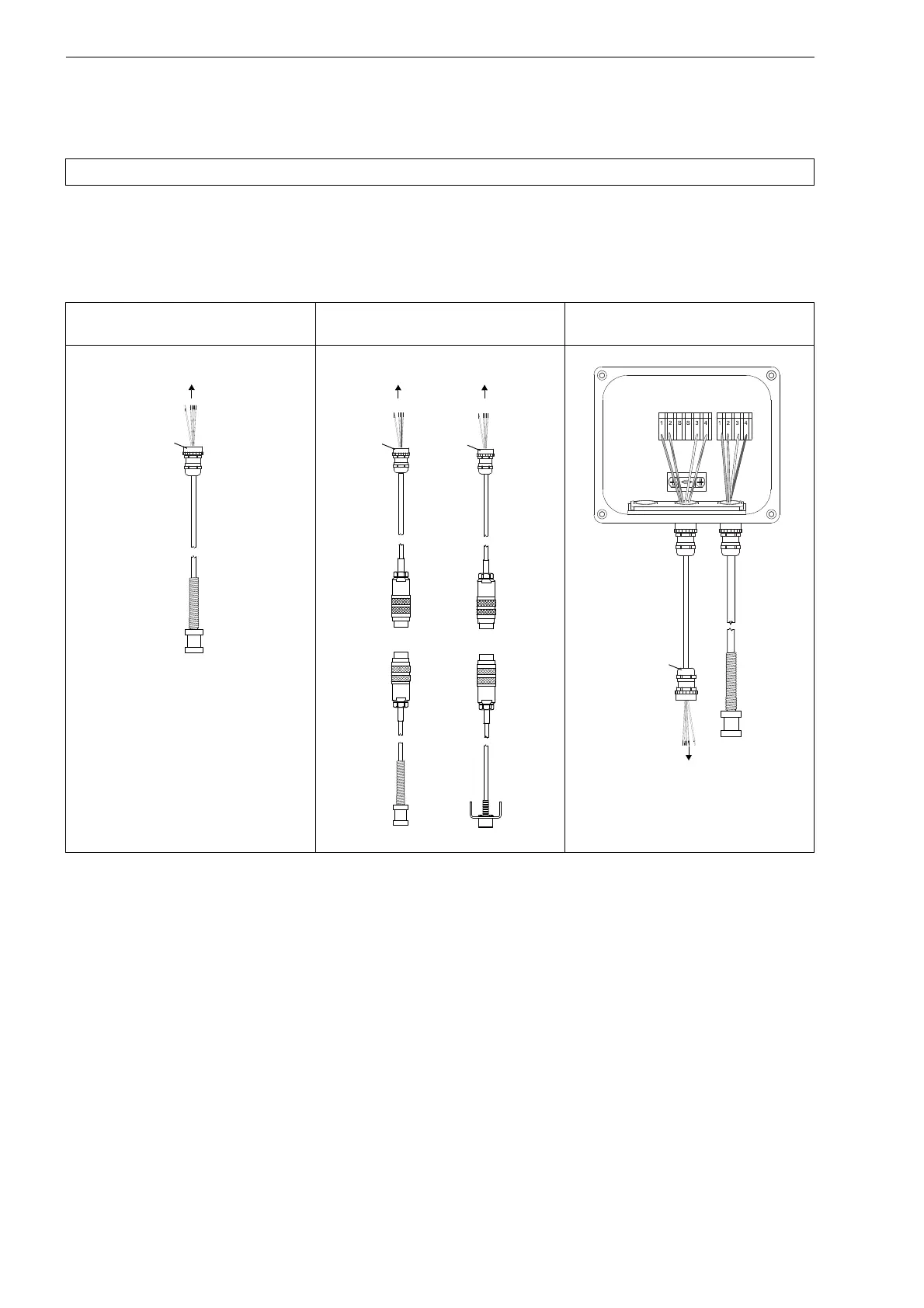

Tab. 7.12: Connection systems
direct connection connection with
extension cable
connection with
junction box
temperature probe
transmitter
1
extension cable
temperature probe
transmitter
transmitter
1
1
extension cable
temperature probe
transmitter
1
