7 Connection PIOX S70x
UMPIOX_S7V4-6-3EN, 2018-10-10 67
7.2.1 Direct Connection of the Temperature Probe
PIOX S704
Remove the second blind plug on the right for the connection of the temperature probe (see Fig. 7.24).
Open the cable gland of the temperature probe. The compression part remains in the cap nut (see Fig. 7.25 and Tab.
7.12).
Push the cable of the temperature probe through the cap nut, the compression part, the basic part, and the reducer.
Prepare the cable.
Insert the cable into the housing.
Screw the gasket ring side of the reducer tightly into the housing of the transmitter.
Tightly screw the basic part into the reducer.
Fix the cable gland by screwing the cap nut onto the basic part.
Connect the temperature probe to the terminals of the transmitter (see Fig. 7.1, Fig. 7.24 and Tab. 7.13).
PIOX S705
Remove the second blind plug on the right for the connection of the temperature probe (see Fig. 7.26).
Open the cable gland of the temperature probe. The compression part remains in the cap nut (see Fig. 7.27 and Tab.
7.12).
Push the cable of the temperature probe through the cap nut, the compression part, the basic part, the reducer and the
sealing ring. (Sealing ring: only for cable gland M20, not for cable gland 1/2 NPS.)
Prepare the cable.
Insert the cable into the housing.
Tightly screw the basic part into the reducer.
Fix the cable gland by screwing the cap nut onto the basic part.
Fix the transducer cable by tightening the cable gland with the ferrite nut.
Connect the temperature probe to the terminals of the transmitter (see Fig. 7.2, Fig. 7.26 and Tab. 7.13).
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).

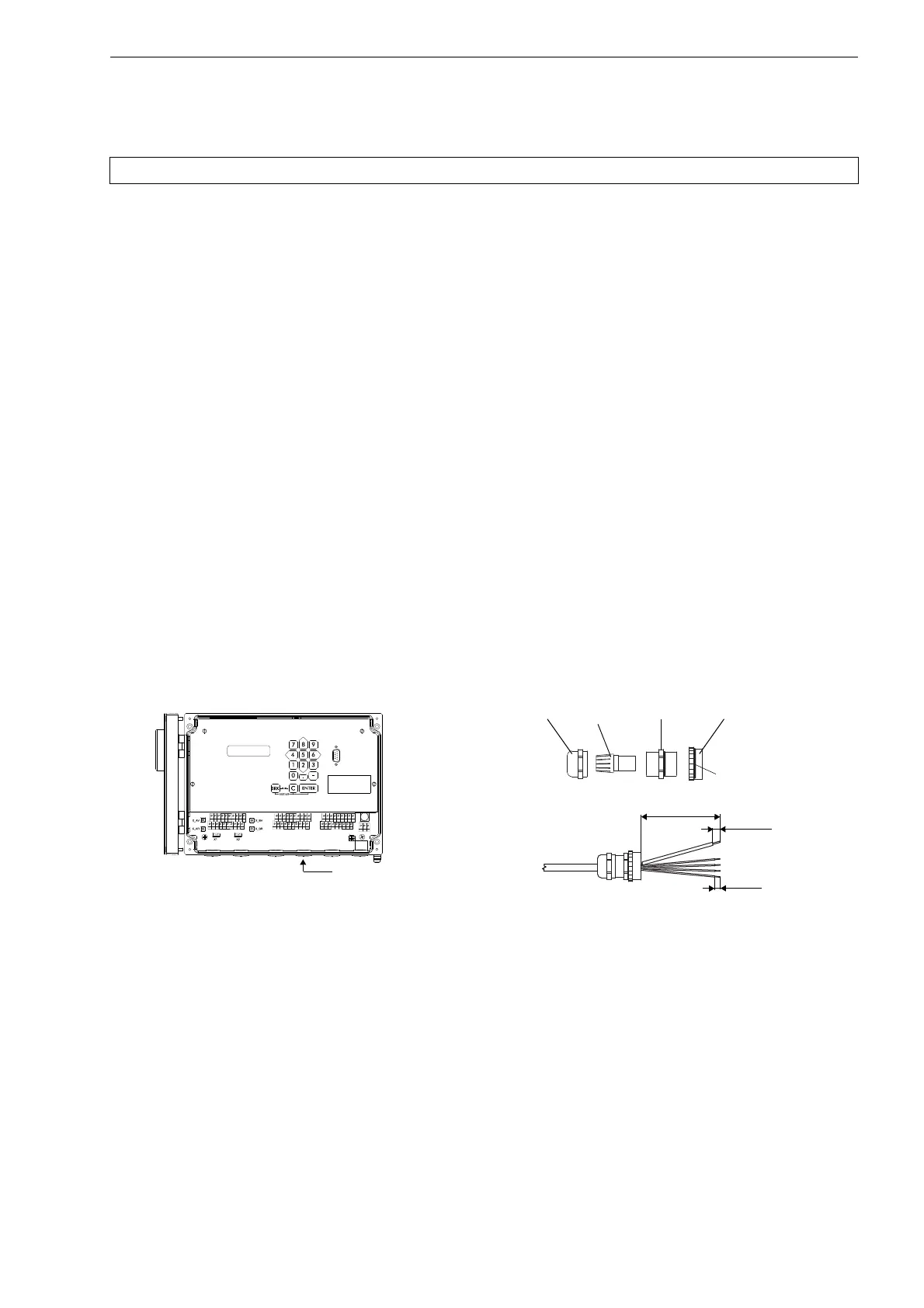

Fig. 7.24: Transmitter PIOX S704 Fig. 7.25: Cable gland and preparation
AVSAV
AGN
ARS
AR
BVSBV
BGN
BRS
BR
SA1
SA2
SA3
SA4
SB1
SB2
SB3
SB4
T1a
T1b
S2 T2a
T3a
T3b
S4
T4a
T2b
T4b
T1A
T1B
S1 T2A
T3A
T3B
S3
T4A
T2B
T4B
A+
B-
P1+ P2+
P4+
P5a
P6a P7a
P3+
101
103
P1- P2-
P4-
P5b
P6b
P7b
P3-
PE
N(-)
L(+)
temperature probe
cap nut
compression
part
basic part reducer
gasket ring side
110 mm
10 mm
7 mm
