FLIR CM174 USER MANUAL Document Identifier: CM174-en-US_AC

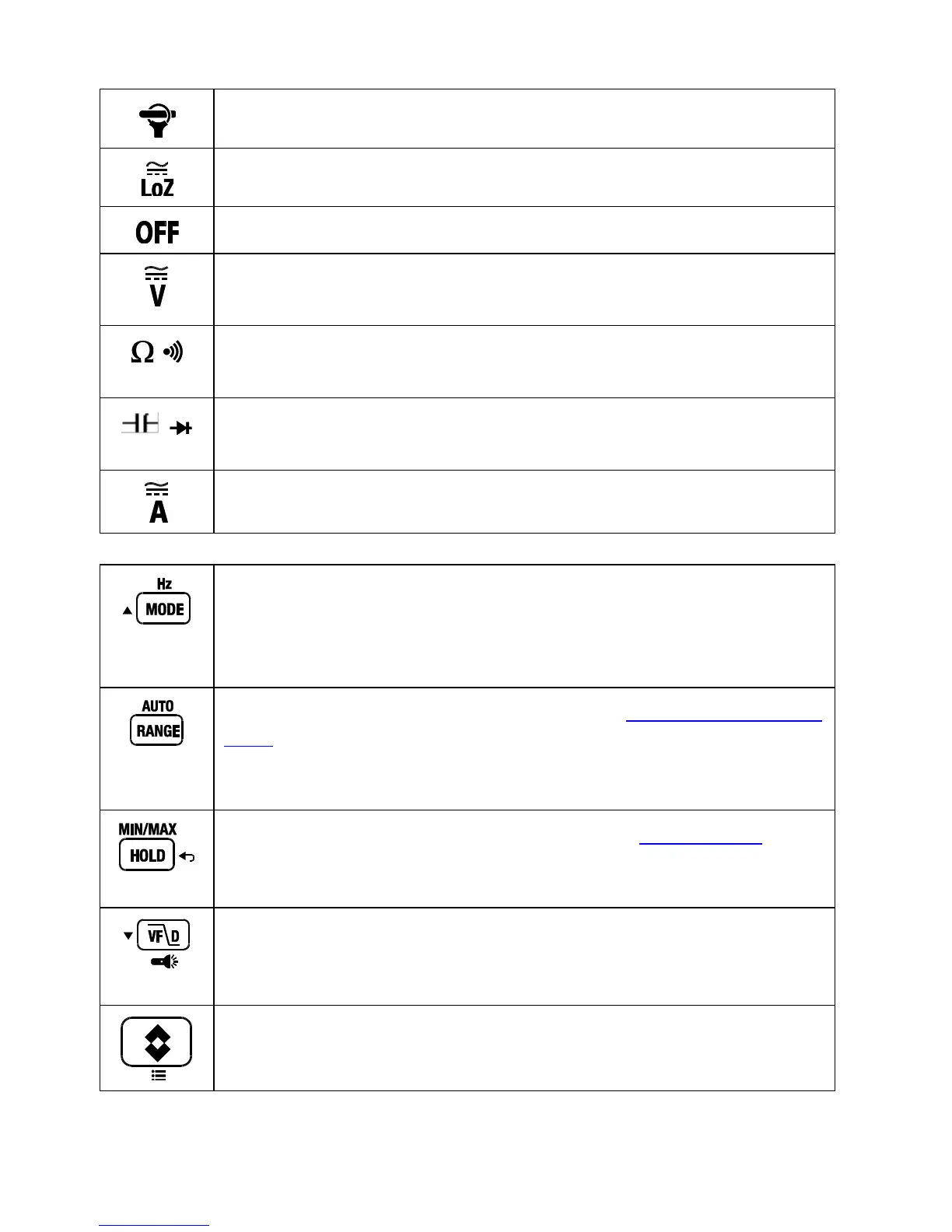

Select this position when connecting a FLIR Flex Clamp Adaptor.
Select this position to measure in the low impedance mode.
Select this position to switch the meter OFF (full power saving mode).
Select this position to measure AC/DC Voltage through the probe
inputs.
The meter can measure resistance and continuity through the probe
inputs. The type of measurement is selected by the MODE button.
The meter can measure capacitance and diode through the probe
inputs. The type of measurement is selected by the MODE button.
Amps AC/DC. The meter can measure current through the clamp jaws.
Select AC or DC in the Voltage/Current modes.
Select Diode or Capacitance; Continuity or Resistance.
Select Hz in AC Voltage, Current, or FLEX modes. Use ‘up’ arrow in
menus.
Select Auto or Manual range mode, see section 5.3 Auto/Manual range
mode
In Manual mode, press to change the range (scale); to return to Auto
range mode from Manual mode, press and hold for > 2 seconds.
Toggle normal and Data Hold modes, see section 5.4 Hold mode
Press for > 2 seconds to activate/deactivate MIN/MAX mode.
Use as RETURN/BACK button in menus.
Press to activate/deactivate VFD mode.
Press and hold for > 2 seconds to switch the Work Light ON/OFF.
Use ‘down’ arrow in menus.
Press to enter or exit the IGM Thermal Image mode.
Press and hold for > 2 seconds to access the Programming Menu.
