M-Series Joystick Control Unit
22 432-0003-00-10 Rev 150 — M-Series Operator’s Manual
Freezing an Image
To momentarily pause the IR video and freeze the current image on the screen,
double-click the puck (press it in twice quickly). The freeze icon displays. Any
other action with the JCU (moving the puck or pushing a button) will unfreeze the
image.
This feature is also available on the DLTV camera in the M-618CS model. It is not
available on the DLTV camera in other models.
JCU Display
The JCU display area generally shows the ID of the camera that the JCU is
connected to. It also shows various JCU status messages, and it shows the
countdown (3, 2, 1, 0) to access the Power Menu when the power button is
pressed and held. The Power Menu displays on the LCD so you can choose
various standby modes.
See “JCU Power Menu” on page 26 for details about using this menu.

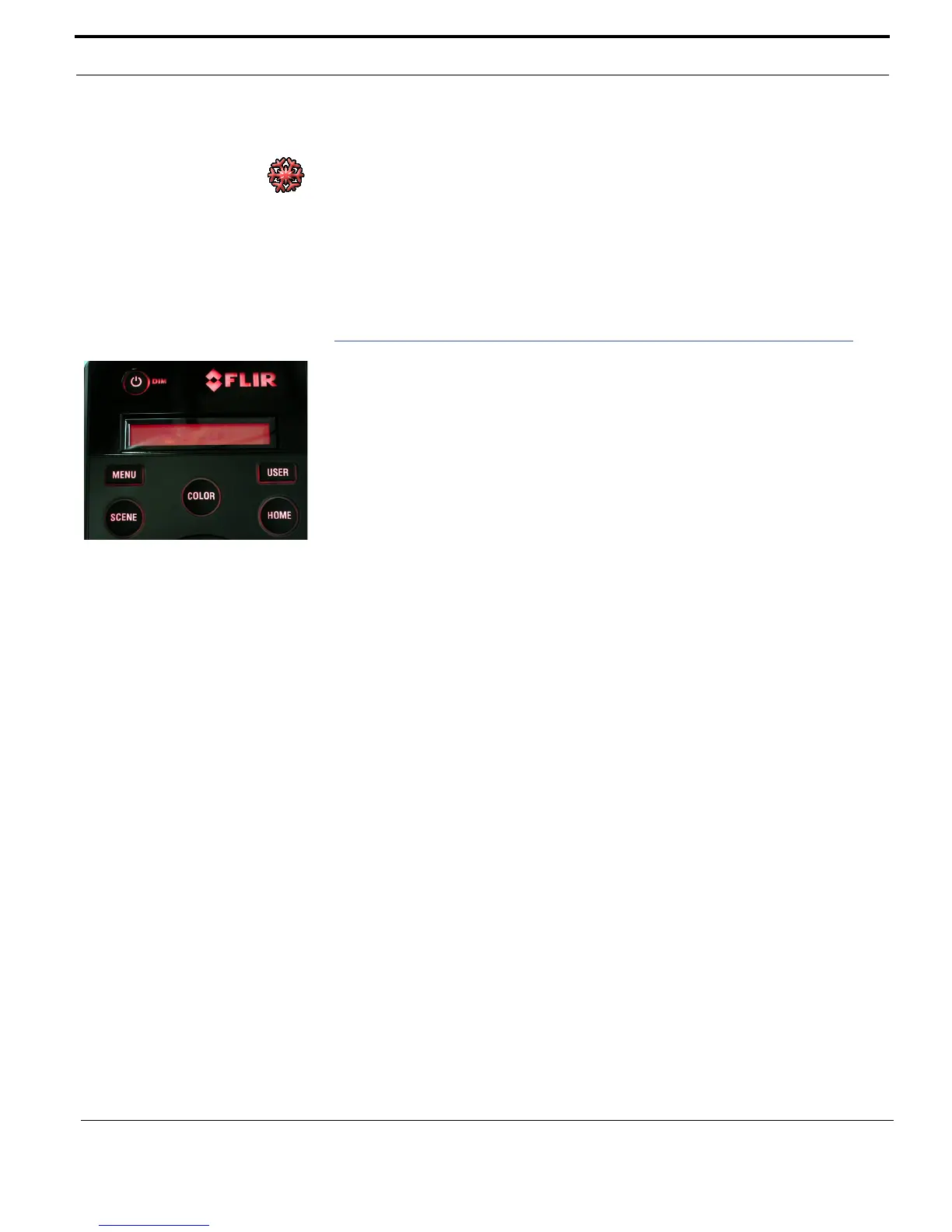

JCU powered on with backlit
