432-0003-00-10 Rev 150 — M-Series Operator’s Manual 65
M-Series Reference Information
List of Icons
Table 6.2 lists every icon that may display on the screen during various
operations, with a brief description of its meaning. Some icons display
permanently and some only display briefly. The display of some icons is affected
by settings on the Symbology Menu (see page 35). The last four icons in this table
display only on the camera model with stabilization.

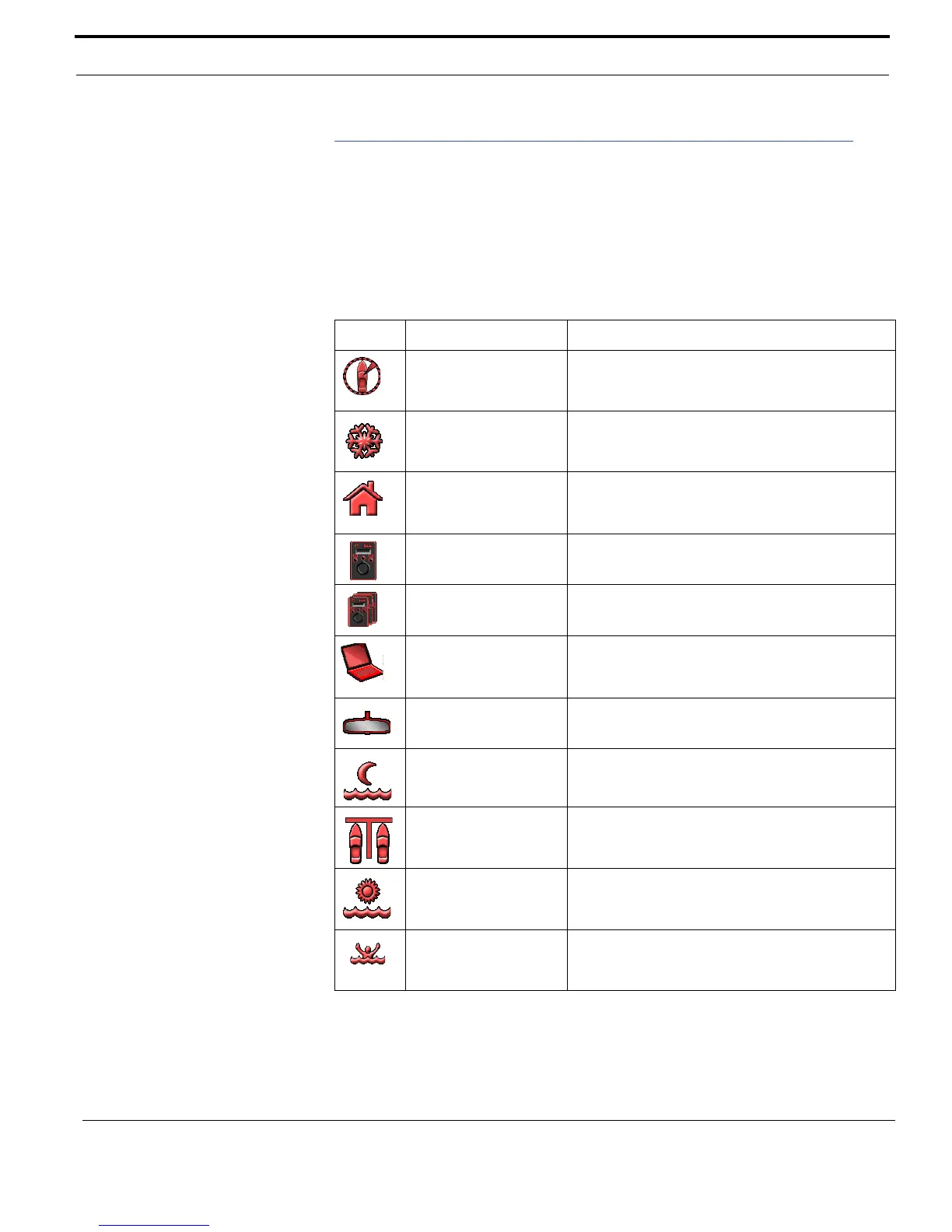

TABLE 6.2 Video Display Icons
Icon Name Description
Azimuth (Position) Shows the azimuth (or direction) of the camera
relative to the vessel. The shaded triangle shows
the approximate camera field of view (FOV).
Freeze The IR video has been momentarily paused. Move
the puck to resume the display. On the M-618CS
model, the DLTV video will also freeze.
Home
Indicates the camera is in the home position;
the icon flashes when a new home position is
set.
JCU
Indicates a single JCU is connected to the
camera
.
Multiple JCUs Indicates more than one JCU is connected to the
camera.
PC
Indicates a PC on the network has a
connection with the camera. You can use the
PC to control the camera.
Rearview Mode Indicates camera is in rearview mode so that
images are flipped horizontally.
Scene: Night Running One of four preset automatic gain control settings
optimized for use on the open water at night.
Scene: Night Docking One of four preset automatic gain control settings
optimized for use when the boat is docking at night.
Scene: Day Running One of four preset automatic gain control settings
optimized for use on the open water during the day.
Scene: Man Overboard One of four preset automatic gain control settings
optimized for providing visibility to small moving
objects.
