M-Series System Configuration
Mechanical Stabilization Feature
One of the specialized features that can be enabled or disabled with the on-
screen menus is mechanical stabilization. This feature is only supported on one
model (M-618CS). The on-screen menus look slightly different for this model. This
section describes the additional features available with stabilization.
The features affected by mechanical stabilization include:
• Addition of several new video icons, which are affected by the Set Symbology
options (see “Set Symbology” on page 35)
• Addition of Enable Point Mode on the main menu
• Addition of Point Mode on the User Programmable Button menu
• Addition of Enable (Disable) Stabilization on the System Setup menu
• Removal of Enable Ball-Down Installation from the System Setup menu; this
feature is not supported on the stabilized camera
• A new Video Icon Help Screen for stabilization icons
Video Screen Icons with Mechanical Stabilization
Mechanical stabilization adds four additional icons that can display on the screen
based on options selected. Otherwise, the screen icons and behavior are the
same as described on page 11.

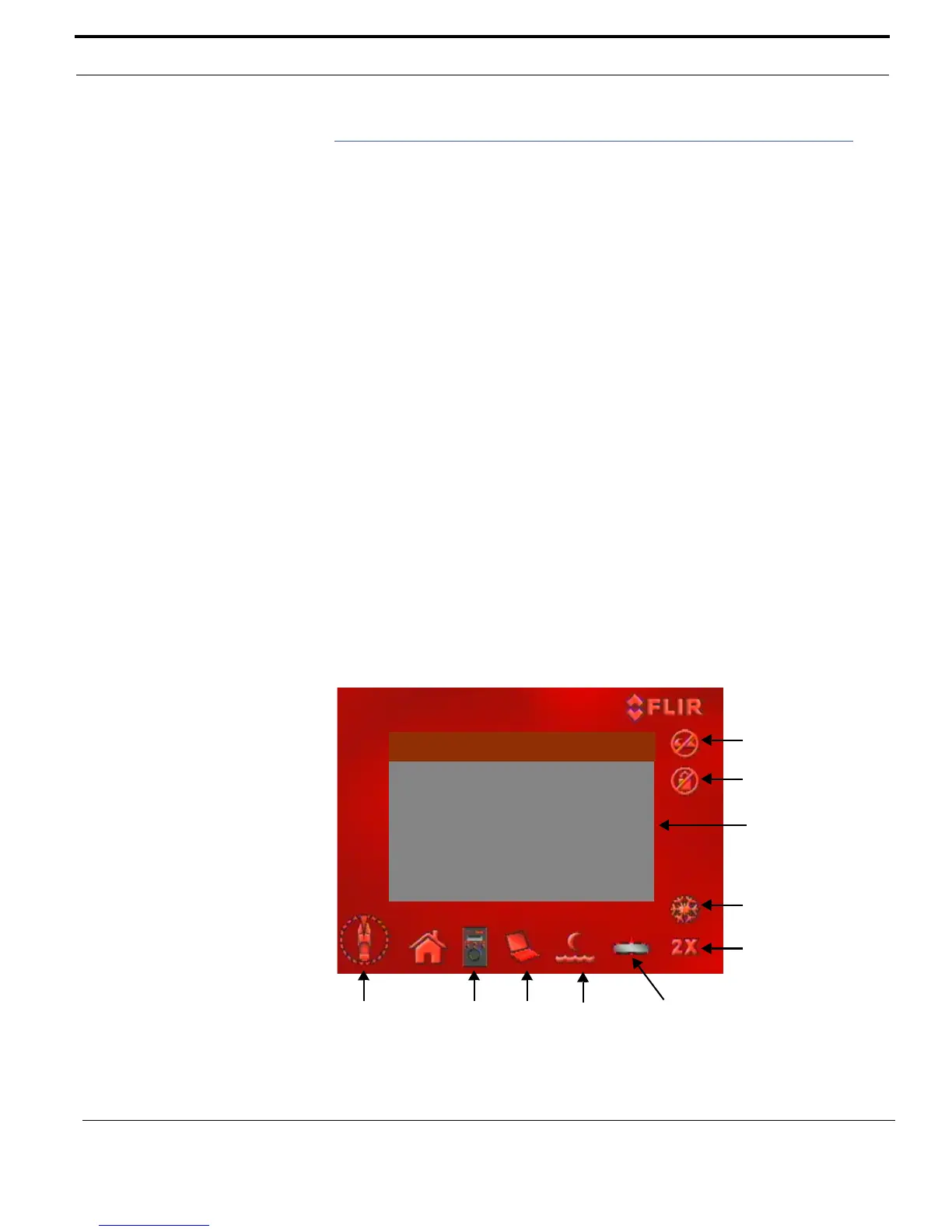

The following image of a screen illustrates the icons displayed by the system, as
well as main menu on a camera that supports mechanical stabilization.
On-Screen Menu
Position
Scene
JCU
Zoom Level
PC
Enable Point Mode
Video Setup
Set Symbology
User Programmable Button
System Setup
About/Help
Exit
<Press Puck to Select>
Rearview
Freeze
Point Mode is
Disabled
Stabilization is On
Home
To Next Page
