FLIR M300 Series User Manual

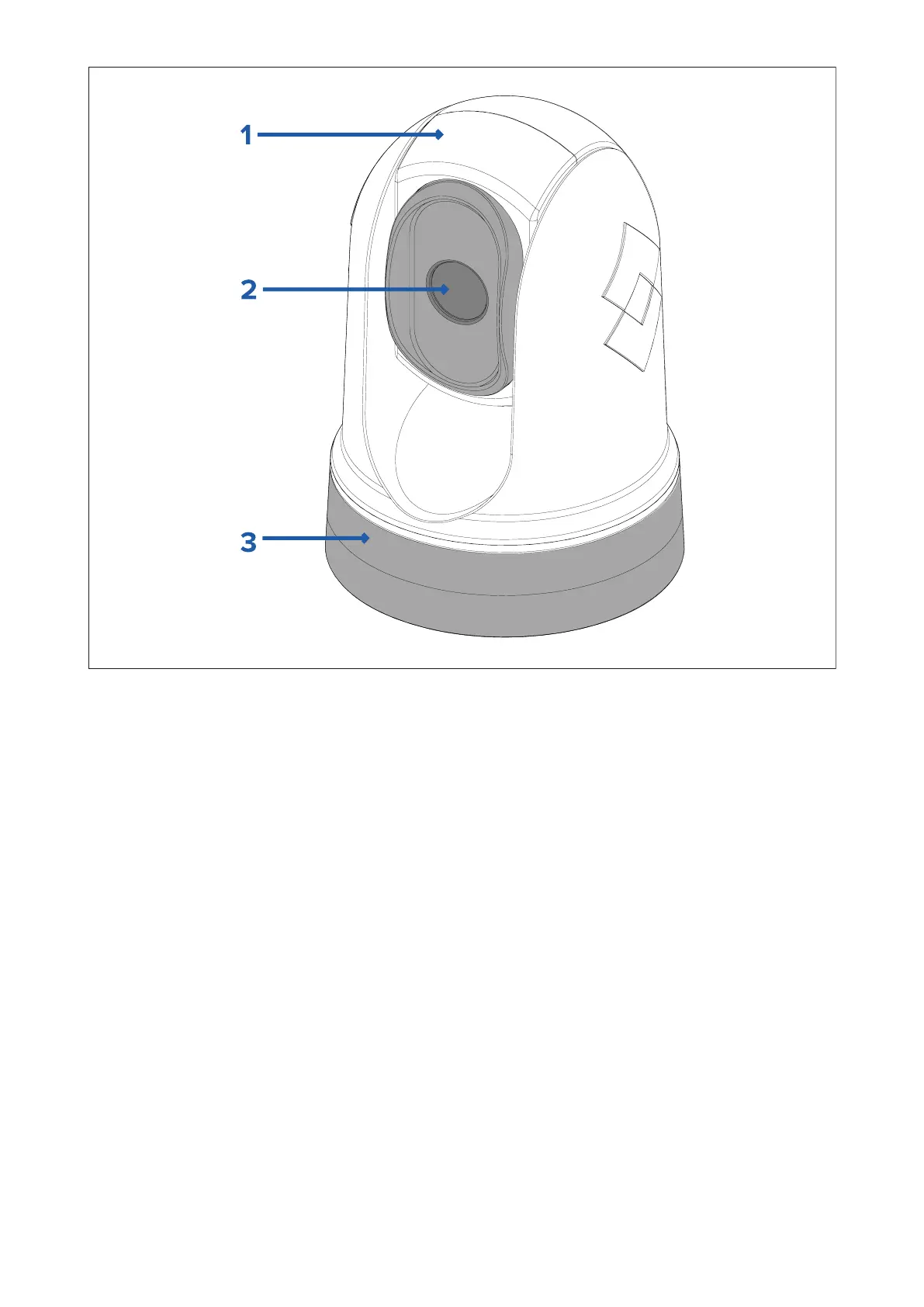

1.Tiltassembly.
2.Cameralenswindow.
3.Panassembly.
TheM300Seriessystemhasthefollowingkeyfunctionsandfeatures:
•IPconnectivitytosimplifyinstallationandsystemintegration.
•4simultaneousvideooutputs,includinganH264-encodedIPvideostream—formore
information,referto:p.47—Videoconnections
•Panandtiltoperationswithdedicatedjoystickcontrolunit,multifunctiondisplay(MFD),
orwebbrowser.
•2axismechanicalcamerastabilizationtosuitchangingconditions.
•Presetmodes(Scenes)optimizedforprevailingconditions.
•ColorThermalVision(CTV)blendingmode—blendsthermalandvisiblelightcolorvideo
feedsforenhancedidenticationofbuoys,vesselsandothertargetsatnight.
•MultiSpectralDynamicImaging(MSX)blendingmode—addsspecicdetailsfromthe
visiblelightvideofeedinrealtimetothethermalvideofeed,fordetectingandsharpening
theedgesofobjectsinthethermalvideofeed.
•ClearCruise™ObjectDetection—intelligentthermalanalyticstechnology;providesaudible
andvisualalertswhen“non-water”objectsareidentiedinthescene.(Requiresa
Raymarine®MFDrunningLightHouse™3.10softwareorlater.)
•ClearCruise™AugmentedReality—featureplaceslayersofdigitalinformationdirectlyover
thetopofthevideofeed.Vesseldataisusedtogenerateinformativetextandimages
(ags)thatoverlapreal-lifeobjects.(RequiresaRaymarine®MFDrunningLightHouse™
3.10softwareorlater.)
•Automaticwindowheaterstode-icethelenswindowincoldweather.
•12Vor24Vdcpower.
Documentandproductinformation
19

FLIR M300 Series Specifications

General

Thermal Sensor	Uncooled VOx Microbolometer
Pan/Tilt	360° continuous pan, +/- 90° tilt
IP Rating	IP66
Frame Rate	30 Hz
Input Voltage	12-24 VDC
Spectral Range	7.5 - 13.5 µm
Operating Temperature	-25°C to +55°C
Thermal Sensitivity	<50 mK
Focus	Automatic
Resolution	640 × 512 (M364), 320 × 256 (M332)
