FLIR M300 Series User Manual

•1xdigitalvideofeed,outputviatheHD-SDIconnector.
•1xanalogvideofeed,outputviathecompositevideoBNCconnectoronthecamera’s
powercable.

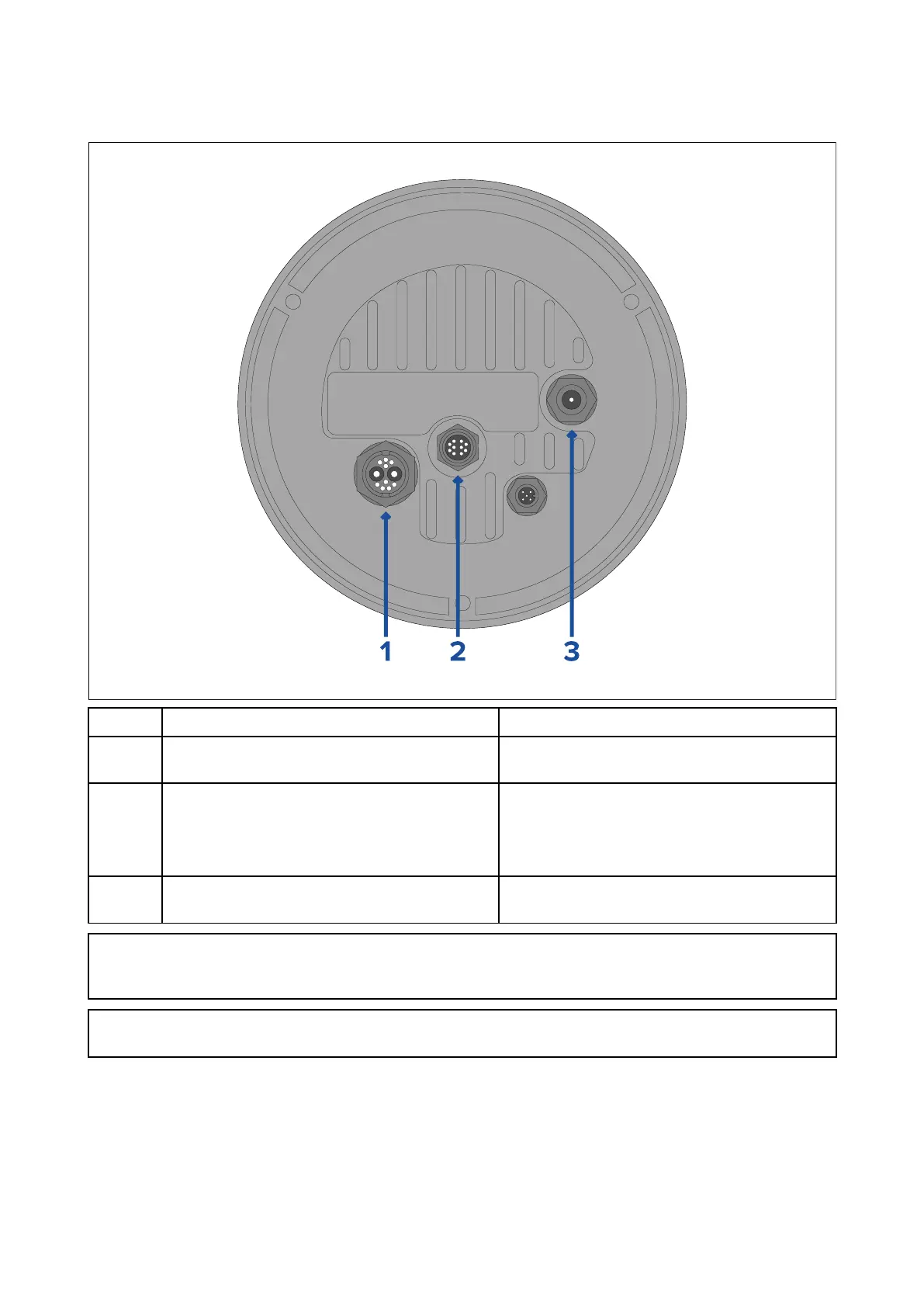

Connector
Videoformat
1
CompositevideoBNCconnectoron
camera’spowercable
Analogvideo.
2
RayNet(Ethernet)
•H264-encodedIPdigitalvideo(ONVIF
ProleS).
•MPEG-encodedIPdigitalvideo(via
webbrowseronly).
3
HD-SDIDigitalvideo,HD-SDIformat
(SMPTE-292M).
Note:ItisalsopossibletoconnecttoanHDMI-capabledisplayorothervideodevice,
viaasuitablethird-partyHD-SDItoHDMIconverter.Contactyourdealerorretailerfor
suitabledevicesandcables.
Note:ONVIFproleshelpyoutodeterminewhichIPdigitalvideodevicesarecompatible
withoneanother.FormoreinformationonONVIFproles,referto:www.onvif.org/proles/
Switchingbetweenthermalandvisiblelight(daylight)camerafeeds(dualpayload
cameravariantsonly)
Thedualpayloadcameravariantshaveseparatethermalandvisiblelight(daylight)video
feeds,andyoucanswitchbetweenthese2differentvideofeedsatanytimeusingaJCU,a
webbrowser,oraRaymarineLightHouse3MFD.
48

FLIR M300 Series Specifications

General

Thermal Sensor	Uncooled VOx Microbolometer
Pan/Tilt	360° continuous pan, +/- 90° tilt
IP Rating	IP66
Frame Rate	30 Hz
Input Voltage	12-24 VDC
Spectral Range	7.5 - 13.5 µm
Operating Temperature	-25°C to +55°C
Thermal Sensitivity	<50 mK
Focus	Automatic
Resolution	640 × 512 (M364), 320 × 256 (M332)
