FLIR M300 Series User Manual

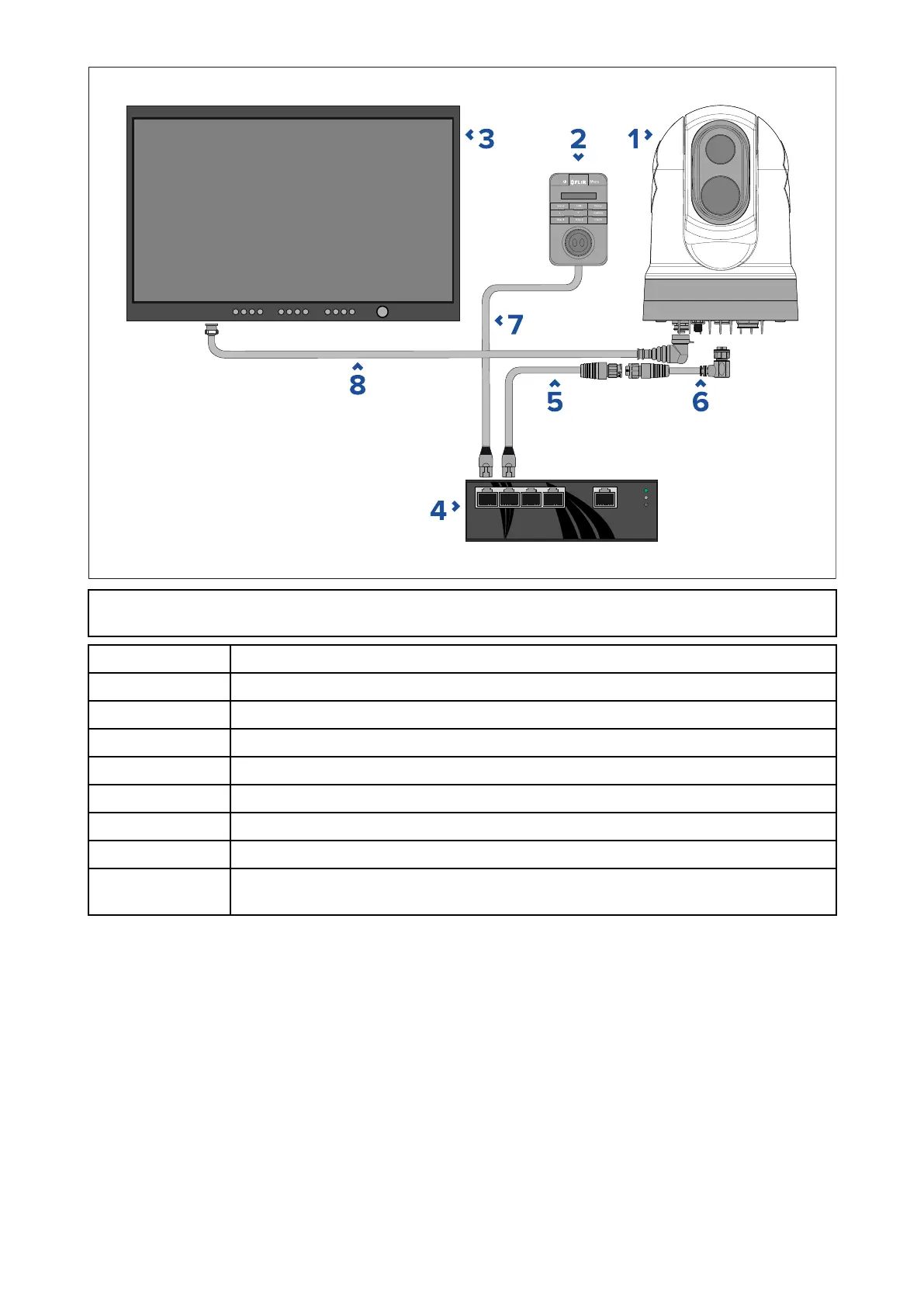

Note:Powerconnectionsarenotshowninthisillustration.Thecameraandtheother
devicesshownrequiretheirowndedicatedpowerconnection.
Description
1
M300Seriescamera
2
Joystickcontrolunit(JCU-2),availableseparately
3
Digitalvideo(HD-SDI)monitor,availableseparatelyfromthird-partyretailers
4
EthernetnetworkswitchwithPoE,availableseparately
5
RayNet-to-RJ45adaptercable(120mm/4.7in.)(suppliedwithcamera)
6
RayNet-to-RayNetcable,availableseparately
7
RJ45–to-RJ45cable,availableseparately
8
HD-SDIvideocable(BNCconnectors)(3m/9.8ft.)(suppliedwith
camera)
Single-camerasystemwithdigitalvideo(HDMI)monitorandJCU
Forthissystem,adevicerunningawebbrowserisnotrequired.Thecamera’svideo
feedisroutedthroughthecamera’sHD-SDIvideoconnectionviaathird-partyHD-SDIto
HDMIvideoconverter(notsupplied)toadigitalvideomonitor.Cameracontrolisprovided
byaJCU(availableseparately).
54

FLIR M300 Series Specifications

General

Thermal Sensor	Uncooled VOx Microbolometer
Pan/Tilt	360° continuous pan, +/- 90° tilt
IP Rating	IP66
Frame Rate	30 Hz
Input Voltage	12-24 VDC
Spectral Range	7.5 - 13.5 µm
Operating Temperature	-25°C to +55°C
Thermal Sensitivity	<50 mK
Focus	Automatic
Resolution	640 × 512 (M364), 320 × 256 (M332)
