FLIR M300 Series User Manual

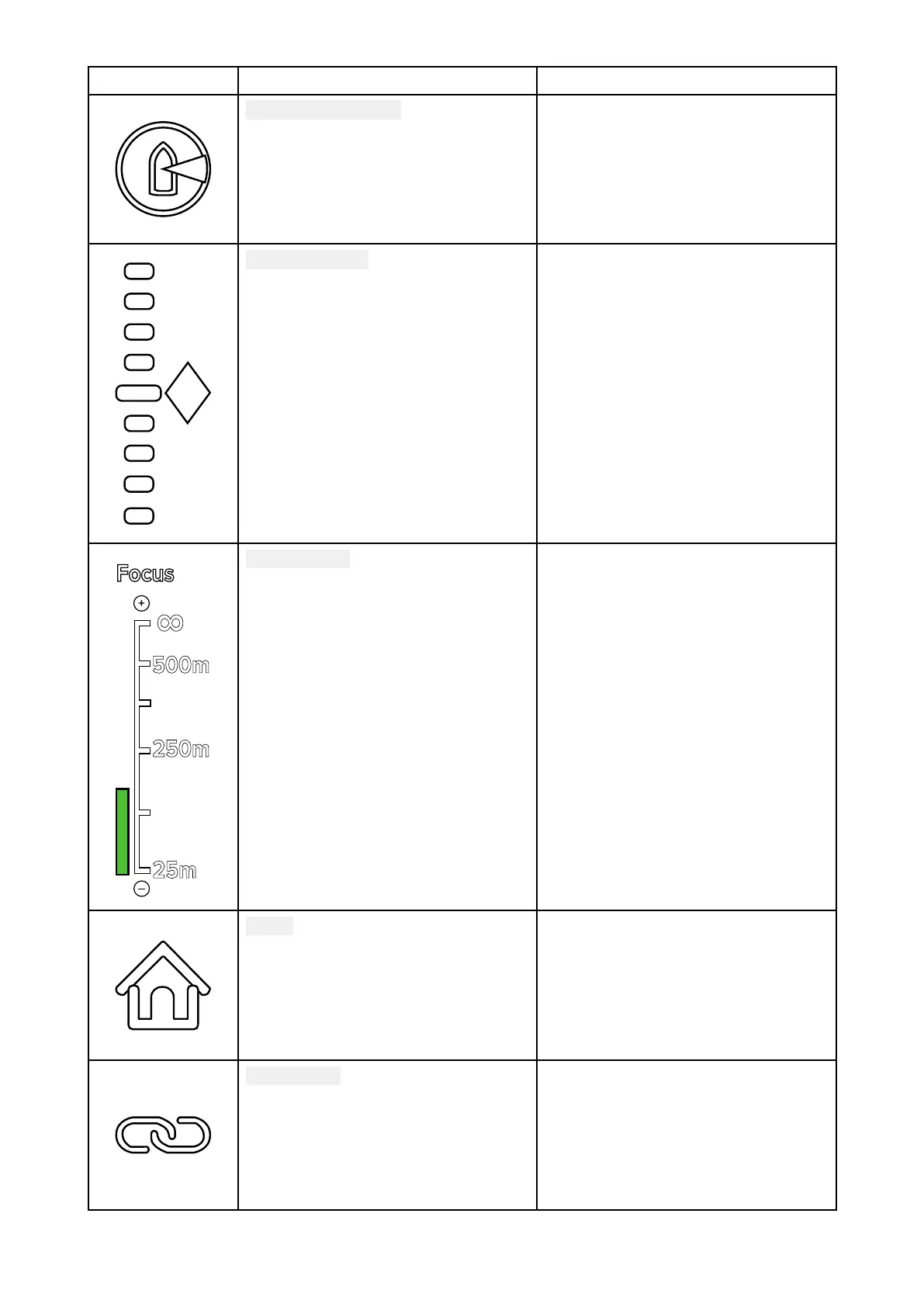

IconName
Description
Azimuth(Position)
Showstheazimuth(ordirection)of
thecamerarelativetothevessel.
Thetriangleshowstheapproximate
cameraeldofview(FOV).
Elevation(Tilt)
Showstheverticaltiltofthe
camera.Thetriangleshowsthe
approximatecameraposition.
FocusScaleShownwhenautofocusisinvoked
toindicatetheprogressofthe
operation.
HomeIndicatesthecameraisinthehome
position;theiconasheswhena
newhomepositionisset.
LockZoom
Lockthezoomofcameratothe
activepayload,wheneverpossible.
68

FLIR M300 Series Specifications

General

Thermal Sensor	Uncooled VOx Microbolometer
Pan/Tilt	360° continuous pan, +/- 90° tilt
IP Rating	IP66
Frame Rate	30 Hz
Input Voltage	12-24 VDC
Spectral Range	7.5 - 13.5 µm
Operating Temperature	-25°C to +55°C
Thermal Sensitivity	<50 mK
Focus	Automatic
Resolution	640 × 512 (M364), 320 × 256 (M332)
