Camera parts
8
8.3 View from the bottom

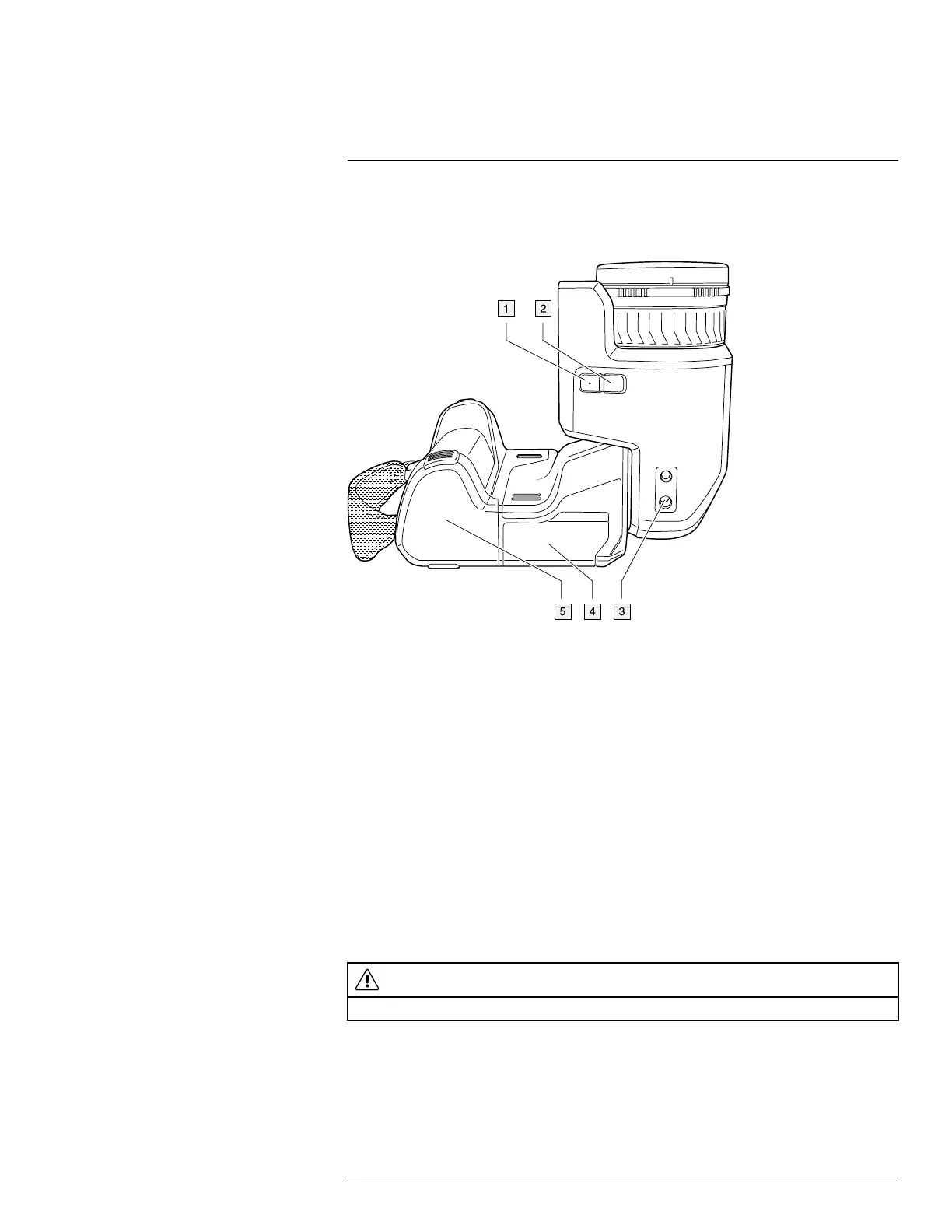

8.3.1 Figure
8.3.2 Explanation
1. Laser button.
2. Programmable button.
3. Tripod mount.
4. Cover for the connector compartment.
5. Battery.
8.4 Laser distance meter and laser pointer
8.4.1 General
The laser distance meter consists of a laser transmitter and a laser receiver. The laser dis-
tance meter determines the distance to a target by measuring the time it takes for a laser
pulse to reach the target and return to the laser receiver. This time is converted to a dis-
tance, which is displayed on the screen.
The laser receiver also works as a laser pointer. When the laser distance meter is on, you
will see a laser dot approximately at the target.
WARNING
Do not look directly into the laser beam. The laser beam can cause eye irritation.
#T810253; r. AA/42549/42549; en-US
