FLIR T530 User Manual

Annotating images
18
18.1 General
You can save additional information with an infrared image by using annotations. Annota-
tions make reporting and post-processing more efficient by providing essential information
about the image, e.g., conditions and information about where an image is taken.
Annotations are added to the image file, and can be viewed and edited in the image ar-
chive, and also when moving files from the camera to reporting software on the computer.
• You can set the camera to display annotation tools when an image is saved. Select
(Settings) > Save options & storage > Add annotation after saving.
• You can also add annotations to a saved image in the image archive.
Note This section describes the procedures for adding annotations to a saved image in
the image archive. Adding annotations when saving an image works in a similar way.
18.2 Adding a note
18.2.1 General
You can add a text note to the image file. Using this feature, you can annotate images by
entering free-form text.
18.2.2 Procedure
Follow this procedure:
1. Open the image in the image archive.
2. Push the navigation pad to display the top toolbar.
3. On the top toolbar, select the
icon and push the navigation pad.
4. On the right toolbar, select the
icon and push the navigation pad.

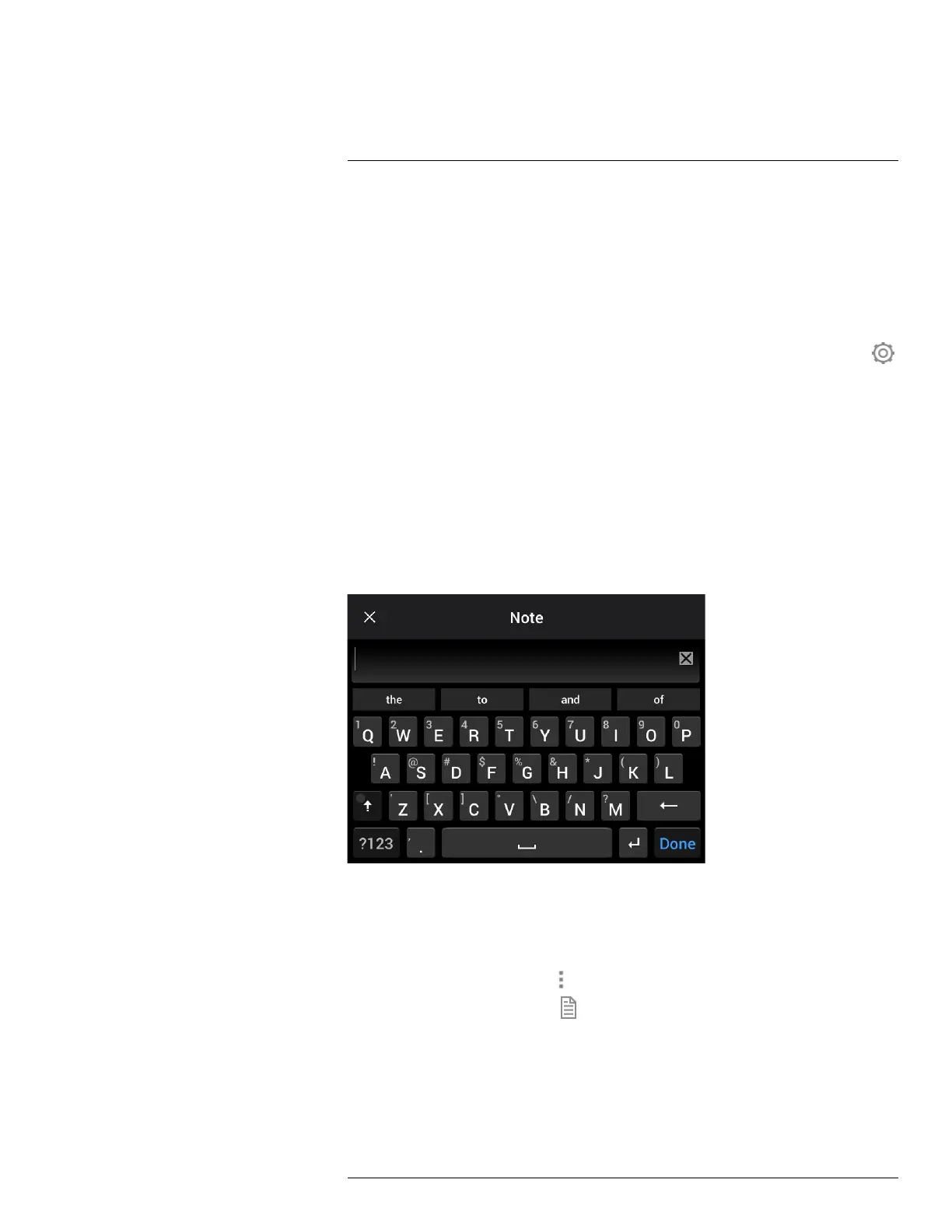

5. A soft keyboard is displayed, where you can enter text by touching the screen.
6. When completed, touch Done on the soft keyboard.
#T810253; r. AA/42549/42549; en-US
82

FLIR T530 Specifications

General

Resolution	320 x 240 pixels
Thermal Sensitivity	< 30 mK
Digital Zoom	1-4x continuous
Image Modes	Thermal, MSX, Picture-in-Picture
Storage	SD card
Image Frequency	30 Hz
Accuracy	±2°C or ±2% of reading
Digital Camera	5 MP
Laser Distance Meter	Yes
Wi-Fi	Yes
Video Recording	Yes
Video Output	HDMI
Minimum Focus Distance	0.15 m (0.49 ft)
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Temperature Range	0°C to +650°C
Field of View	24° × 18°
Display	4-inch LCD touchscreen
Battery Life	Approx. 4 hours
Focus	Continuous, one-shot contrast, manual
Spectral Range	7.5-14 µm
Weight	1.3 kg (2.9 lbs)
Connectivity	Wi-Fi, USB
Lens Options	14°, 24°, 42°
