FLIR T530 User Manual

Working with color alarms and isotherms17

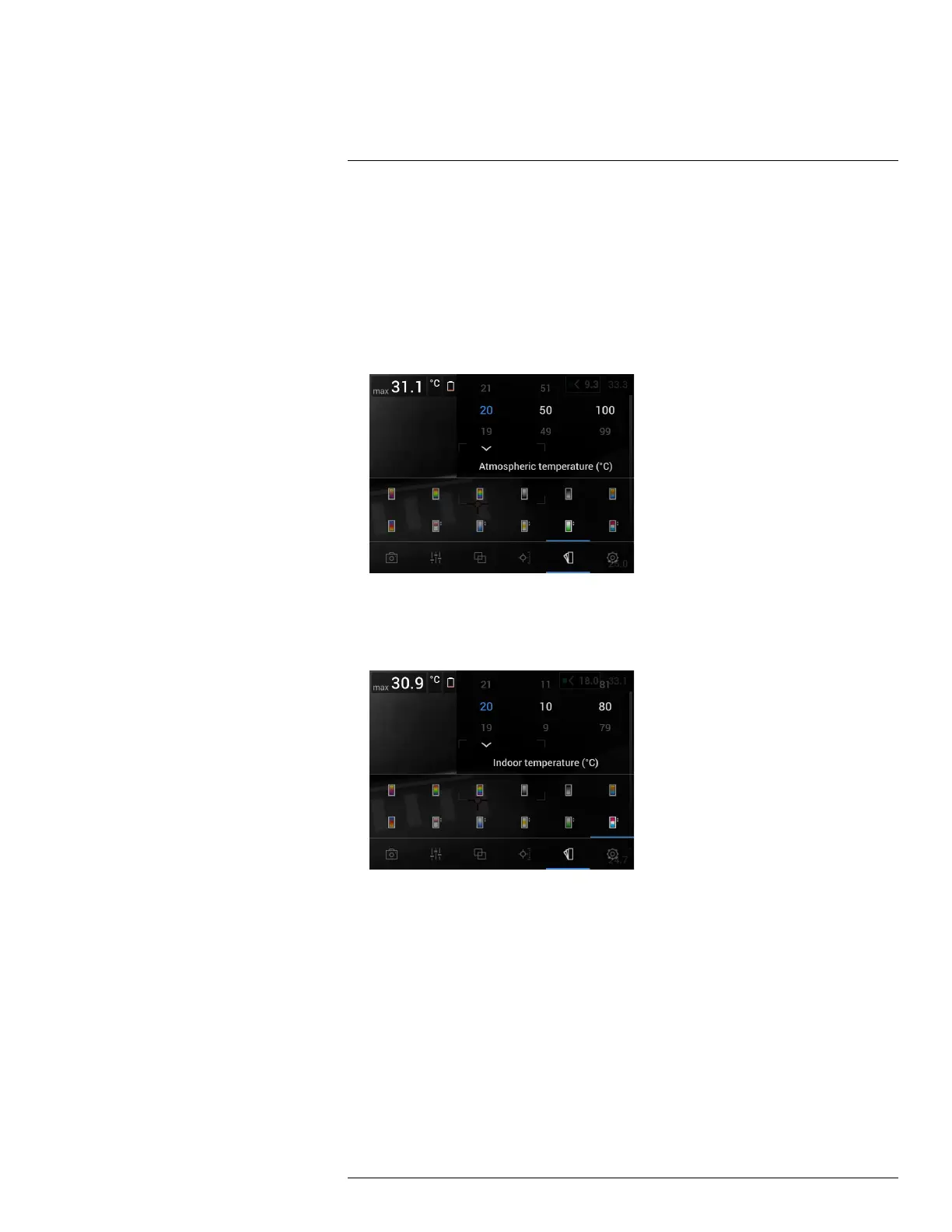

4. Push the navigation pad. This displays a dialog box where you can define the settings
for the alarm.
For the Condensation alarm, the following parameters can be set:
• Atmospheric temperature: The current atmospheric temperature.
• Relative humidity: The current relative humidity.
• Relative humidity limit: The relative humidity level at which you want the alarm to be
triggered. A relative humidity of 100% means that water vapor condenses from the
air as liquid water (= dewpoint). A relative humidity of about 70% or above can
cause mold.
For the Insulation alarm, the following parameters can be set:
• Indoor temperature: The current indoor temperature.
• Outdoor temperature: The current outdoor temperature.
• Thermal index: The insulation level (an integer between 0 and 100).
5. Push the navigation pad. This closes the dialog box.
#T810253; r. AA/42549/42549; en-US
81

FLIR T530 Specifications

General

Resolution	320 x 240 pixels
Thermal Sensitivity	< 30 mK
Digital Zoom	1-4x continuous
Image Modes	Thermal, MSX, Picture-in-Picture
Storage	SD card
Image Frequency	30 Hz
Accuracy	±2°C or ±2% of reading
Digital Camera	5 MP
Laser Distance Meter	Yes
Wi-Fi	Yes
Video Recording	Yes
Video Output	HDMI
Minimum Focus Distance	0.15 m (0.49 ft)
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Temperature Range	0°C to +650°C
Field of View	24° × 18°
Display	4-inch LCD touchscreen
Battery Life	Approx. 4 hours
Focus	Continuous, one-shot contrast, manual
Spectral Range	7.5-14 µm
Weight	1.3 kg (2.9 lbs)
Connectivity	Wi-Fi, USB
Lens Options	14°, 24°, 42°
