Handling the camera11
5. To check the status of the battery charging, do one of the following:
• If the camera is turned on: Place your finger at the top of the screen and swipe
down. The battery status is displayed on the swipe-down menu.
• If the camera is turned off: The battery charging indicator is temporarily displayed
on the screen.
6. It is good practice to disconnect the USB battery charger from the mains socket when
the battery is fully charged.
Note When closing the cover for the connector compartment, firmly press along the
edges of the cover to make sure that it closes tightly.
11.1.4 Charging the battery using a USB cable connected to a computer
Follow this procedure:

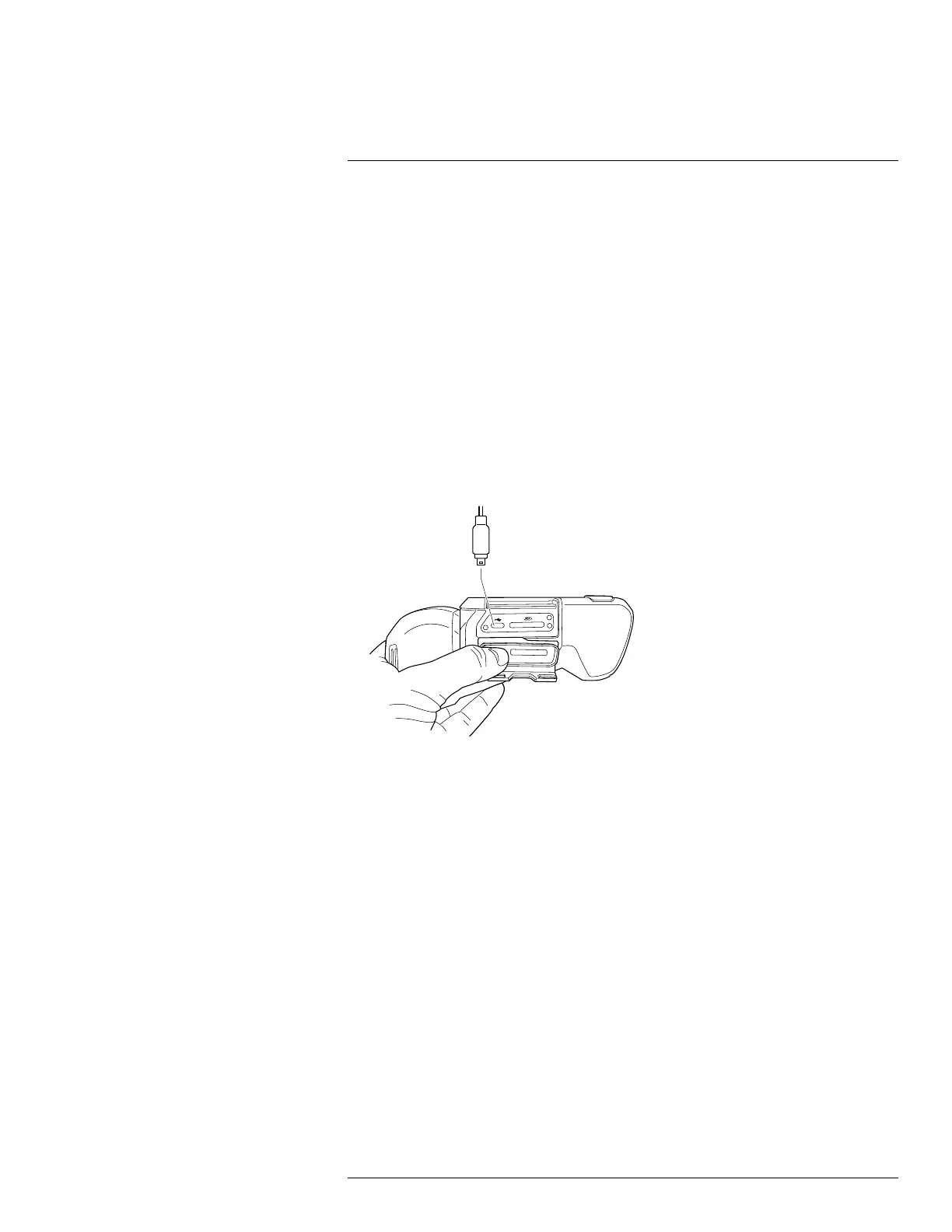

1. Open the cover for the connector compartment at the bottom of the camera.
2. Connect a USB cable to the USB-C connector in the connector bay. Connect the other
end of the USB cable to the computer.
Note
• To charge the camera, the computer must be turned on.
• Charging the camera using a USB cable connected to a computer takes considerably
longer than using the USB battery charger or the stand-alone battery charger. If the
camera is on, it may use more power than the computer provides.
• When closing the cover for the connector compartment, firmly press along the edges of
the cover to make sure that it closes tightly.
11.2 Installing and removing the camera battery
11.2.1 Installing the battery
Note Use a clean, dry cloth to remove any water or moisture on the battery before you
install it.
11.2.1.1 Procedure
Follow this procedure:
1. Push the battery into the battery compartment. The battery makes a click when it locks
in place.
#T810253; r. AA/42549/42549; en-US
29

FLIR T530 Specifications

General

Resolution	320 x 240 pixels
Thermal Sensitivity	< 30 mK
Digital Zoom	1-4x continuous
Image Modes	Thermal, MSX, Picture-in-Picture
Storage	SD card
Image Frequency	30 Hz
Accuracy	±2°C or ±2% of reading
Digital Camera	5 MP
Laser Distance Meter	Yes
Wi-Fi	Yes
Video Recording	Yes
Video Output	HDMI
Minimum Focus Distance	0.15 m (0.49 ft)
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Temperature Range	0°C to +650°C
Field of View	24° × 18°
Display	4-inch LCD touchscreen
Battery Life	Approx. 4 hours
Focus	Continuous, one-shot contrast, manual
Spectral Range	7.5-14 µm
Weight	1.3 kg (2.9 lbs)
Connectivity	Wi-Fi, USB
Lens Options	14°, 24°, 42°
