FLIR T530 User Manual

Working with color alarms and
isotherms
17
17.1 Color alarms
17.1.1 General
By using color alarms (isotherms), anomalies can easily be discovered in an infrared im-
age. The isotherm command applies a contrasting color to all pixels with a temperature
above, below, or between the set temperature levels. The camera also features isotherm
types that are specific to the building trade: condensation and insulation alarms.
You can make the camera trigger the following types of color alarms:
• Above alarm: This will apply a contrasting color to all pixels with a temperature above
the specified temperature level.
• Below alarm: This will apply a contrasting color to all pixels with a temperature below
the specified temperature level.
• Interval alarm: This will apply a contrasting color to all pixels with a temperature be-
tween two specified temperature levels.
• Condensation alarm: Triggers when the camera detects a surface where the relative hu-
midity exceeds a preset value.
• Insulation alarm: Triggers when there is an insulation deficiency in a wall.
17.1.2 Image examples

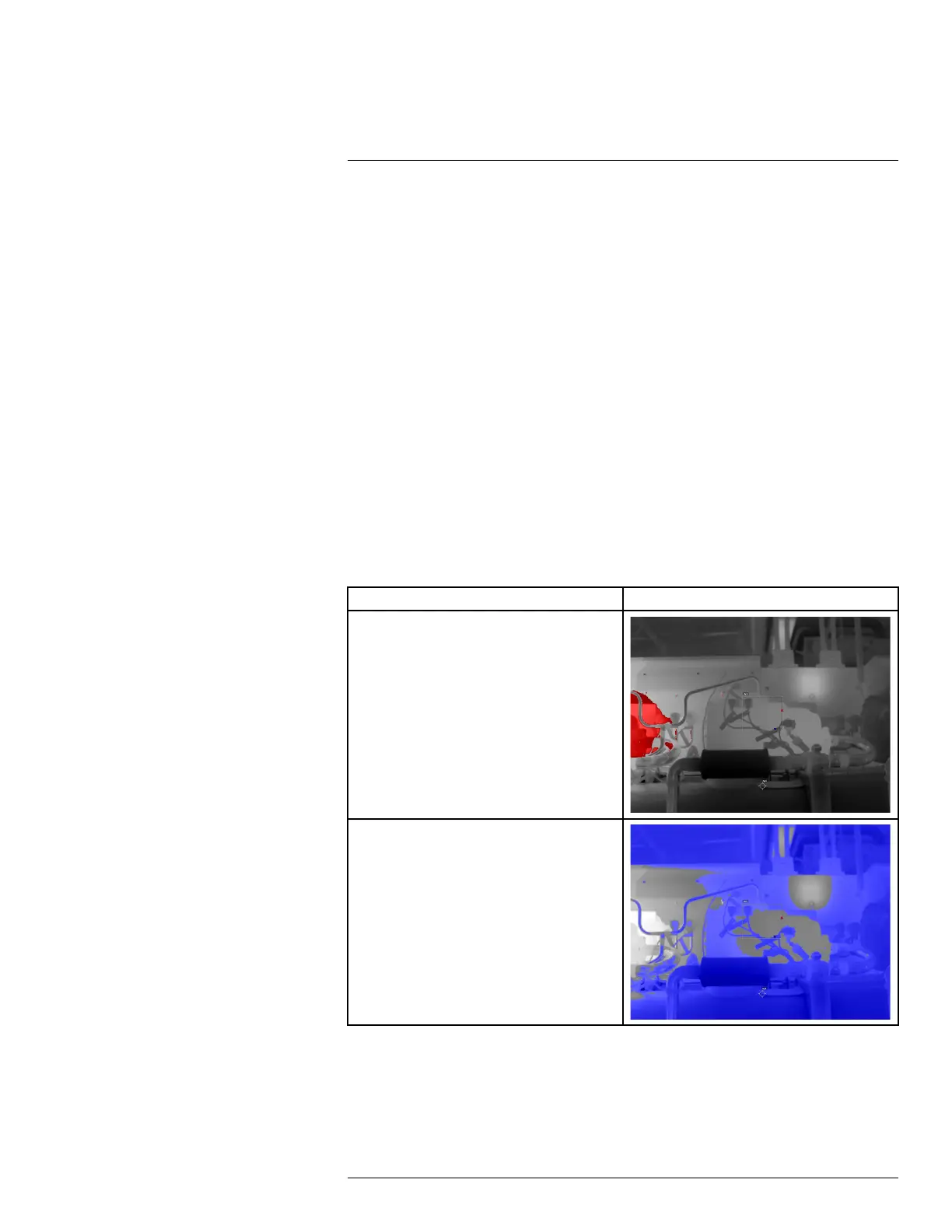

This table explains the different color alarms (isotherms).
Color alarm
Above alarm
Below alarm
#T810253; r. AA/42549/42549; en-US
78

FLIR T530 Specifications

General

Resolution	320 x 240 pixels
Thermal Sensitivity	< 30 mK
Digital Zoom	1-4x continuous
Image Modes	Thermal, MSX, Picture-in-Picture
Storage	SD card
Image Frequency	30 Hz
Accuracy	±2°C or ±2% of reading
Digital Camera	5 MP
Laser Distance Meter	Yes
Wi-Fi	Yes
Video Recording	Yes
Video Output	HDMI
Minimum Focus Distance	0.15 m (0.49 ft)
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Temperature Range	0°C to +650°C
Field of View	24° × 18°
Display	4-inch LCD touchscreen
Battery Life	Approx. 4 hours
Focus	Continuous, one-shot contrast, manual
Spectral Range	7.5-14 µm
Weight	1.3 kg (2.9 lbs)
Connectivity	Wi-Fi, USB
Lens Options	14°, 24°, 42°
