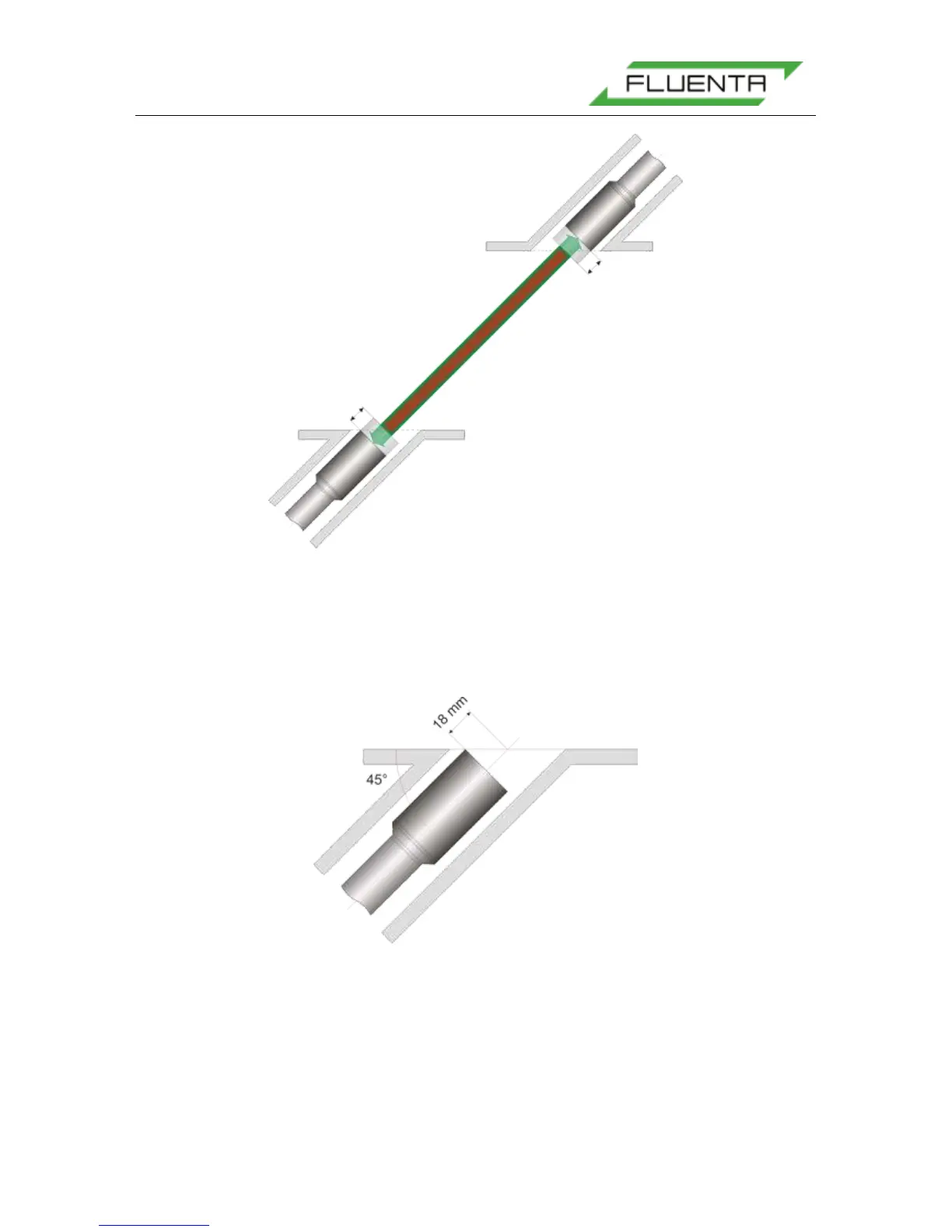

Figure 25: Retracted tranducers distance.
When the transducers are retracted, the transducer distance will increase from the original
distance (red arrow in Figure 25) to the new transducer distance (green arrow). This must be
updated in the flow computer.
5.3.2.2 45° installations
Figure 26: Edge-flush position for a 45° transducer holder.
For an installation where the transducer-holder angles are 45°, the retraction needed for
each transducer is 18mm (see Figure 26). The transducer distance must then be increased
by 36mm (2x18mm) in the flow computer configuration.
