fluenta FGM 160 - Figure 41: Passive Output Current Loop(S), Wiring

FGM 160 Installation and Hook-Up Instructions
62.120.001
Page 32 of 40
6.2.5.4.2 Passive Output Configuration
In passive output configuration, the current loops are powered from an external loop power
source (5V – 50V, see section 6.2.5.4.4, Load / Loop Voltage Limitations, for more details).
In passive output configuration:
- Current loop is connected between “CLx in” and “CLx out” terminals.
- The jumpers between “CLx out” terminals and CL-GND (installed by default) must be removed.

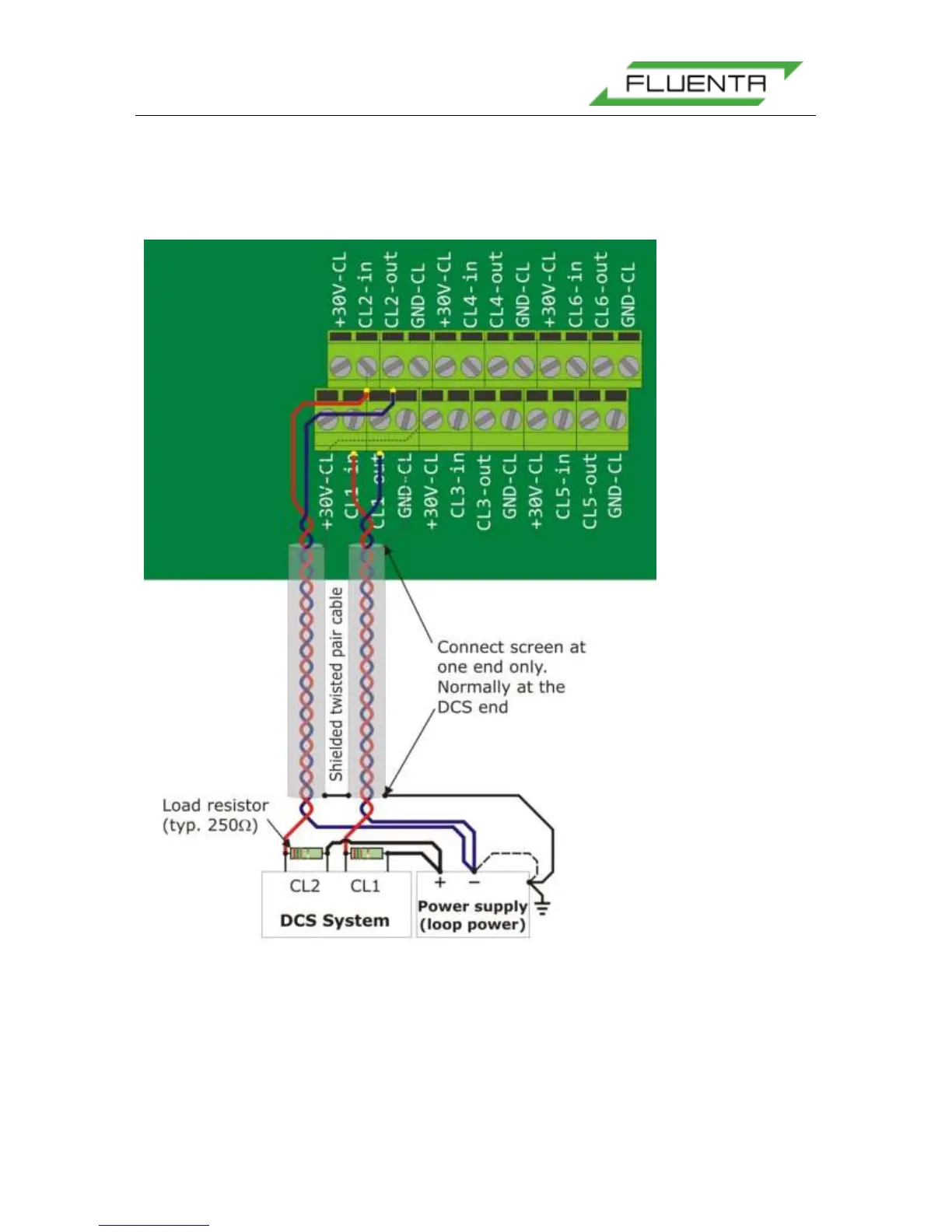

Figure 41: Passive output current loop(s), wiring
