FGM 160 Installation and Hook-Up Instructions
62.120.001
Page 37 of 40
6.2.5.6.1 Voltage / Current Limitations
Maximum voltage: 30V
Maximum current: 40 mA (output is protected by a 62mA internal fuse)

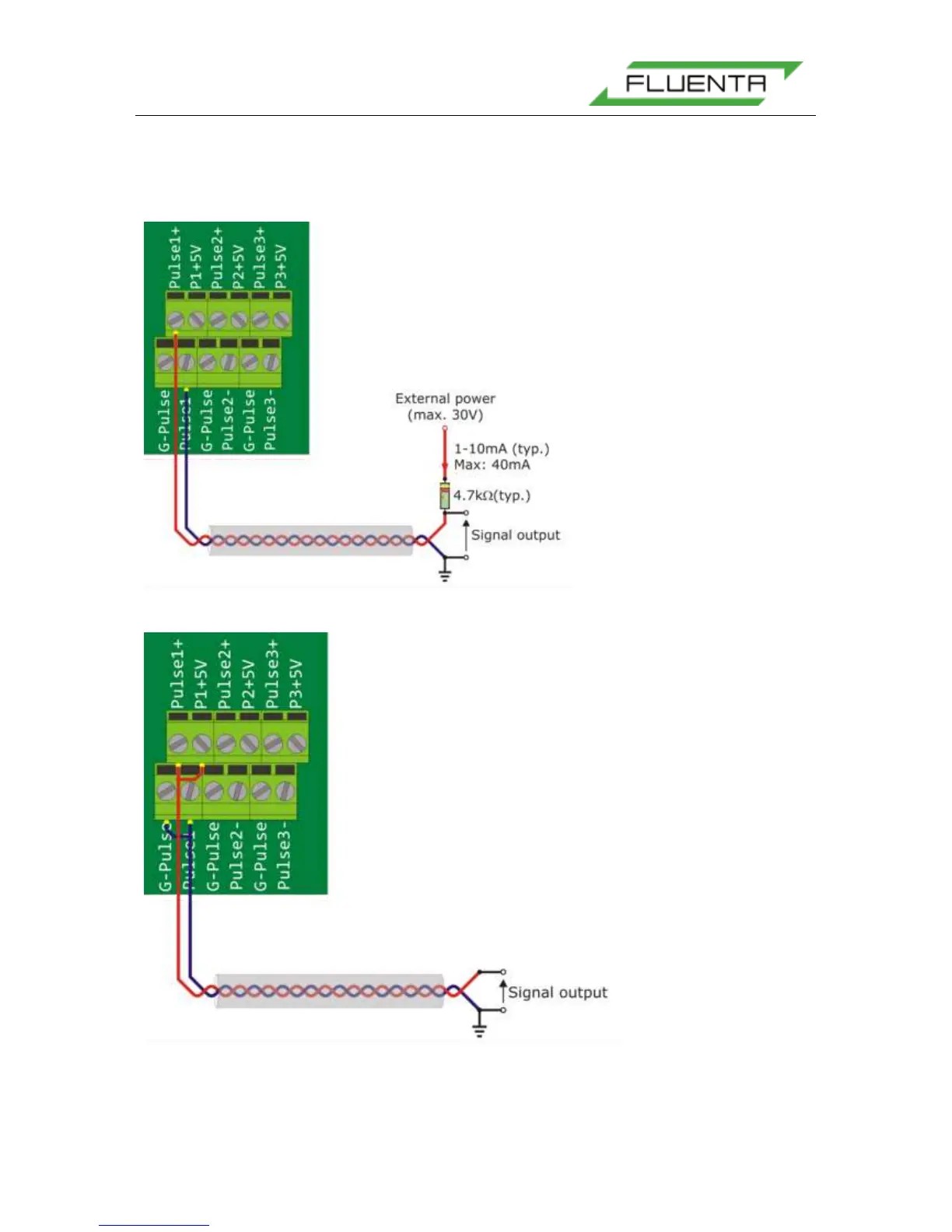

Figure 48: FGM 160 Pulse/frequency output connections
Figure 49: FGM 160 Pulse/frequency output connections. Without external power
